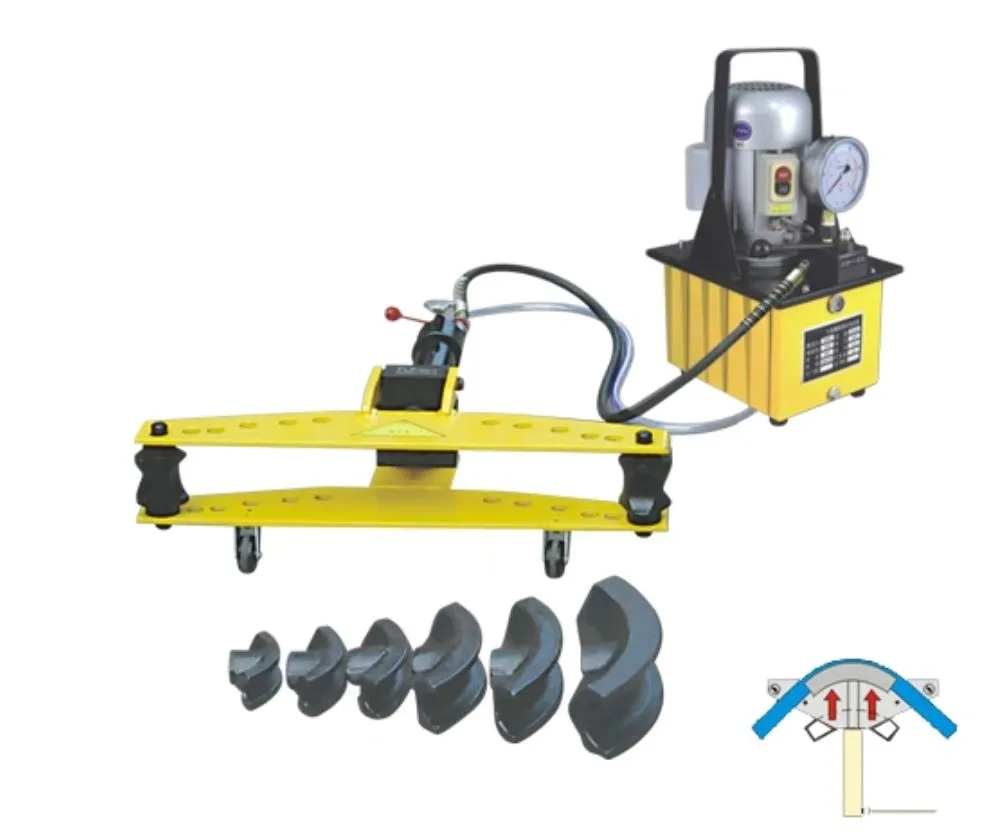

Aiko 230V / 23 Ton / 4 Hydraulic Pipe Bender with Pump HHB-630E | Model : PBD-HHW-4D

Specification of Bender:

• Max. Pressure (T) : 23
• Max. Stroke (mm) : 370
• Crimping Range (mm) : 21.5-88.5
• Pipe Bending Formers : 1/2. 3/4 .1.1-1/4.1-1/2.2.2-1/2.3.4
• Wall Thickness Of Pipe (mm) : 2.75-6
• G.W (Kg) : 174
• Volume (mm) : 1180 x 460 x 320

Specifications of HHB-630E Pump:

• Power (KW) : 0.75
• Voltage : 230V
• Low Pressure Stage (MPA) : 2
• High Pressure Stage (MPA) : 70
• Low Pressure Stage (L/Min) : 5
• High Pressure Stage (L/Min) : 0.7
• Oil Capacity (L) : 8
• Volume (MM) : 335 x 260 x 470
• Weight (Kg) : 27
