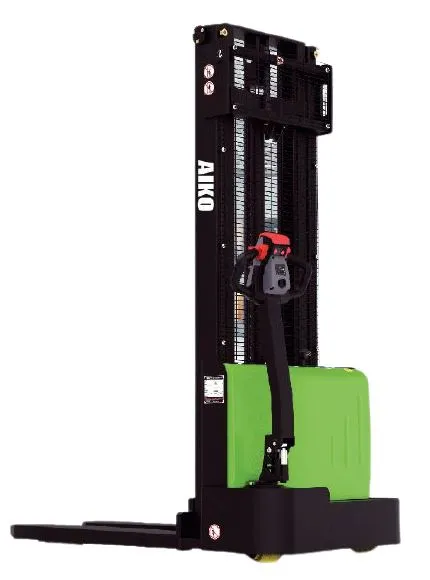

Aiko 2.7m Full Electrical Self-Propelled 1.5 Ton Stacker | Model : PT-AIKO152-2.7

Features :

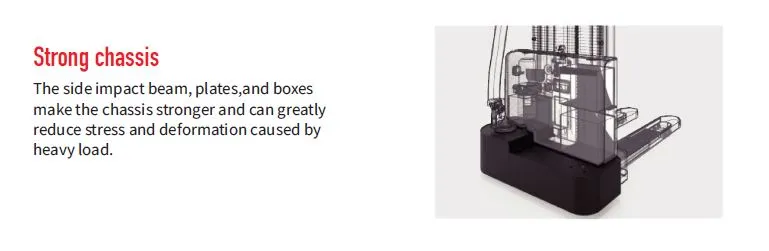

• Strong Chassis
• The side impact beam. plates. and boxes make the chassis stronger and can greatly reduce stress and deformation caused by heavy load.

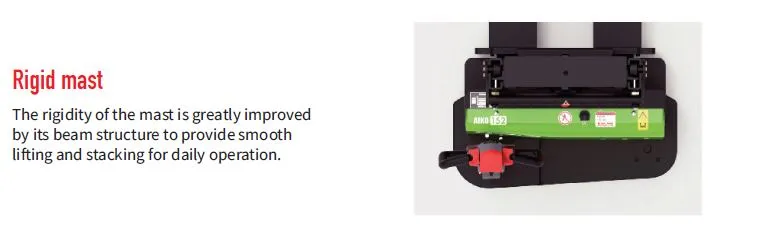

• Rigid mast
• The rigidity of the mast is greatly improved by its beam structure to provide smooth lifting and stacking for daily operation.

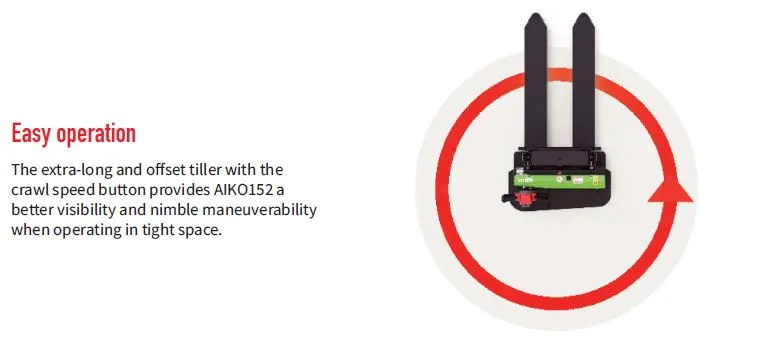

• Easy operation
• The extra - long and offset tiller with the crawl speed button provides AIKO152 a better visibility and nimble maneuverability when operating in tight space.

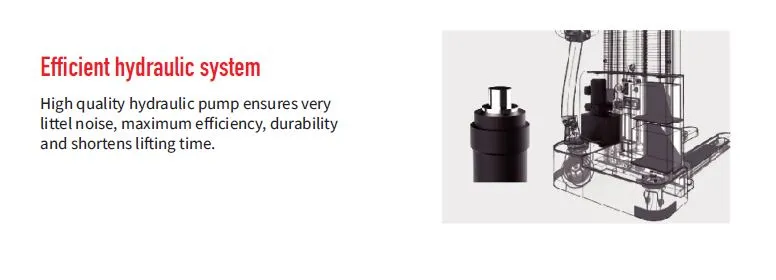

• Efficient hydraulic system
• High quality hydraulic pump ensures very little noise . maximum efficiency . durability and shortens lifting time.

Specifications :

• Distinguishing mark
• Manufacturer : Aiko
• Model designation : Aiko 152
• Drive unit : Electric
• Operator type : Pedestrian
• Rated capacity : 1500 kg
• Load Center Distance : 500 mm
• Load Distance : 808 mm
• Wheelbase : 1209 mm
• Weight
• Service Weight (include battery) : 550 kg
• Axle loading . laden driving side/ loading side : 912/1138 kg
• Axle loading . unladen driving side / loading side : 449/101 kg

• Battery
• Continuous running time : 4 hours
• Intermittent running time : Up to 24 hours
• Charging time : 2 hours

• Types. Chassis
• Tyre type driving wheels / loading wheels : PU/PU
• Tyre Size / Driving wheels (Diameter x Width) :210 x 70 mm
• Tyre Size / Driving wheels (Diameter x Width) :74 x 88 mm
• Tyre Size / Caster wheels (Diameter x Width) :130 x 55 mm
• Wheels. number driving. caster/loading ( x=drive wheels) : 1 1/4
• Track width. front. driving side : 616 mm
• Track width. rear. loading side : 433 mm
• Dimensions
• Height. mast lowered : 1956 mm
• Lift Height : 2715 mm
• Height. mast extended : 3271 mm
• Height draw bar in driving position min./mzx : 750/1340 mm
• Height of wheel arms : 90 mm
• Lowered height : 1700 mm
• Overall length : 526 mm
• Length to face of forks : 880 mm
• Overall width : 60/190/1150 mm
• Fork dimensions : 710/795 mm
• Fork carriage width : 600/685 mm
• Ground clearance. center of wheelbase : 37 mm
• Aisle width for pallet 100 x 1200 cross ways : 2036 mm
• Aisle width for pallet 800 x 1200 length ways : 2136 mm
• Turning radius : 1392 mm
• Performance data
• Travel Speed. laden/ unladen : 3.7/4.0 km/h
• Lifting Speed. laden/ unladen : 0.08/0.135 m/s
• Lowering speed. laden/ unladen : 0.105/0.097 m/s
• Max. grade ability. laden/ unladen : 3/10 %
• Service brake type : Electromagnetic
• Electric - engine
• Drive motor rating S2 60 min : 0.75 kW
• Lift motor rating at S3 15 % : 2.2 kW
• The maximum allowed size battery : 260 x 165 x 170 mm
• Battery voltage/ nominal capacity K5 : 2 x 12/80 V/Ah
• Batter weight : 2 x 19.6 kg
• Addition data
• Type of drive control : DC

  *Please take note only for open pallet
