Aiko 40mm X 100mm 415V Rebar Threading Rolling Machine | HGS Type #S50A | Model : RBB-S50A

Working Effects:

• Mainly used for thread rolling of building reinforcement bars in construction
• Can process rebars up to 40mm.
• Processing length is 100mm.

Product Advantages :

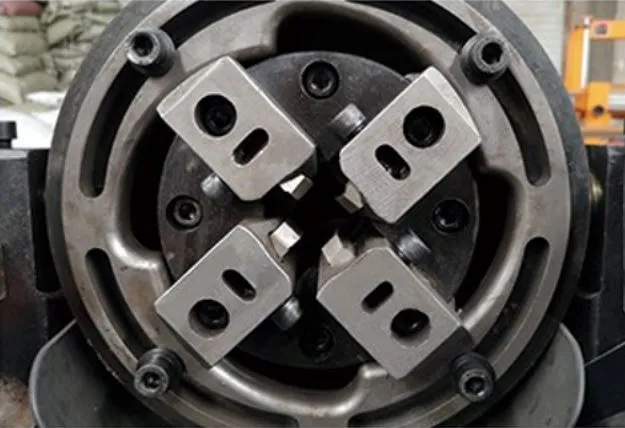

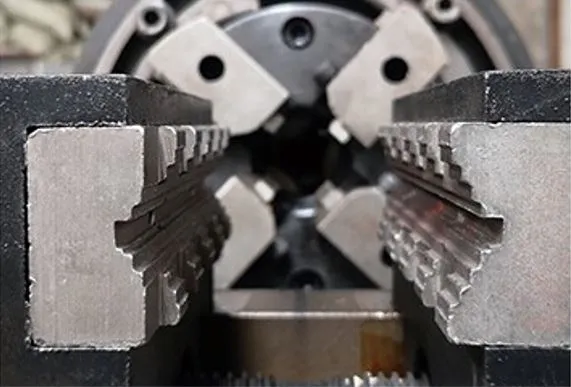

• High Strength Jaw :
  • High-strength jaw. with high abrasion resistance and toughness. high occlusion. fixed and non-displacement of the workpiece. and long service life.

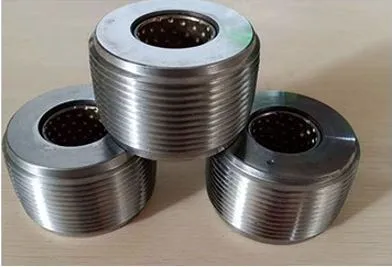

• Stripping & Rolling Assembly :
  • Rib stripping and rolling integration. automatic opening and closing. convenient and fast. sharp and wear-resistant. efficient rolling.
• High-quality Motor
  • All copper national standard motor. the movement uses high-quality copper coil. the coil is high temperature resistant. and the motor has a long service life.
• Thicker Body :
  • 45 # high quality steel. special manufacturing process. high dimensional accuracy and reliable quality. Ensure stable body and high intensity work.

Specifications :

• Working Capacity (diameter) : 16 mm - 40mm
• Standard Threading Length : 100mm
• Motor Power : 5.5 / 7.5 kW
• Spindle Speed : 85 r/min
• Weight : 400 kg
• Dimensions : 1300 x 800 x 1150 mm
