Product Details
＋

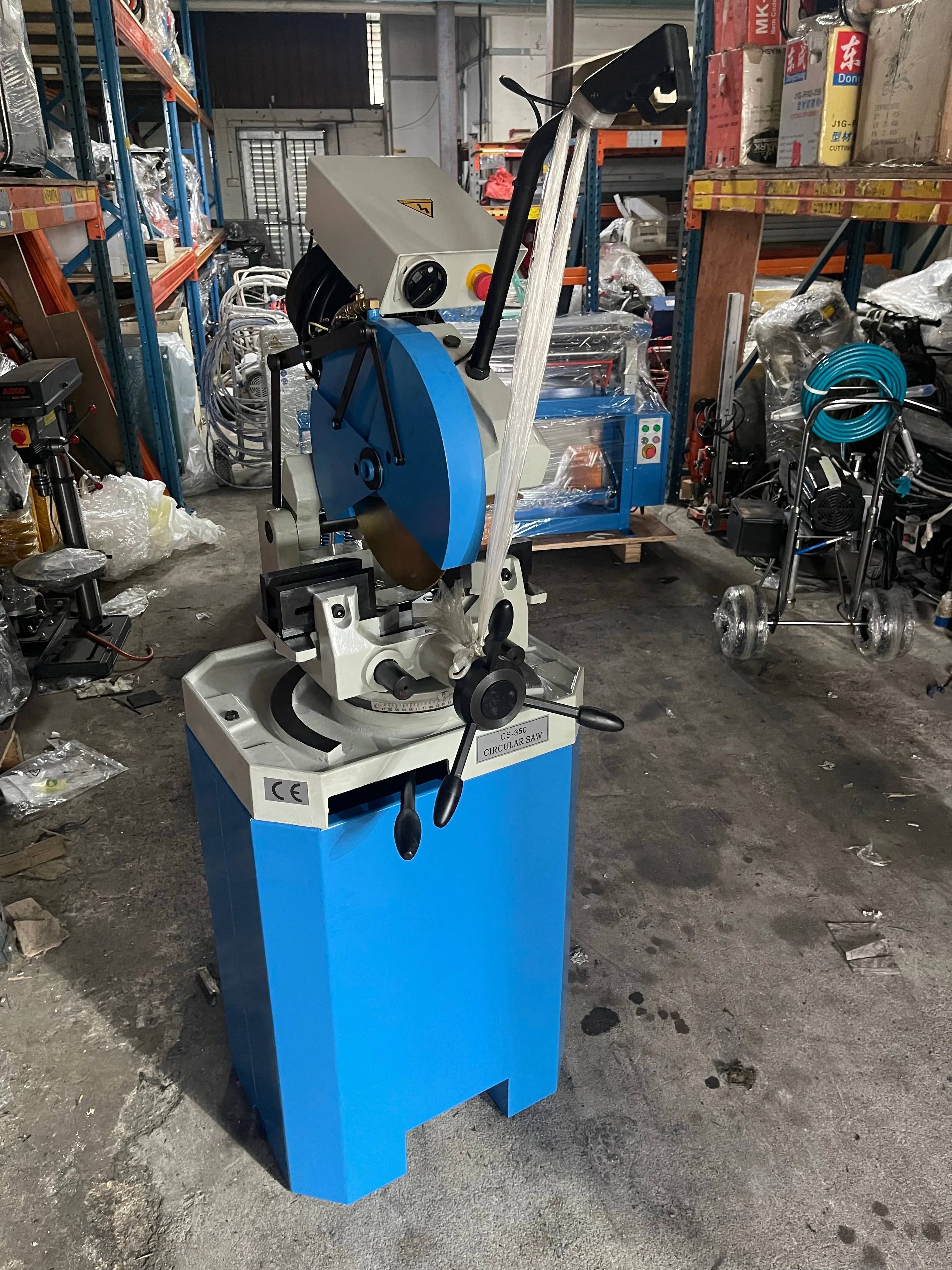

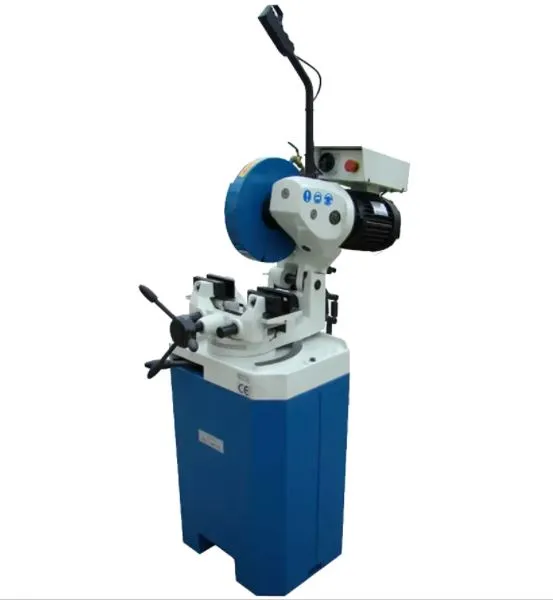

Aiko 415V 14 Low Speed Circular Saw Cutter | Model : CS350
Features:
1. Comes with a 350 mm saw blade
2. Cast iron gear box. direct gear drive

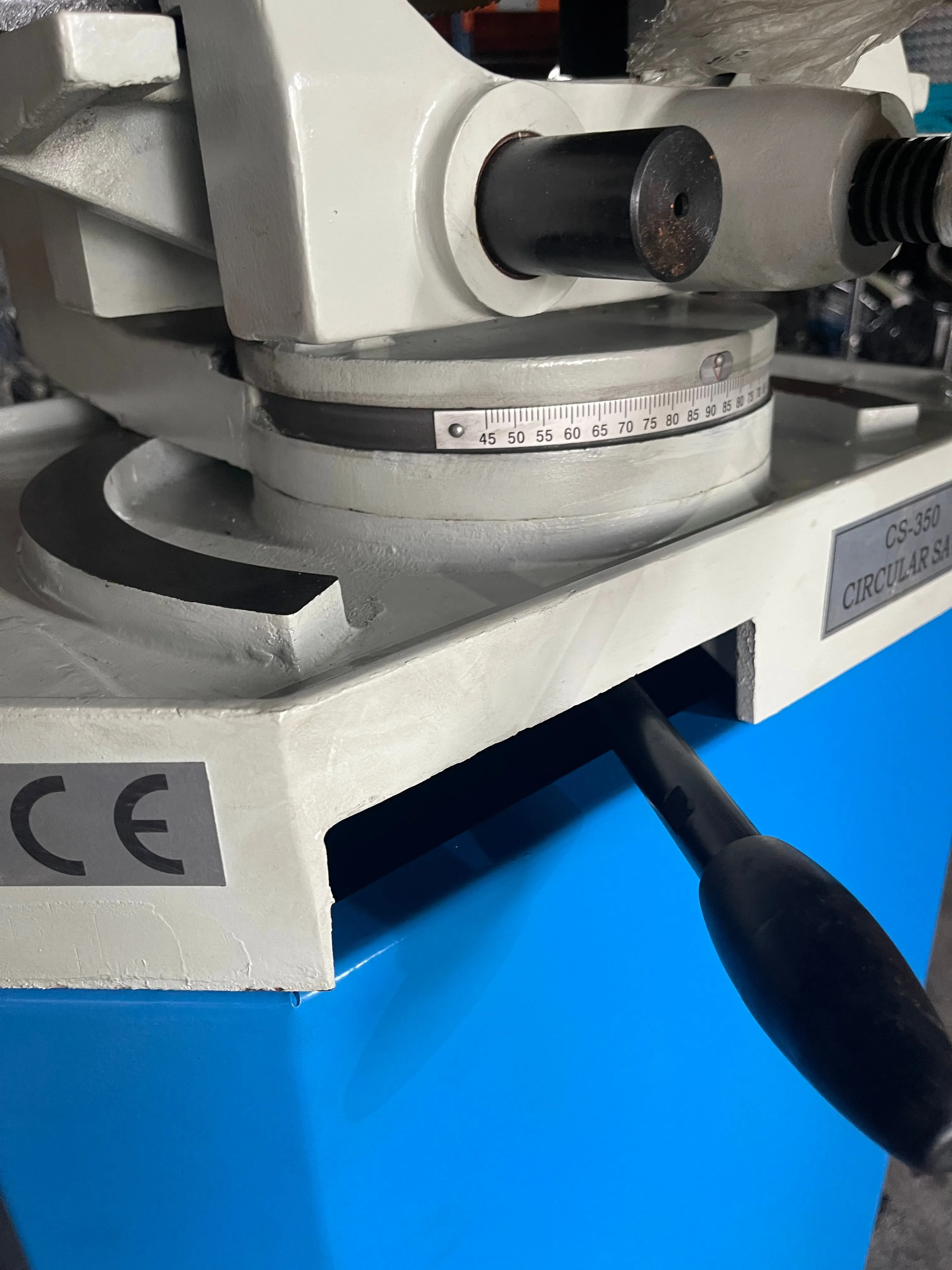

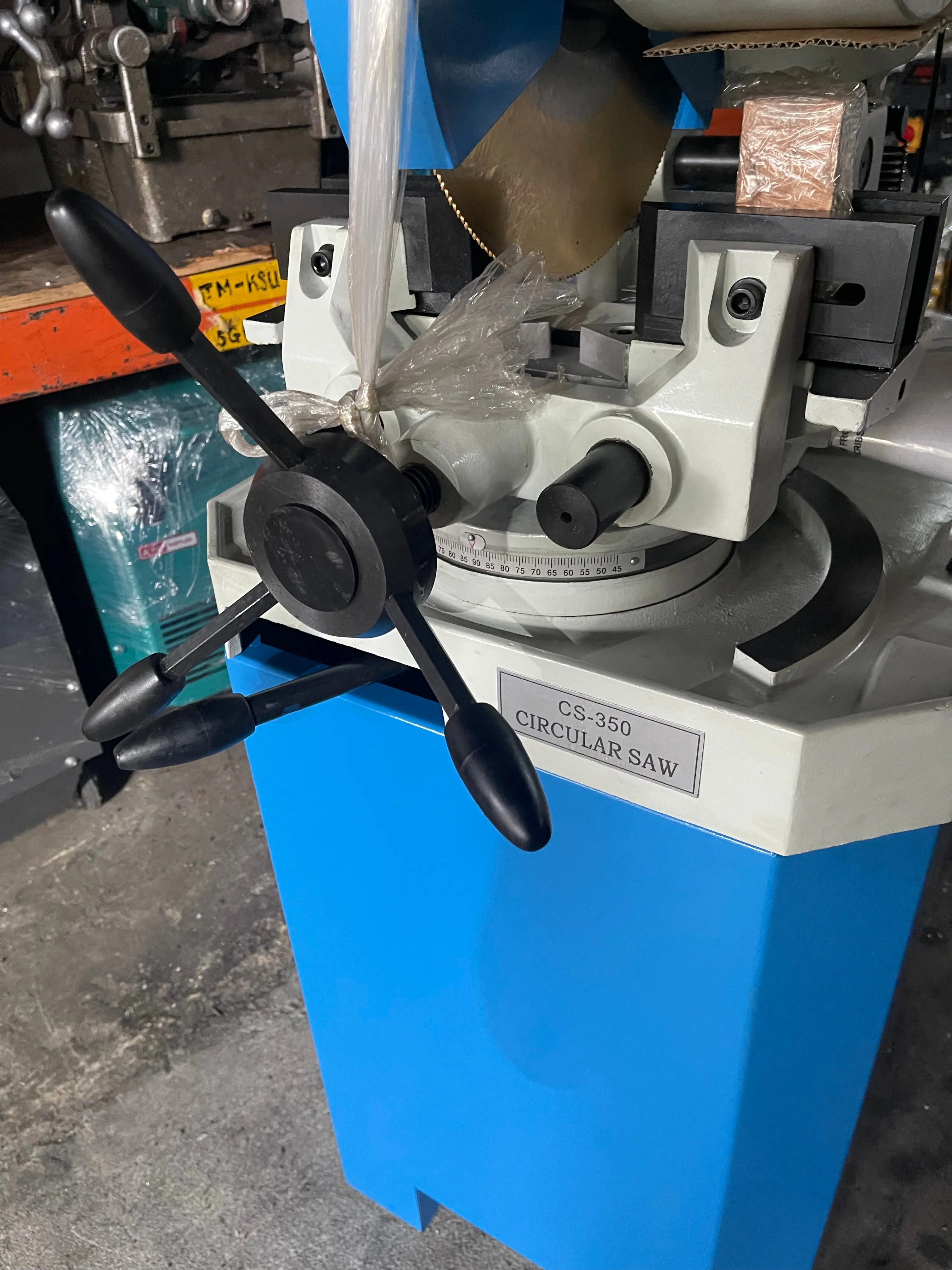

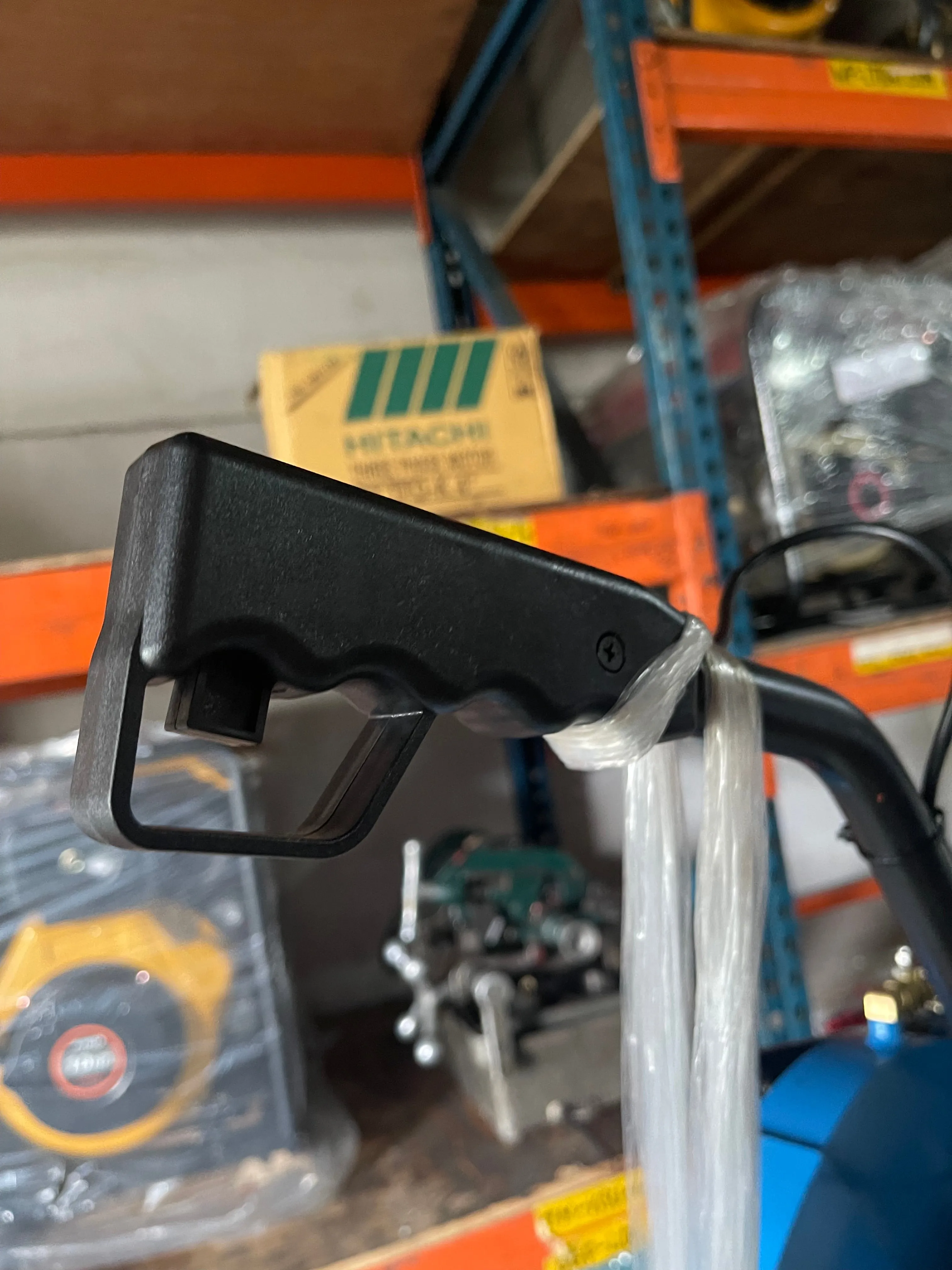

3. Saw head swivel on both side up to 45. quick lock handle to fix the head.
4. Double cutting speed (single phase do not have)

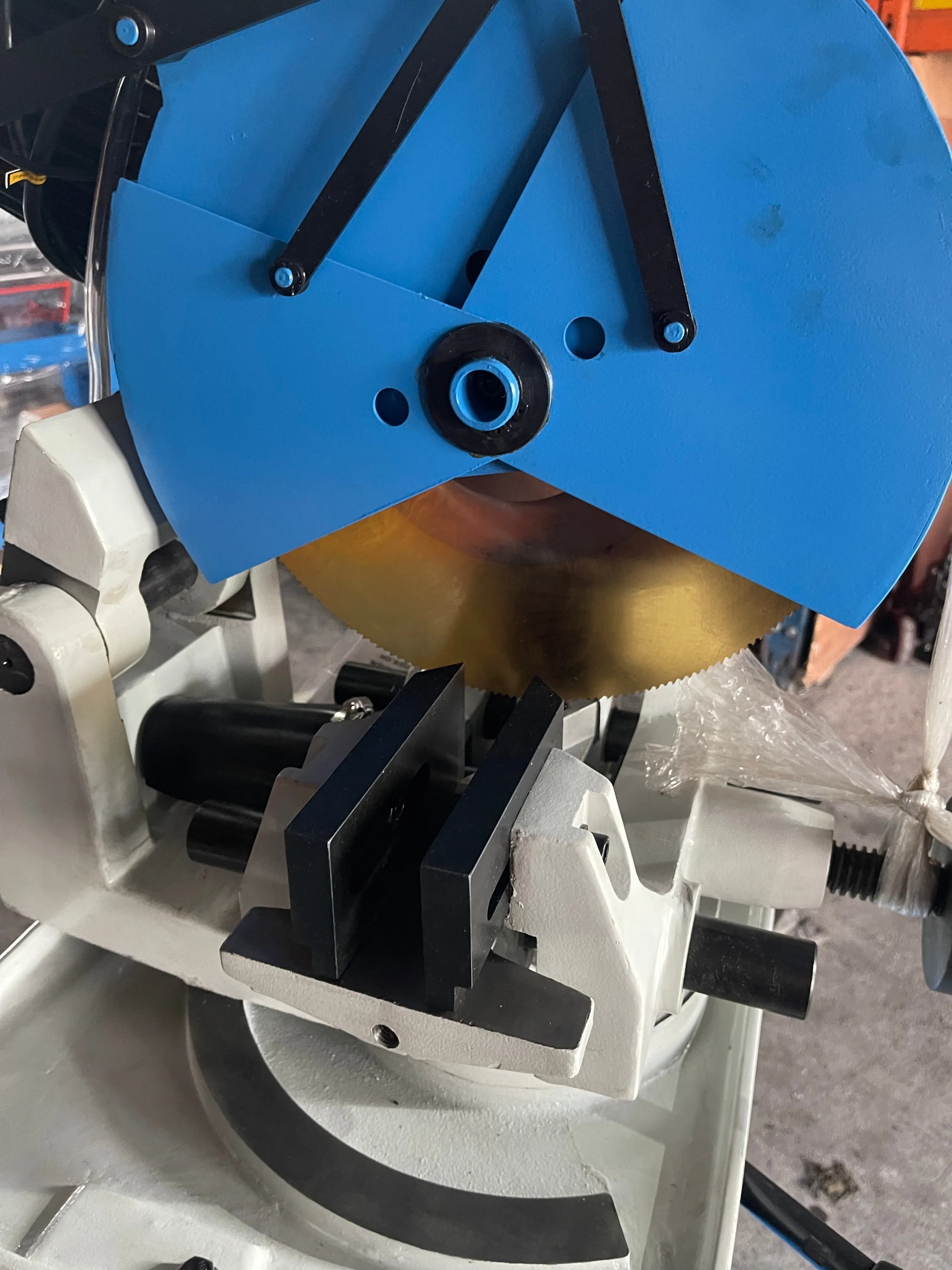

5. Automatic blade guard cover the blade when returned to the home position

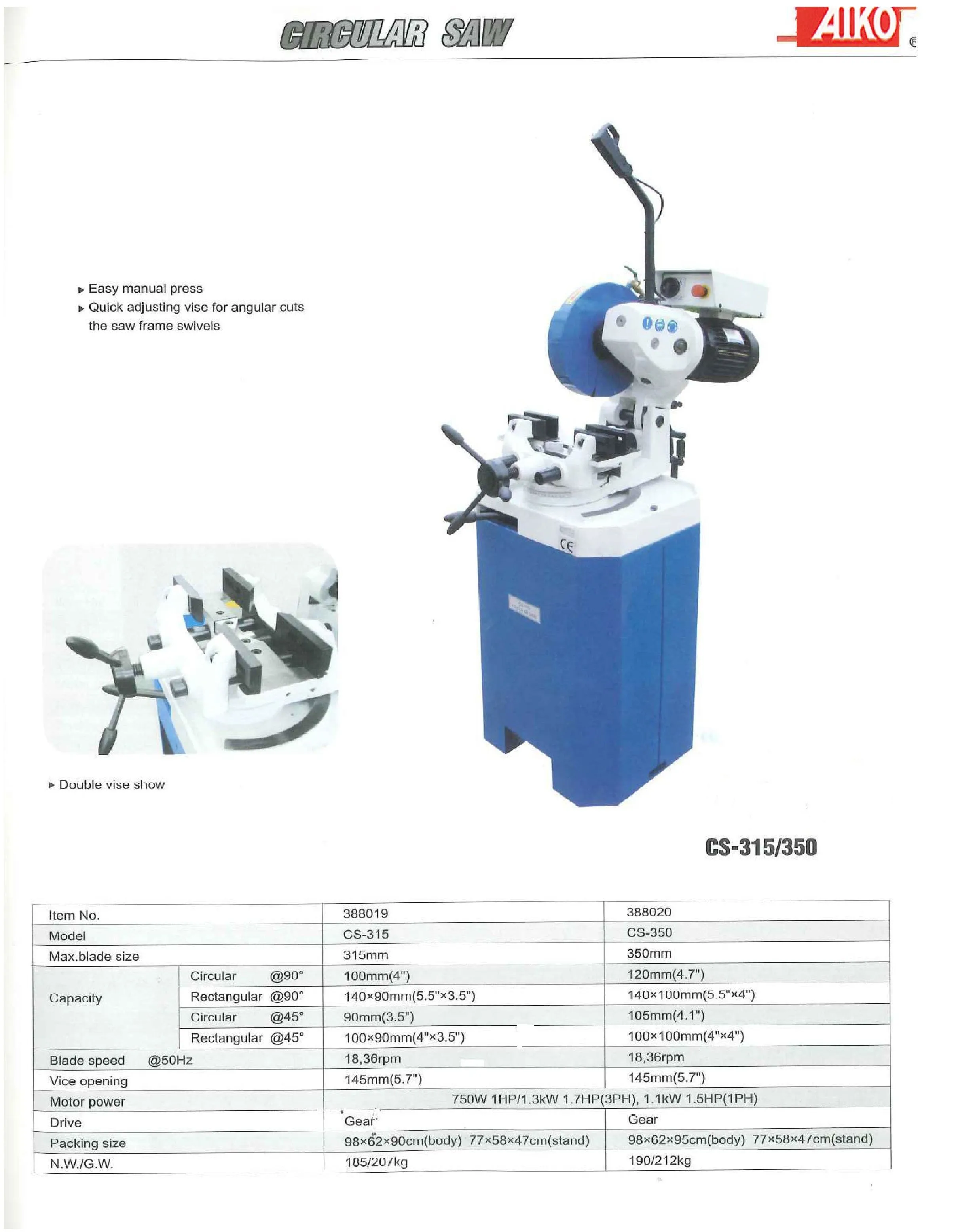

Specifications:
| Model | CS-350 |
| Max. blade size | 350mm (13.8) |
| Cut circular @90 | 120mm (4.7) |
| Cut rectangular @90 | 140x100 mm (5.5x4) |
| Cut circular @45 | 105mm (4.1) |
| Cut rectangular @45 | 100x100mm (4x4) |
| Blade speed (50HZ) | 18.36 rpm |
| Vice Opening | 145mm (5.7) |

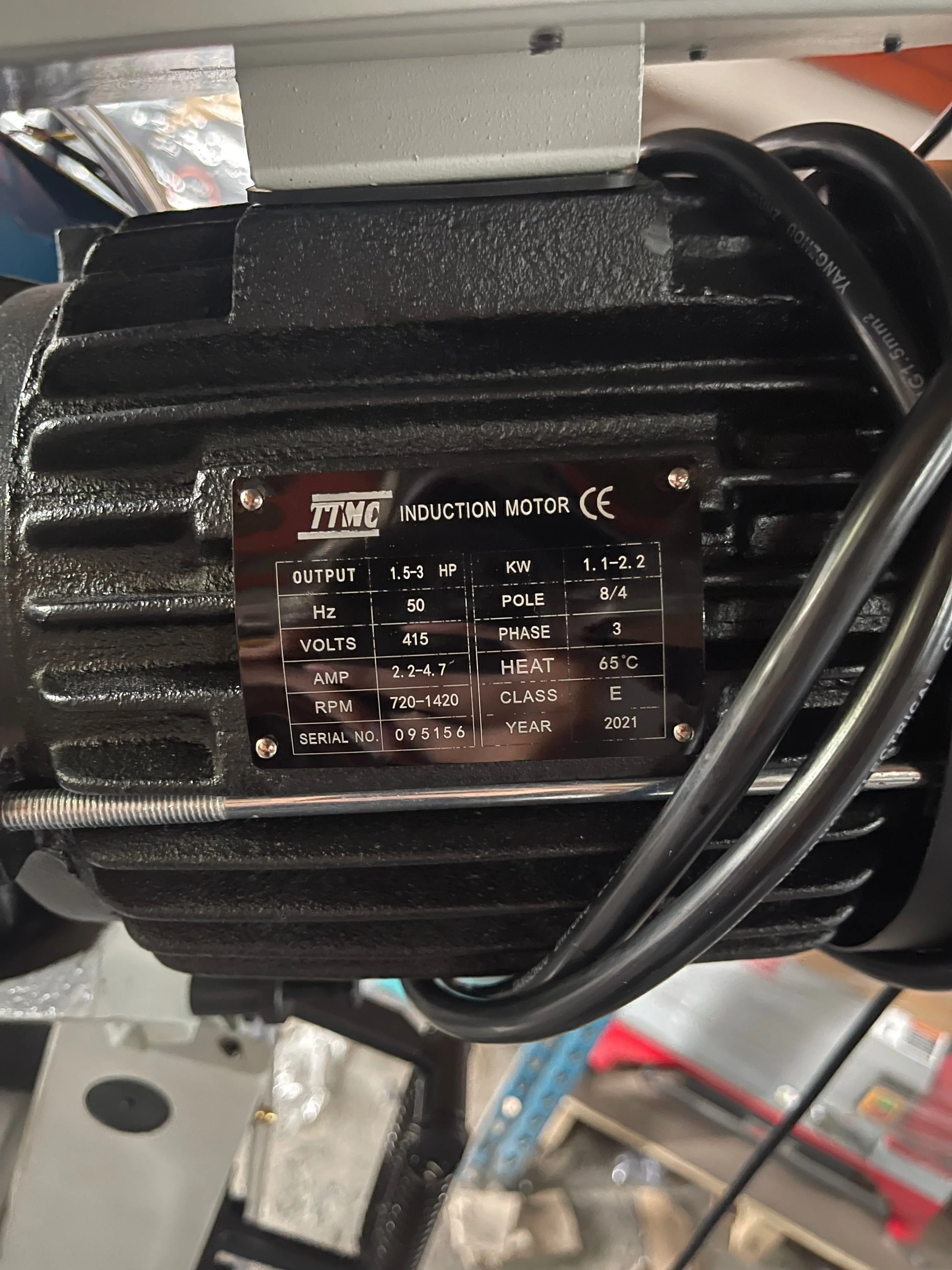

| Motor power | 1.3 kW 1.7 HP (3PH) |
| Drive | Gear |
| Packing size | 98x62x95cm (body) 78x60x50cm (stand) |
| N.W./G.W. | 236/270kg |
Standard accessories:
Saw blade

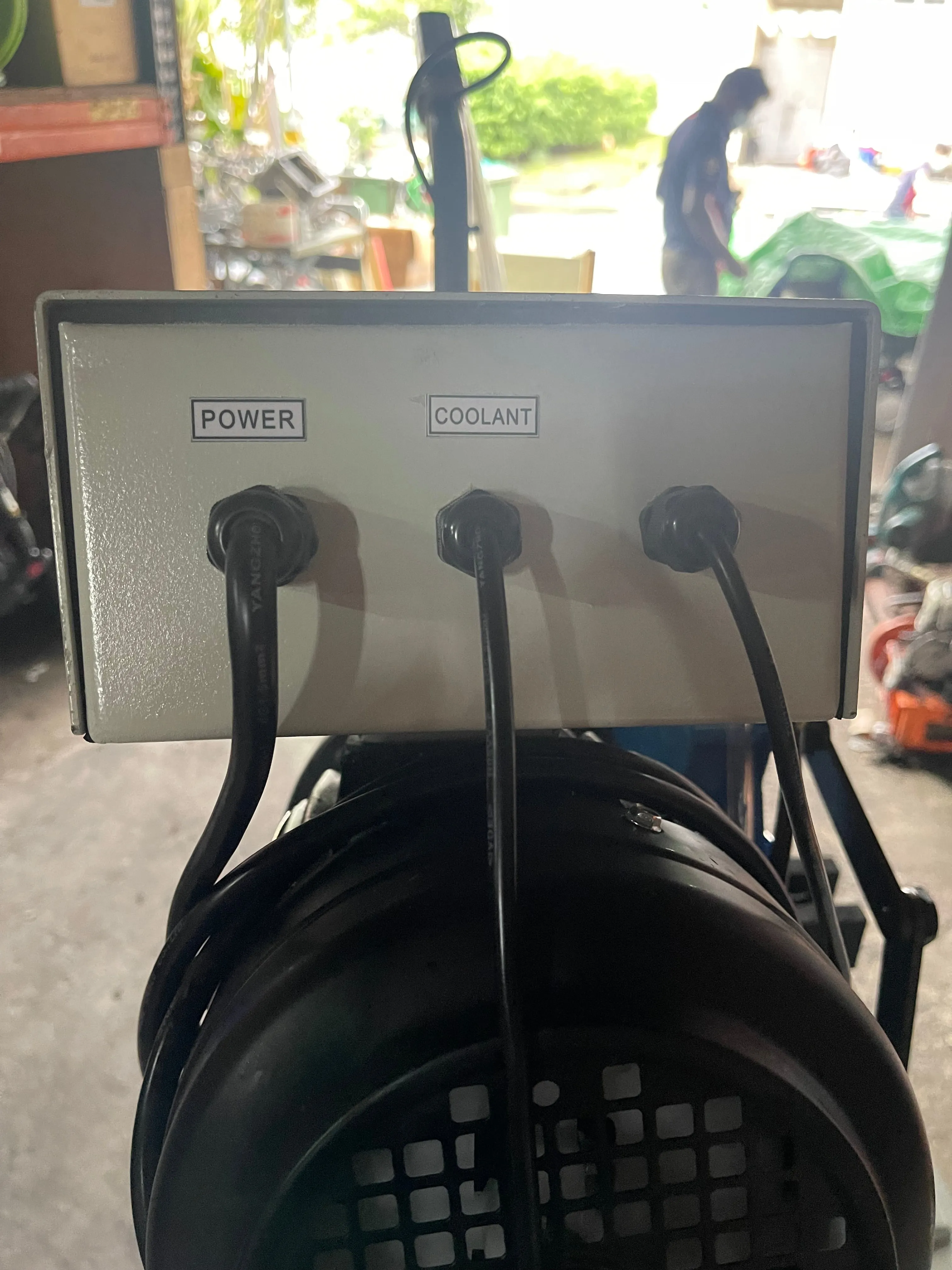

Coolant system
Stand
