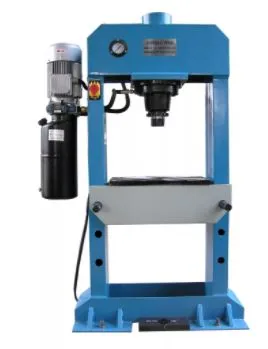

Aiko 50 Ton Hydraulic Press (Auto) | Model : HP-50
Features :
The hydraulic press has various functions that can conduct assembling. dismantling. bending. punching. etc. for machine part
The hydraulic press uses Italian CNK and CBZ oil pumps. which can save more than 60% energy when compared to the traditional hydraulic press. It features high efficiency. small size. high pressure. simple structure and it light weight
The working table can be moved up and down which greatly lengthen the running height of the machine and facilitates its operation
Specifications:
| ItemNo. | 382002 |
| Model | HP-50 |
| Capacity | 500 kN |
| Pressure | 25 mpa |
| Piston Travel / Table travel | 220 405 mm |
| Motor power | 3 kW |
| Table size | 350x480 mm |
| N.W./G.W. | 520/593kg |
| Dimension for body | 148x64x200cm |
| Dimension for hydraulic station | In package of body |
