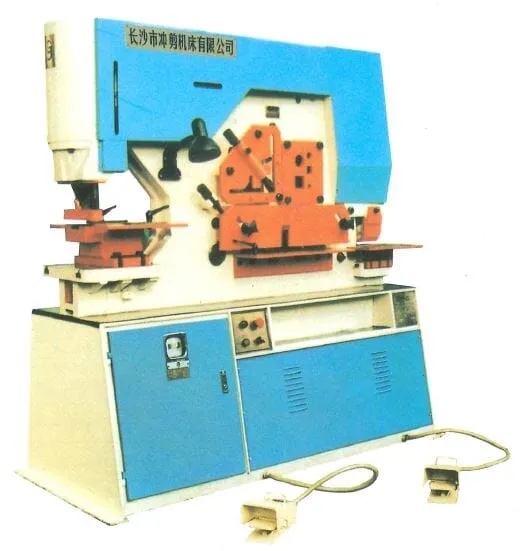

Aiko Hydraulic Ironworker Q35-20 (90Ton) | Model : Q35Y-20

Specifications :

• Model : Q35Y - 20
• Flat bar : 330 x 20.48 x 10 mm
• Spare bar : 50 x 50 mm
• Round bar : 50 mm
• Joist (Type) : 16#
• Channel (Type) : 16#
• Cutting of angle steel at 90 : 160 x 160 x 14 mm
• Cutting of angle steel at 45 : 80 x 80 x 10 mm
• Punching
• 30 x 20 mm
• 38 x 15 mm
• Anble flee : 100 x 50 x 12 mm
• Punching force : 800 kN
• Depth of Throat : 355 mm
• Max length of cylinder stroke : 80 mm
• Stroke Times : 9 ~ 36 per min
• Motor Power : 5.5 Kw
• Net Weight : 1800 kg
• Overall dimensions : 1835 x 810 x 1785 mm
• Packing Department dimensions : 2100 x 1020 x 2000 mm
