Product Details
＋

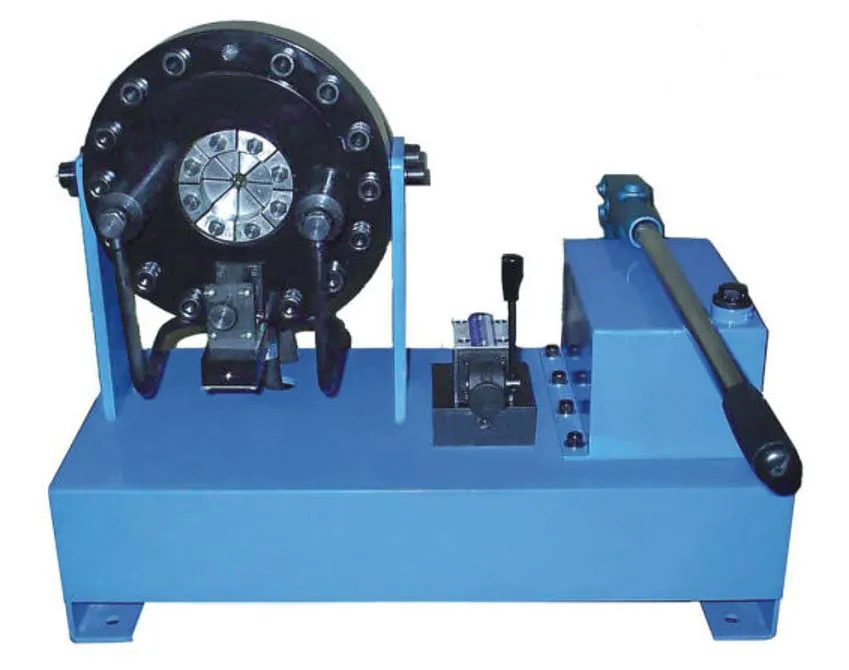

Aiko JT160 Manual Hydraulic Hose Crimper | Model : JT160
Features :
- Manual opening and closing control.
- Compact. light. operated by hand-pump. Mobile. Available be used for field work.
- Dual ramps crimping. High crimping force can reach to 1600KN.
- The red light will illuminate when crimping size is reached.
Specifications :
Technical Specifications:
Crimping Force KN | 1600/160(Ton) | Hose Internal Size mm | 4-25 |
Oil Pressure (Mpa) | 31.5 | Opening (mm) | 20 |
Weight without oil (KG) | 52 | Die Sets | 8 |
Dimensions:
Length (mm) | 560 | Width (mm) | 460 | Height (mm) | 460 |
Applicable Product Range:
Hose Type | Max hose Size |
3 wire braids or textile | 1 |
2 wire spirals | 1 |
Standard Die Sizes:
Die No. | 14 | 16 | 19 | 22 | 26 | 30 | 34 | 39 |
Crimping Range (mm) | 14-16 | 16-19 | 19-22 | 22-26 | 26-30 | 30-34 | 34-39 | 39-45 |
L (mm) | 45 | 45 | 45 | 55 | 55 | 55 | 65 | 65 |
