Product Details
＋

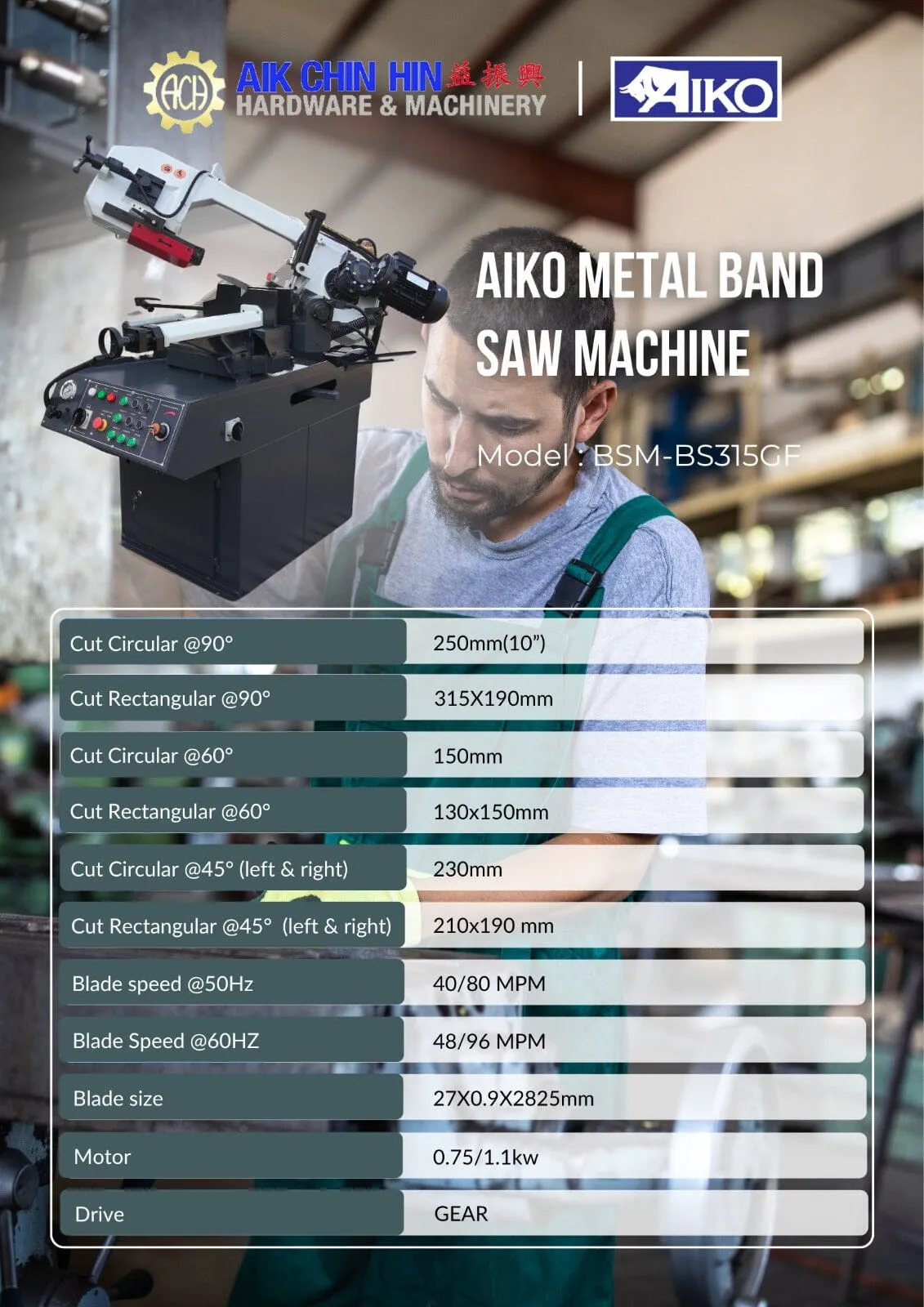

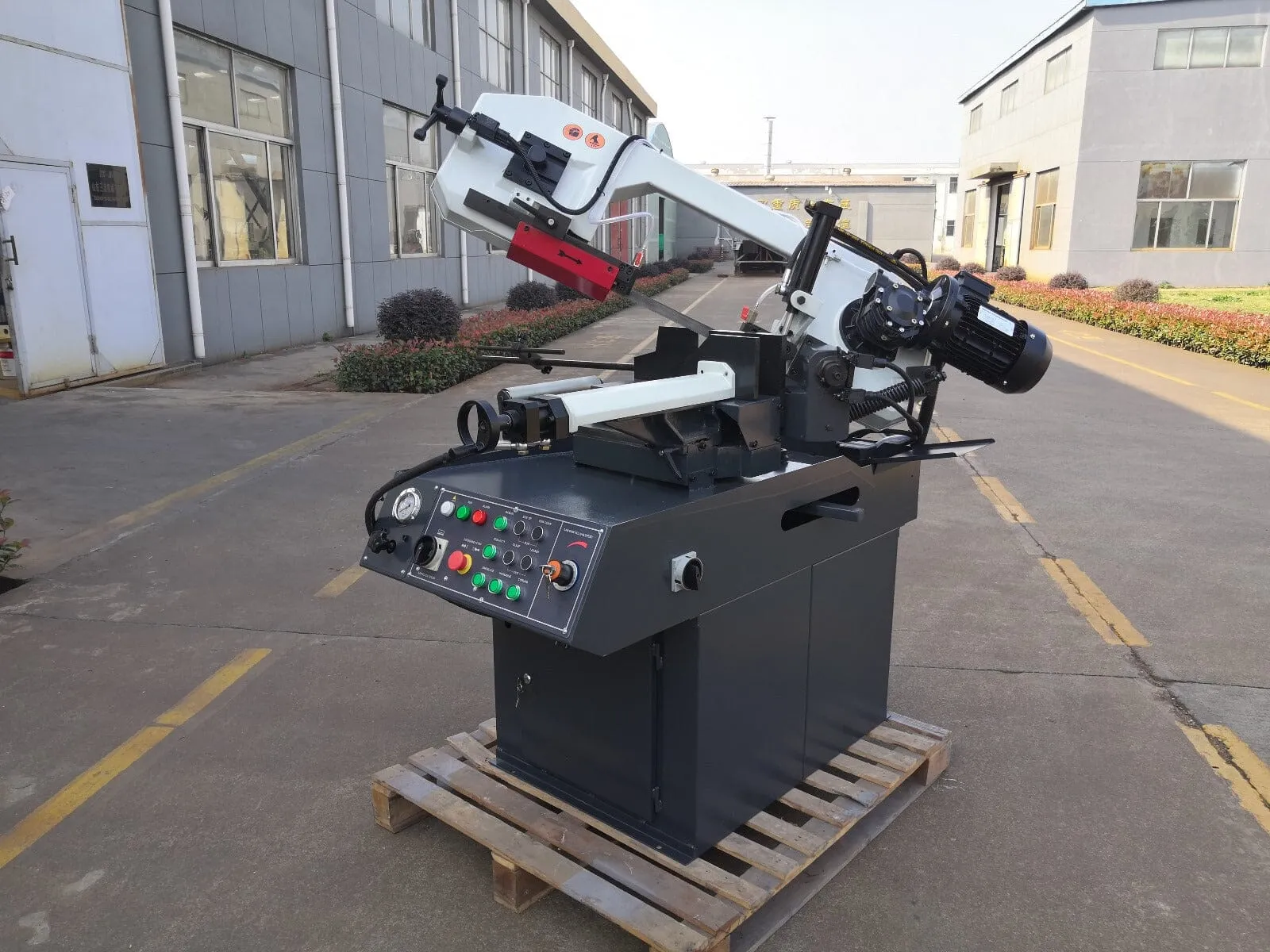

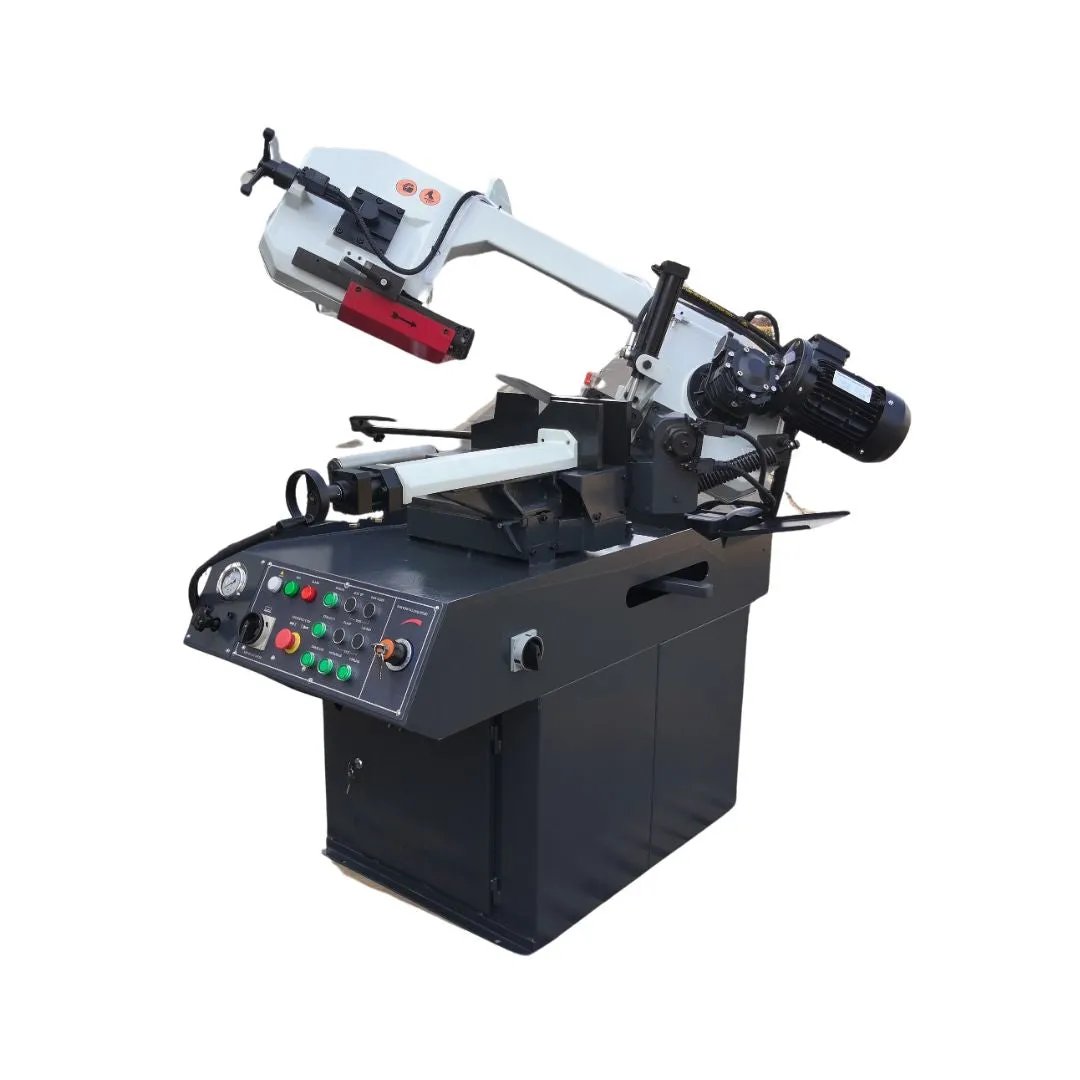

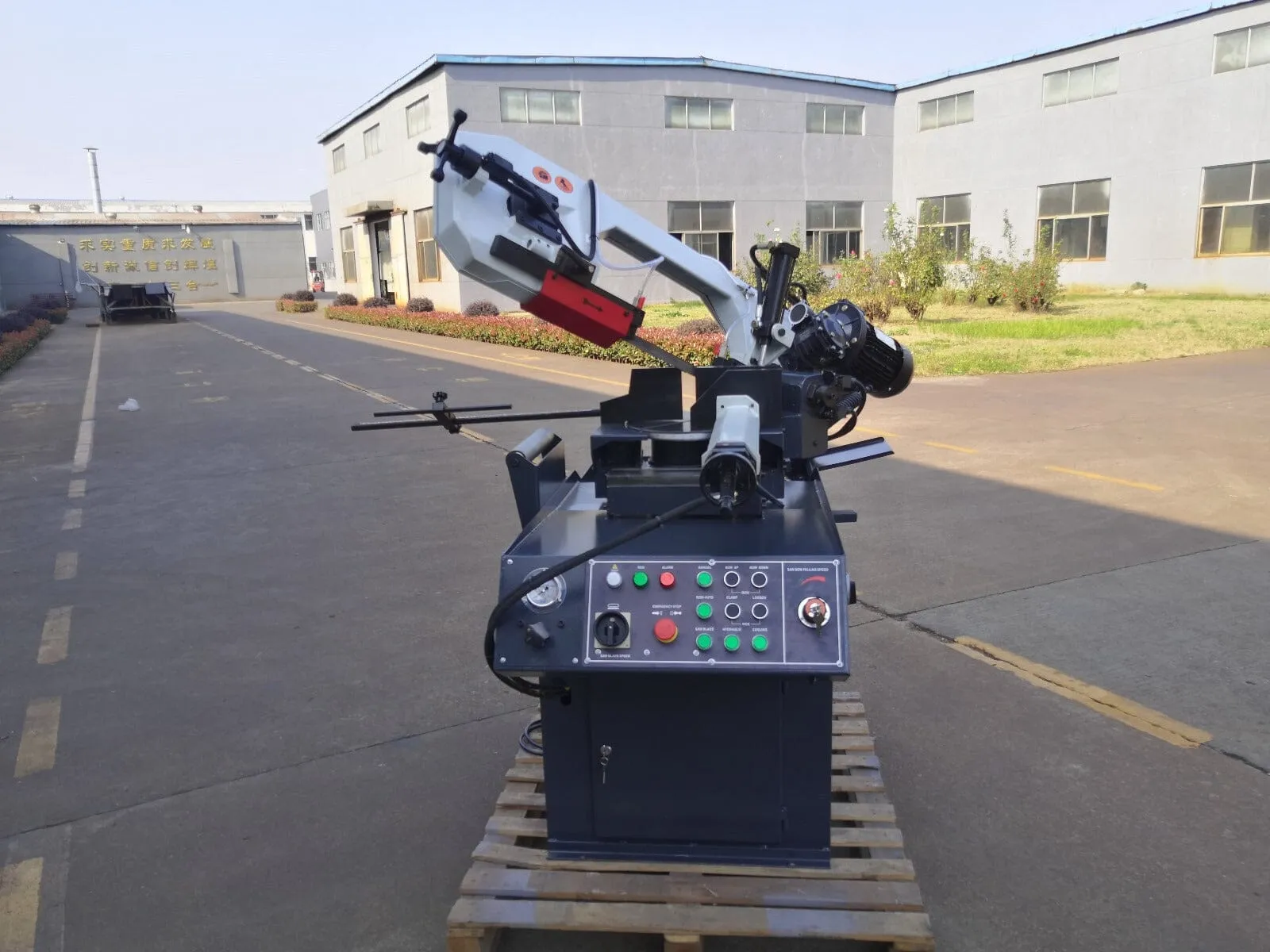

Aiko Metal Bandsaw Machine 12 #BS-315GF | Model: BSM-BS315GF
Features:
- Hydraulic cylinder for controlled descent
- High-capacity band controlled by two-speed motor
- Accident preventing devices on the fly wheel casing and on the blade
- Vertical rotation on bolt with adjustable tapered bearings without backlash
- Band stretching is obtained by electro-mechanical blade tensioner with microswitch
- Swivel on both sides
- Electric coolant system
Specifications:
| Model | BS-315GF |
| Capacity Cut Circular @90 | 250mm(10) |
| Capacity Cut Rectangular @90 | 315X190mm |
| Capacity Cut Circular @60 | 150mm |
| Capacity Cut Rectangular @60 | 130x130mm |
| Capacity Cut Circular @45 (left and right) | 230mm |
| Capacity Cut Rectangular @45 (left and right) | 210x190 mm |
| Blade speed @50Hz | 40/80 MPM |
| Blade Speed @60HZ | 48/96 MPM |
| Blade size | 27X0.9X2825mm |
| Motor power | 0.75/1.1 kW |
| Drive | Gear |
| Packing size | 163x90x155cm |
| N.W./G.W. | 400/515 kg |
