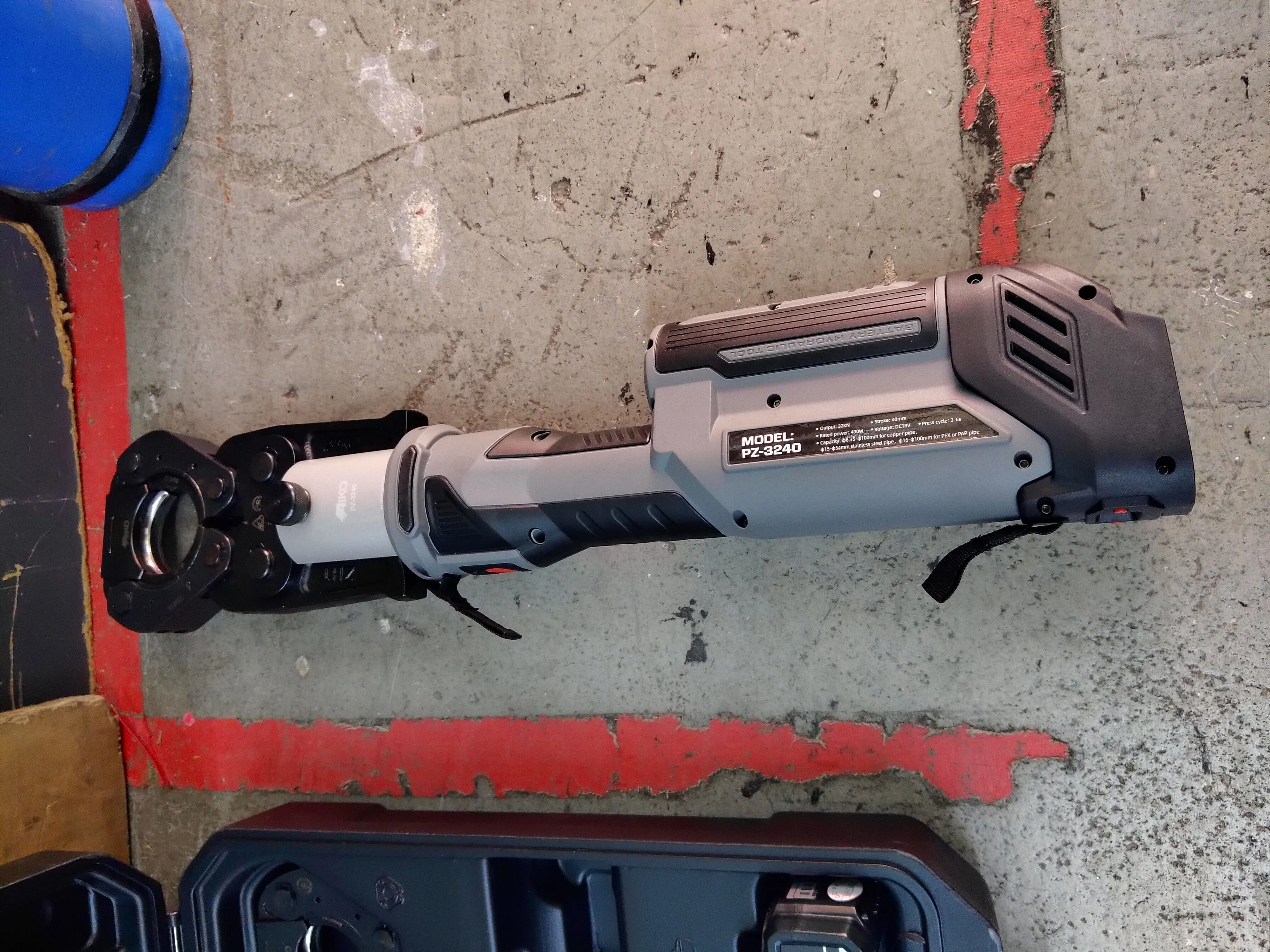

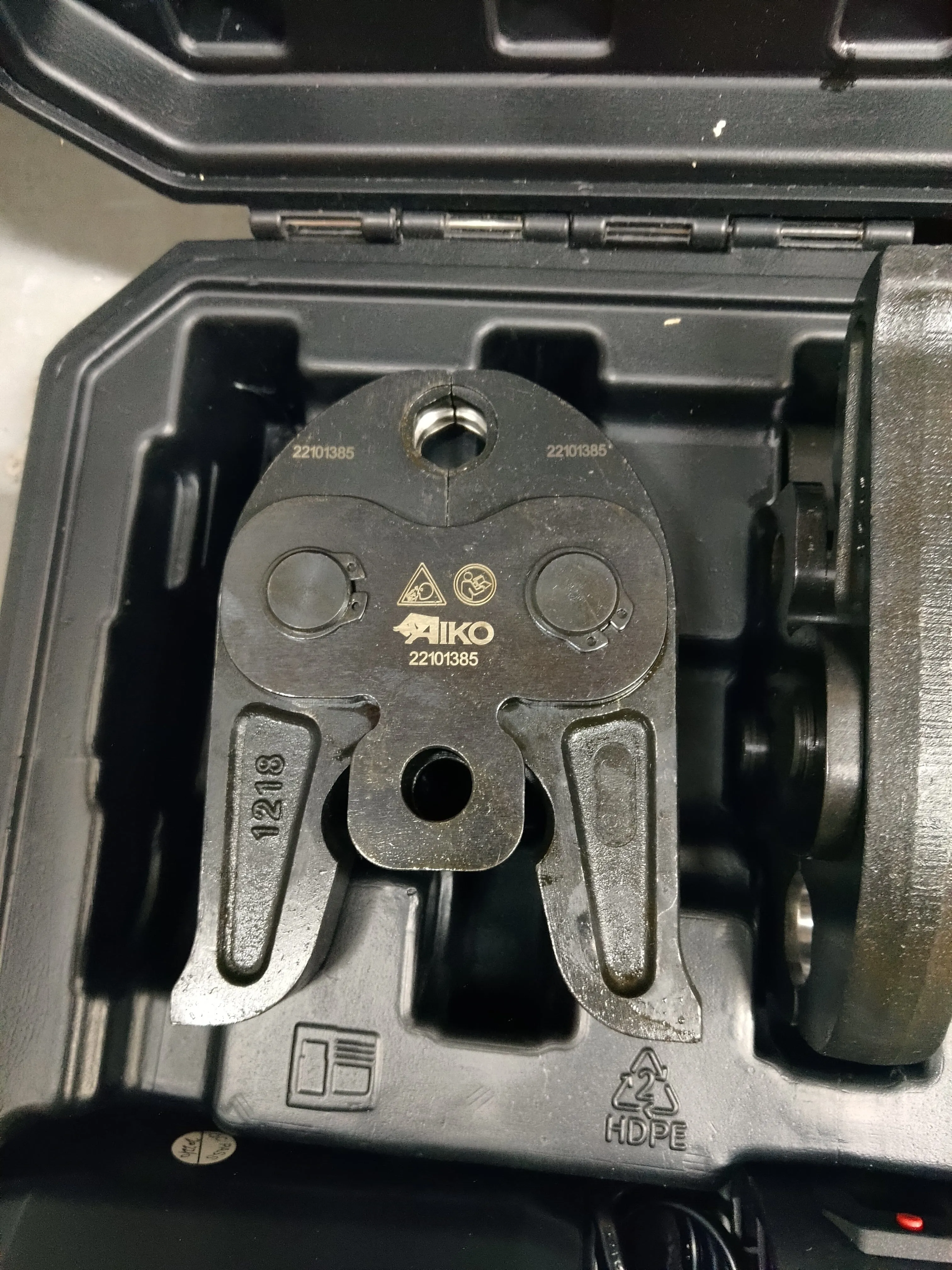

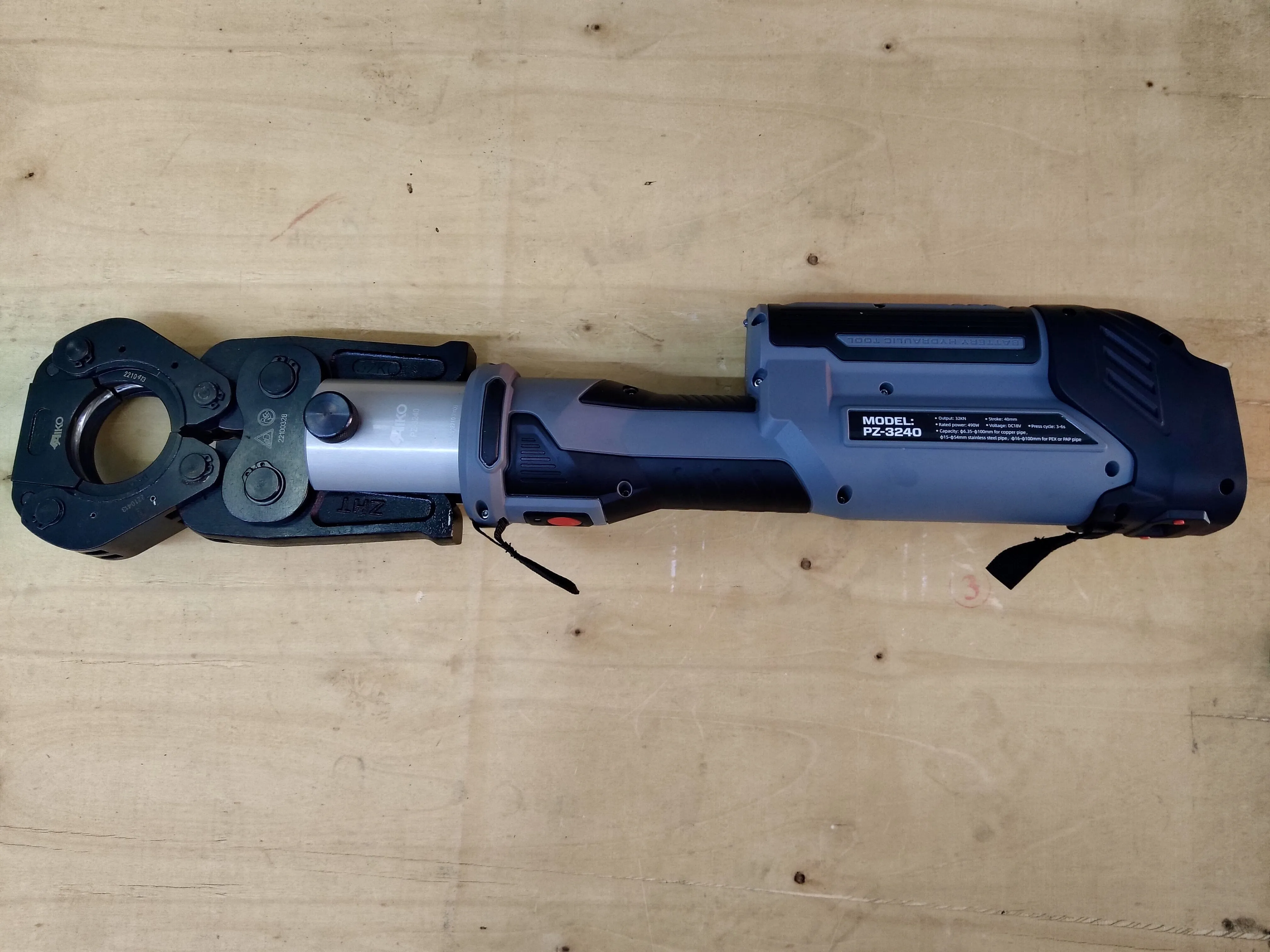

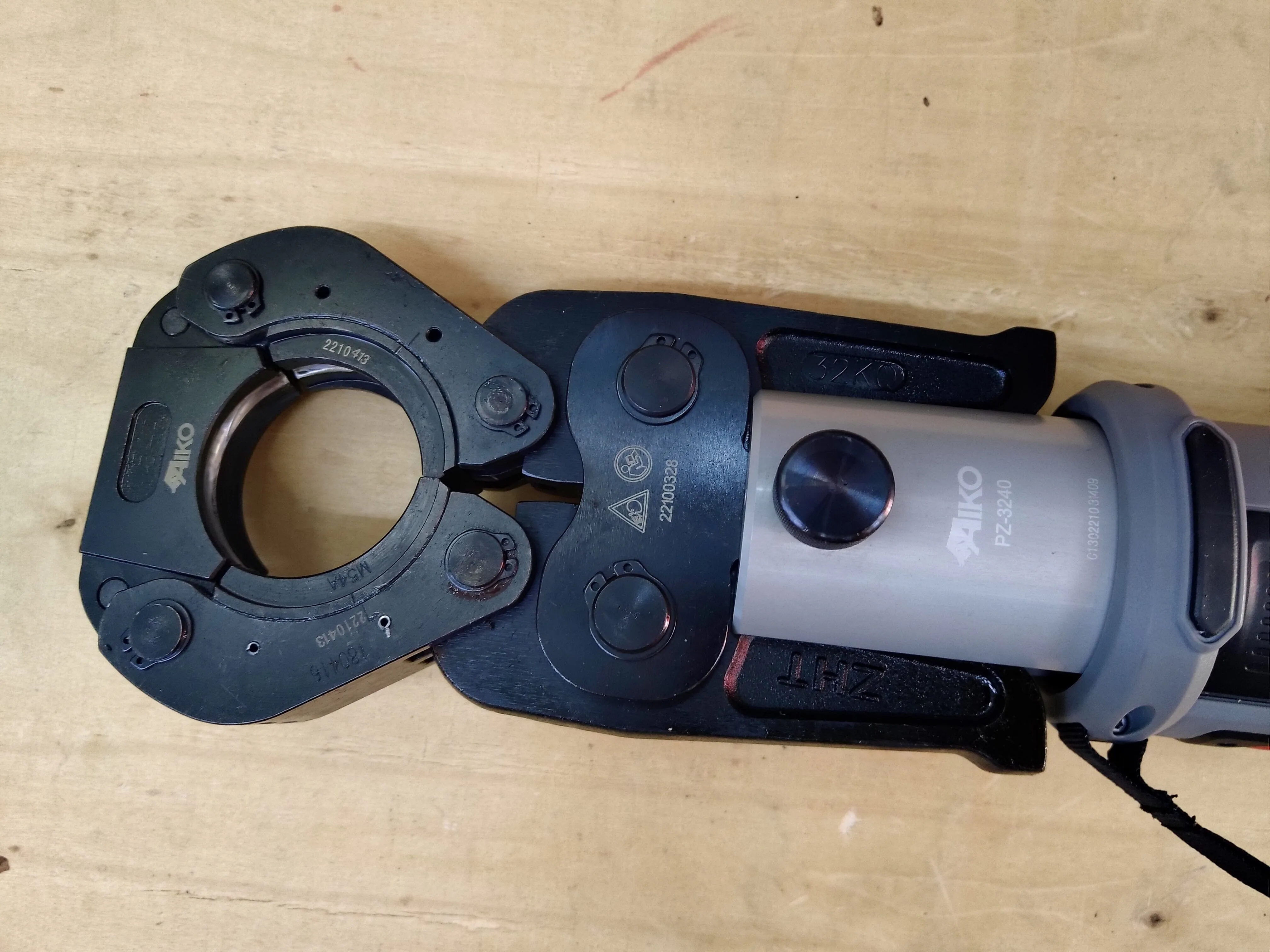

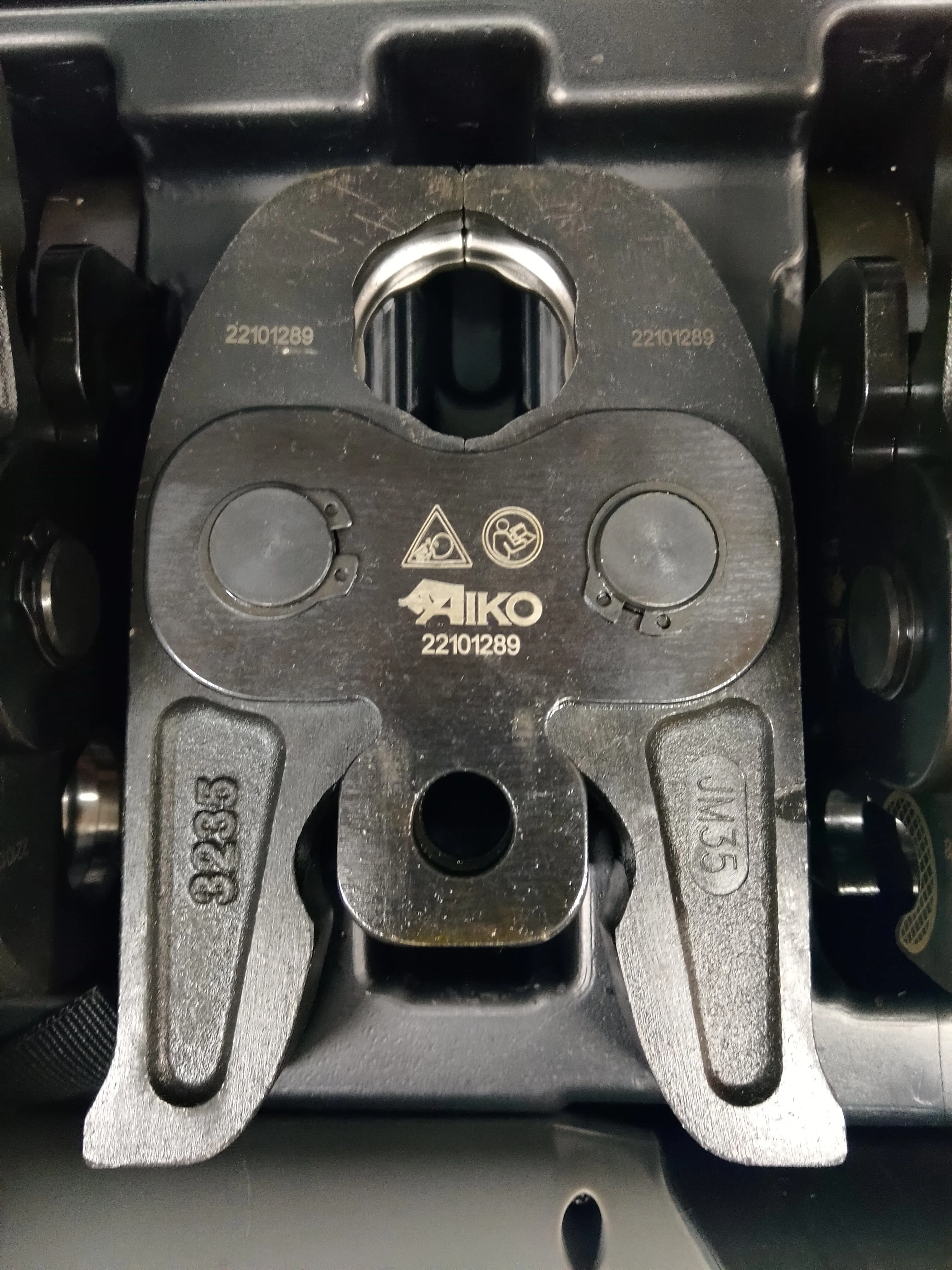

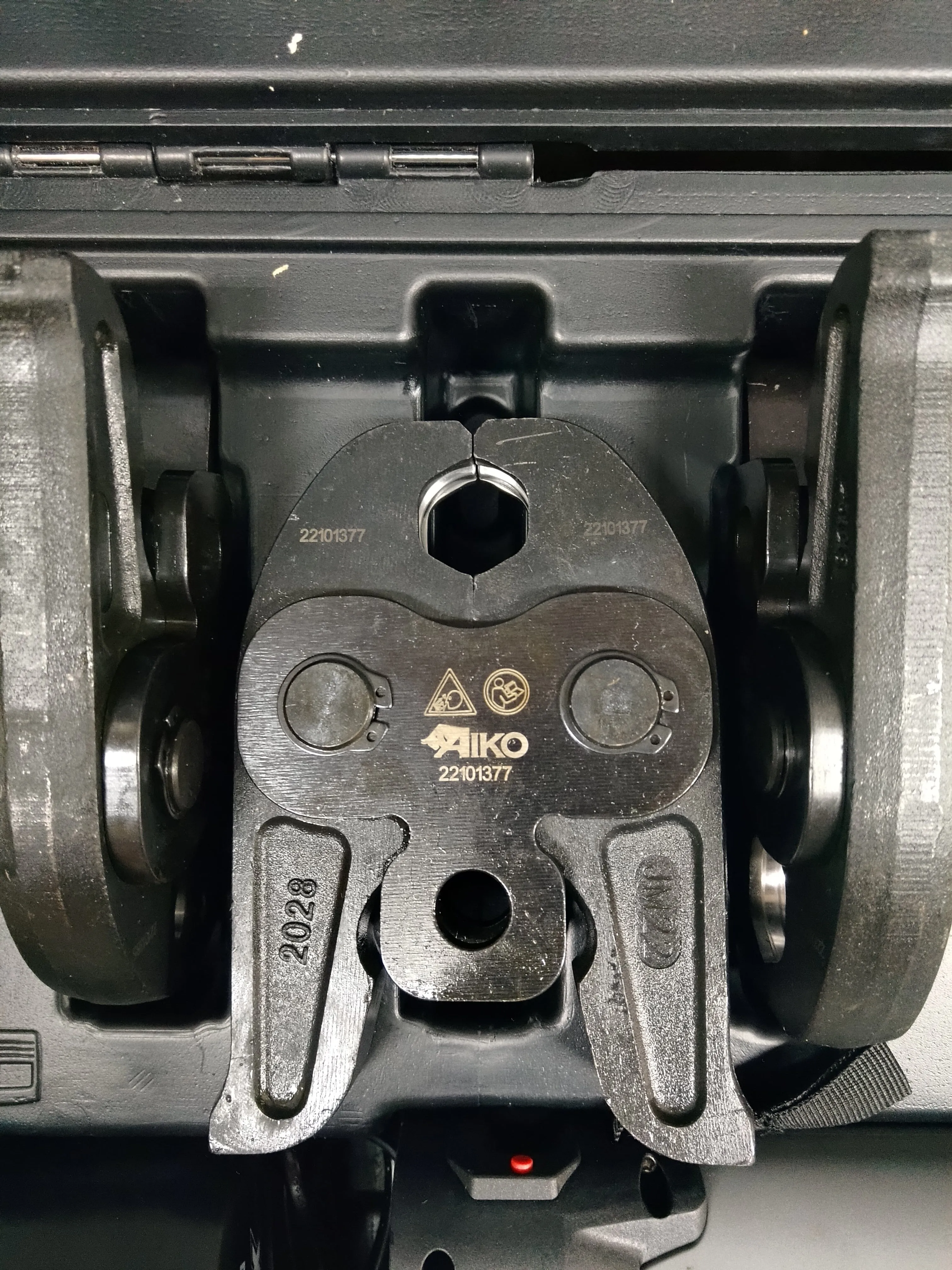

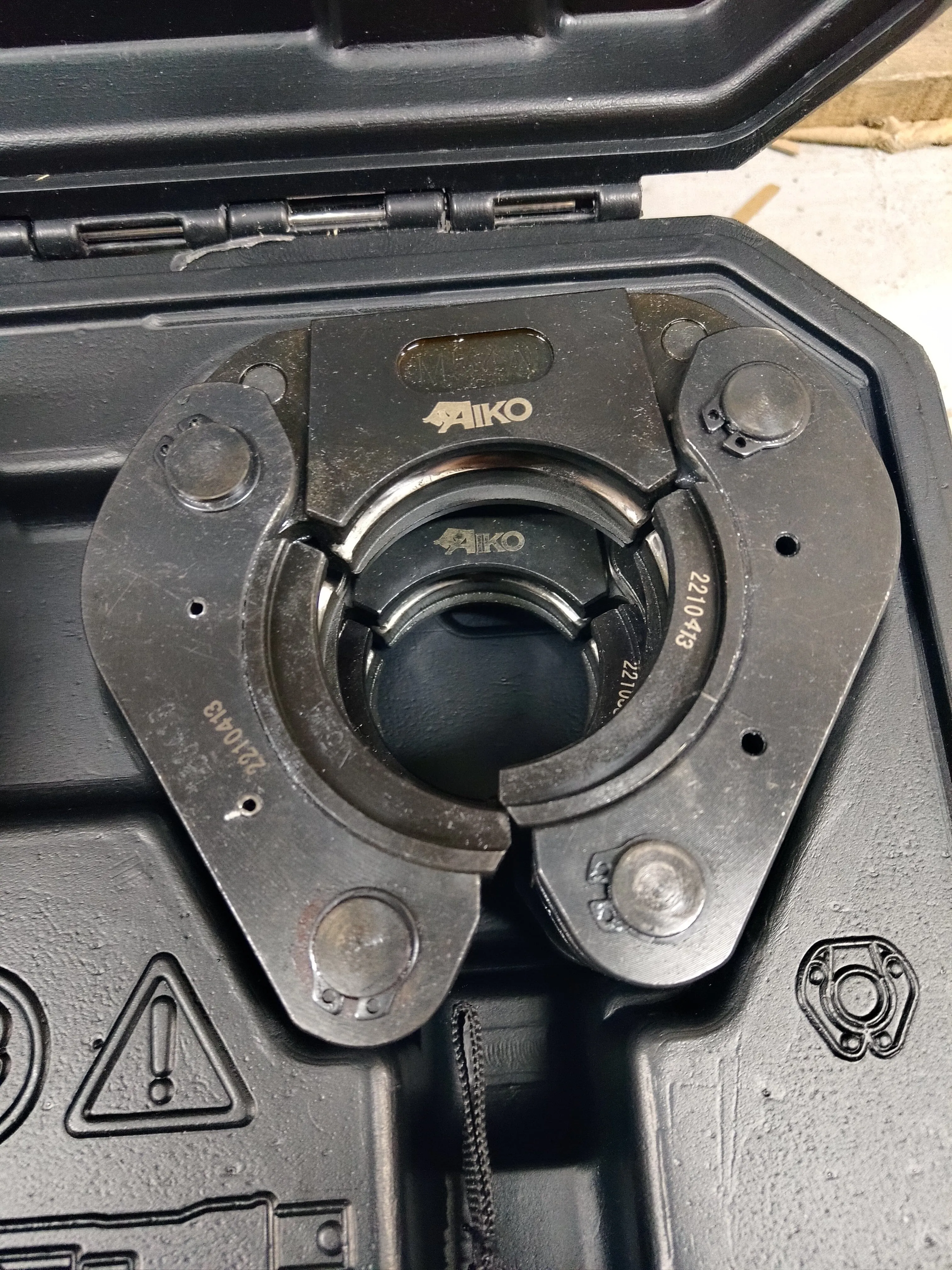

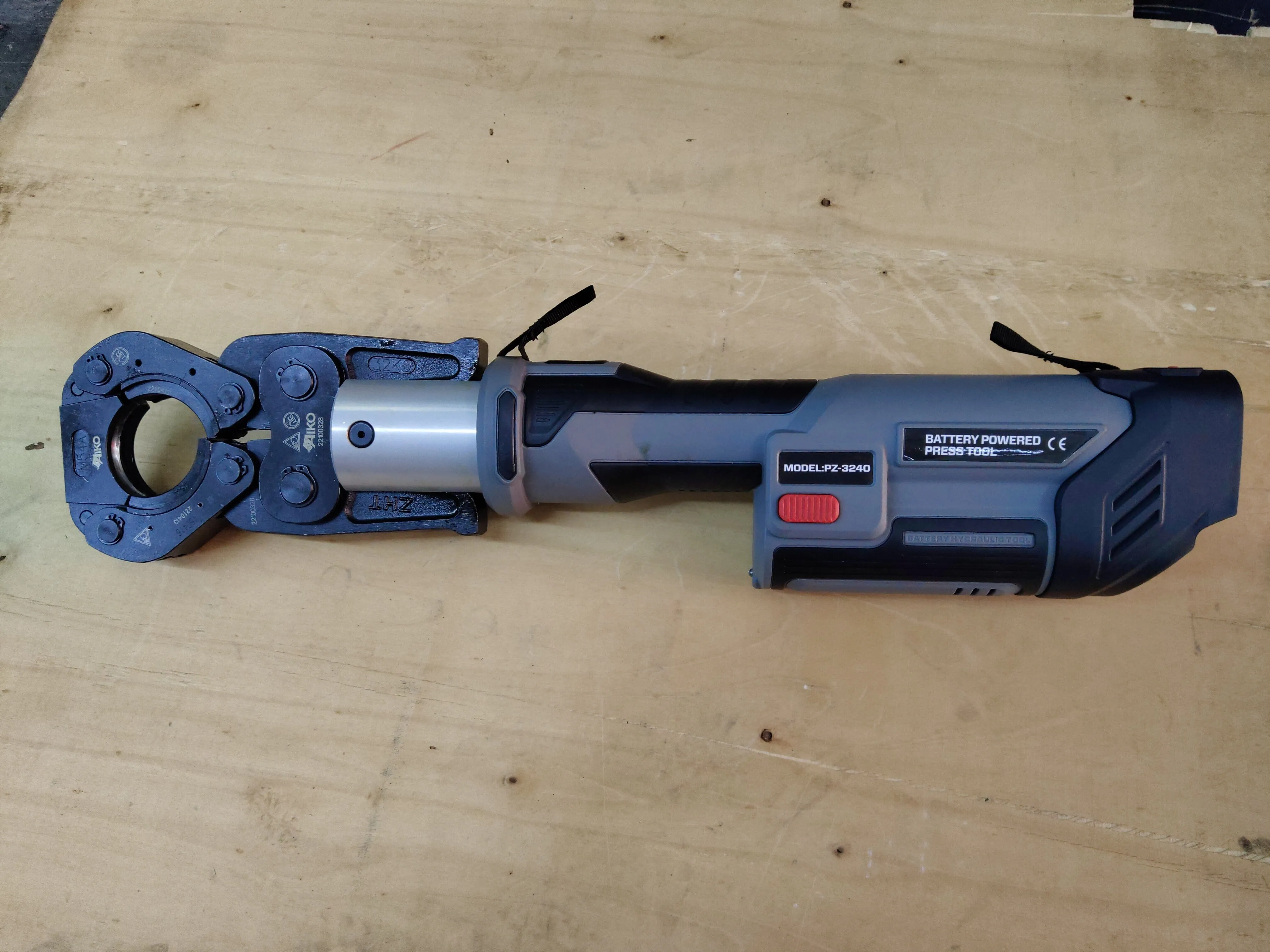

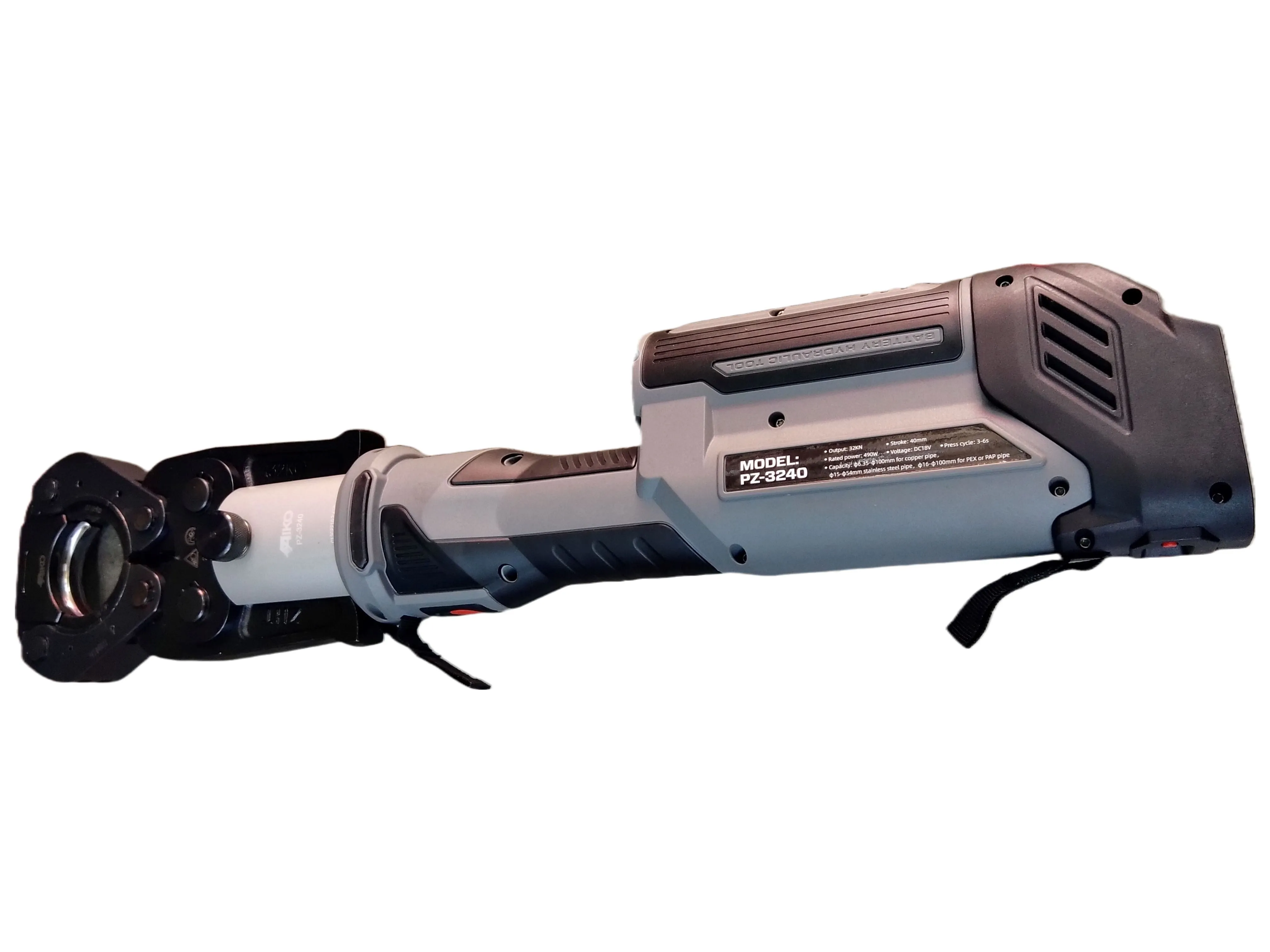

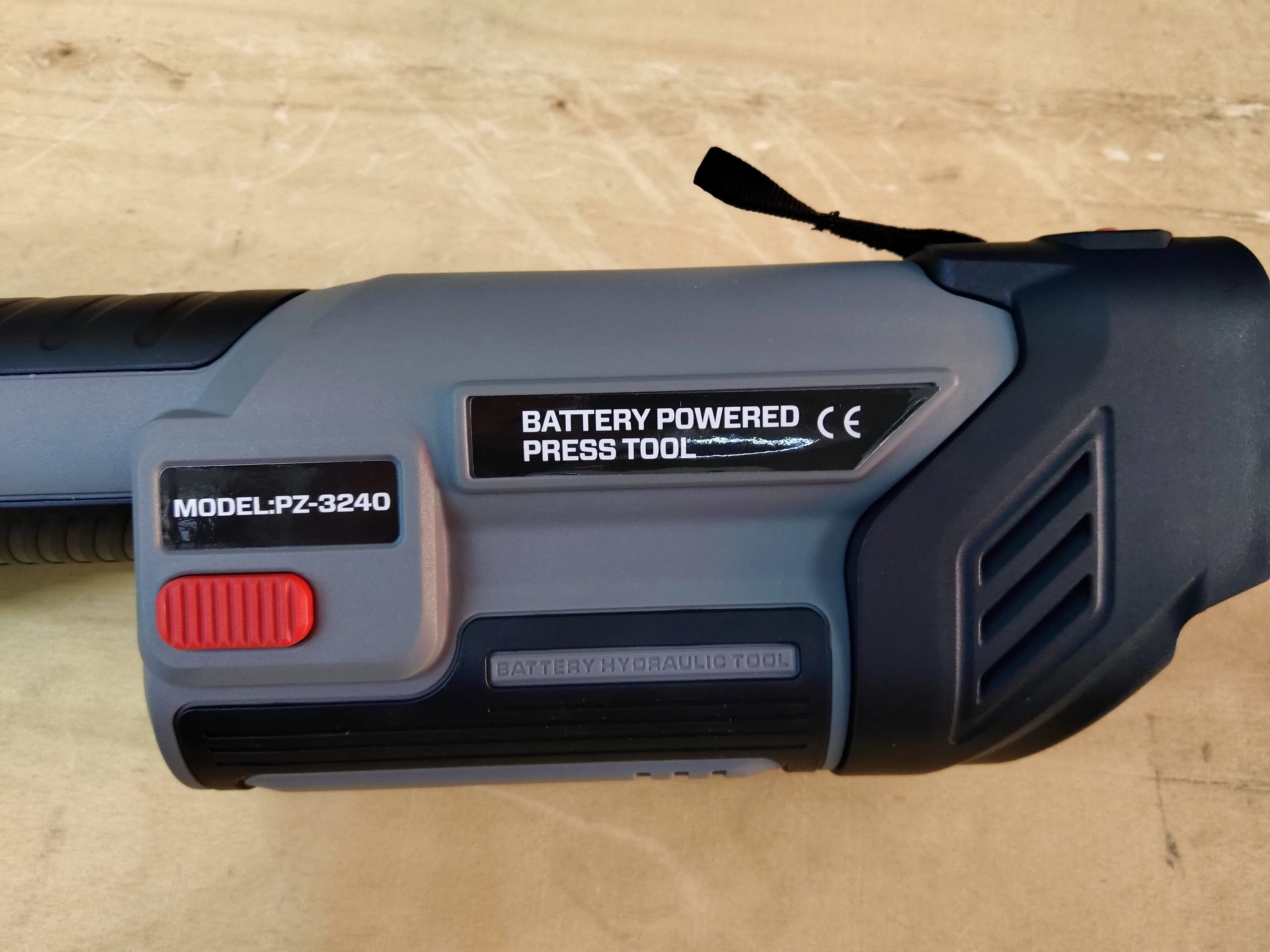

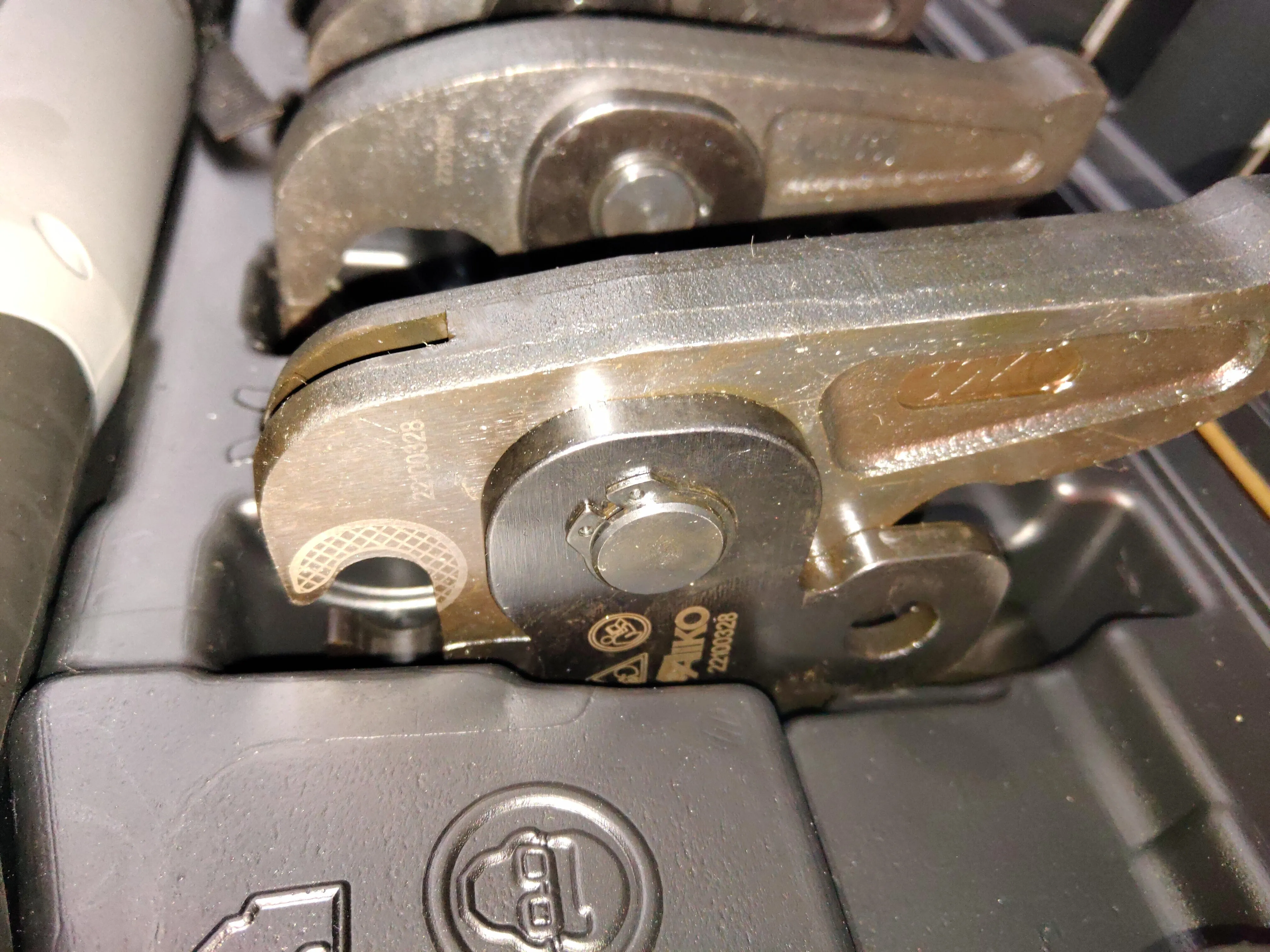

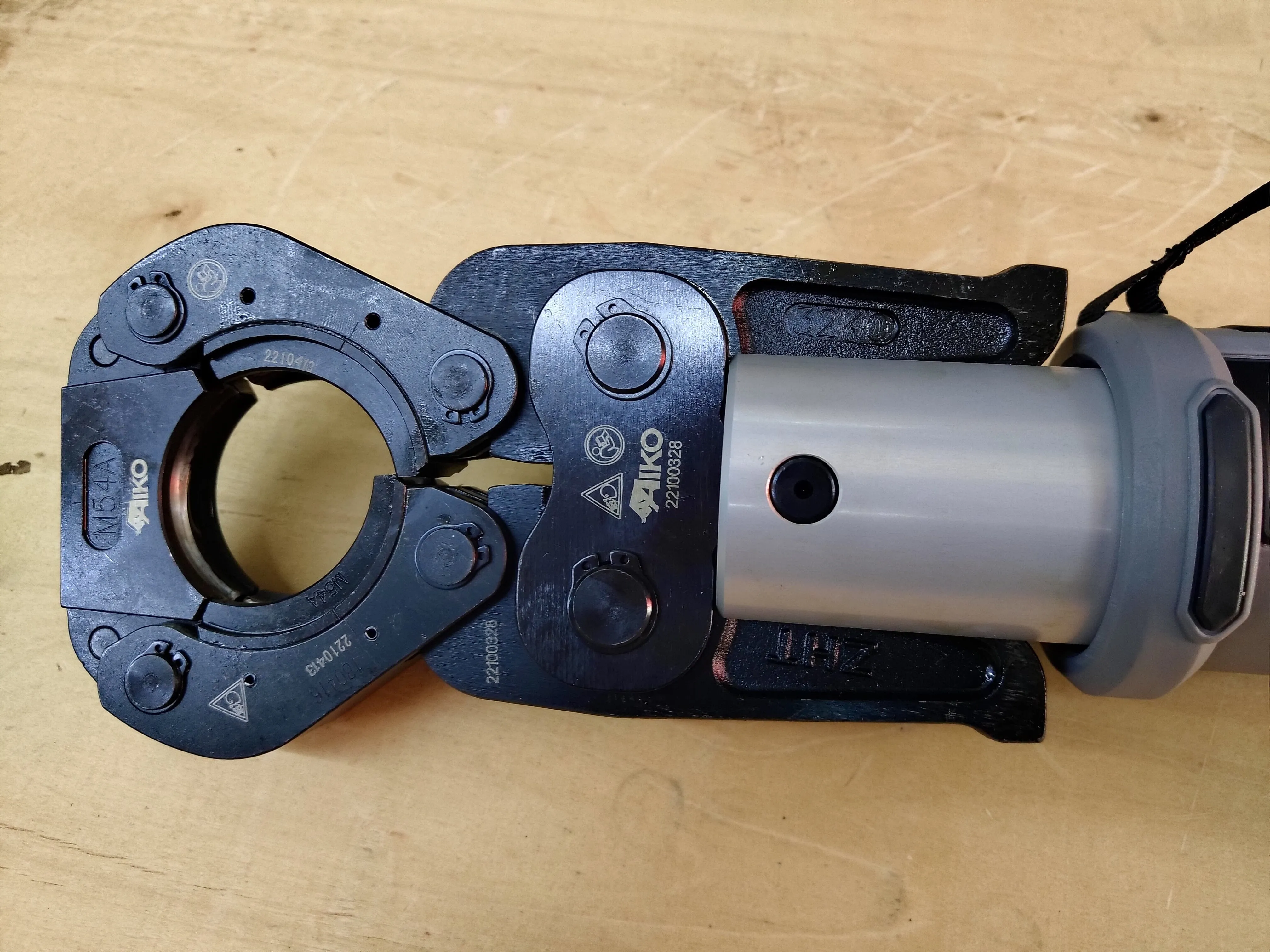

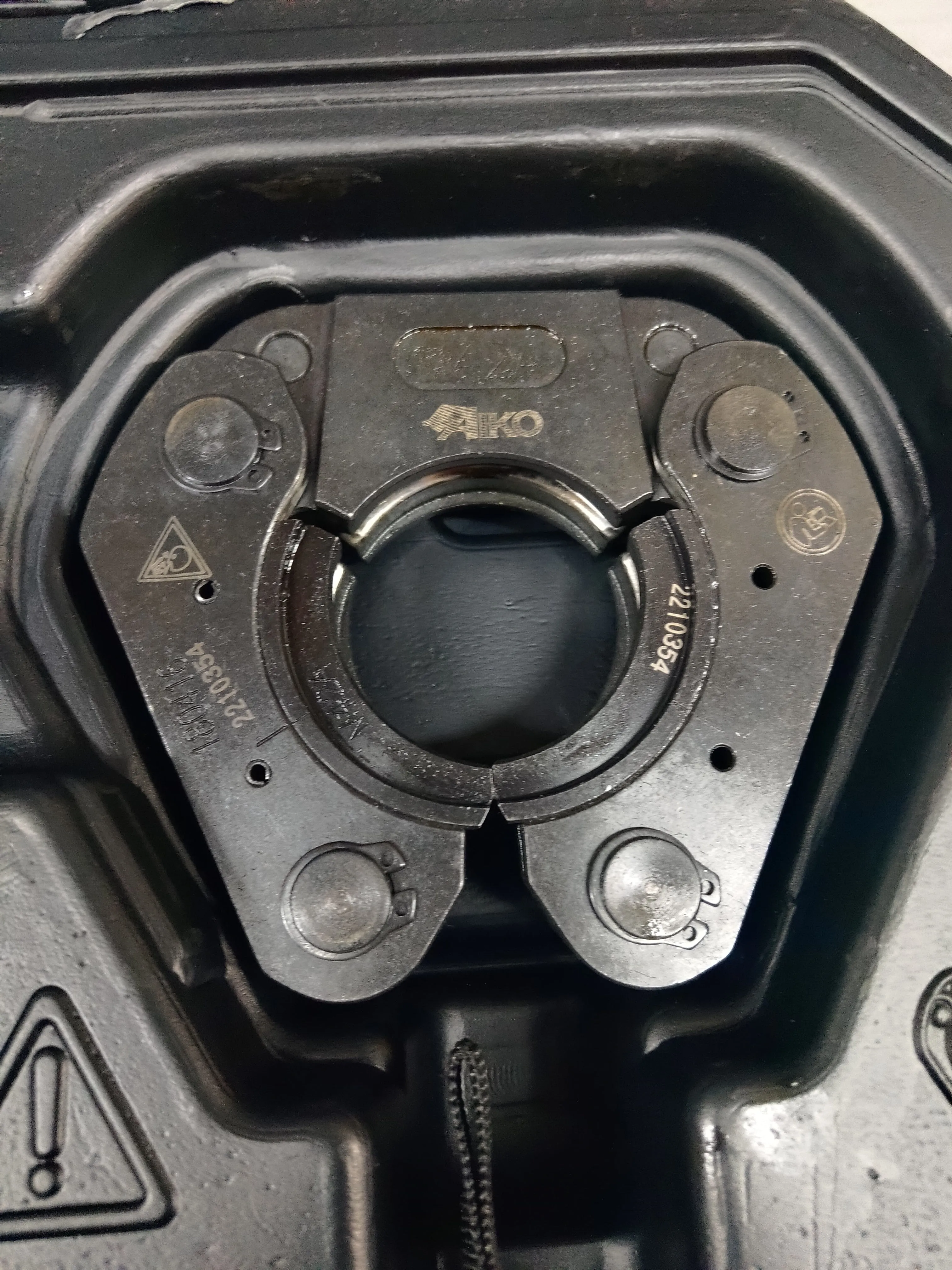

Aiko PZ-3240 Stainless Steel Pipe Crimping Tool Clamper M Type Jaw Battery 18V | Model: PZ-3240 JAW

Descriptions:

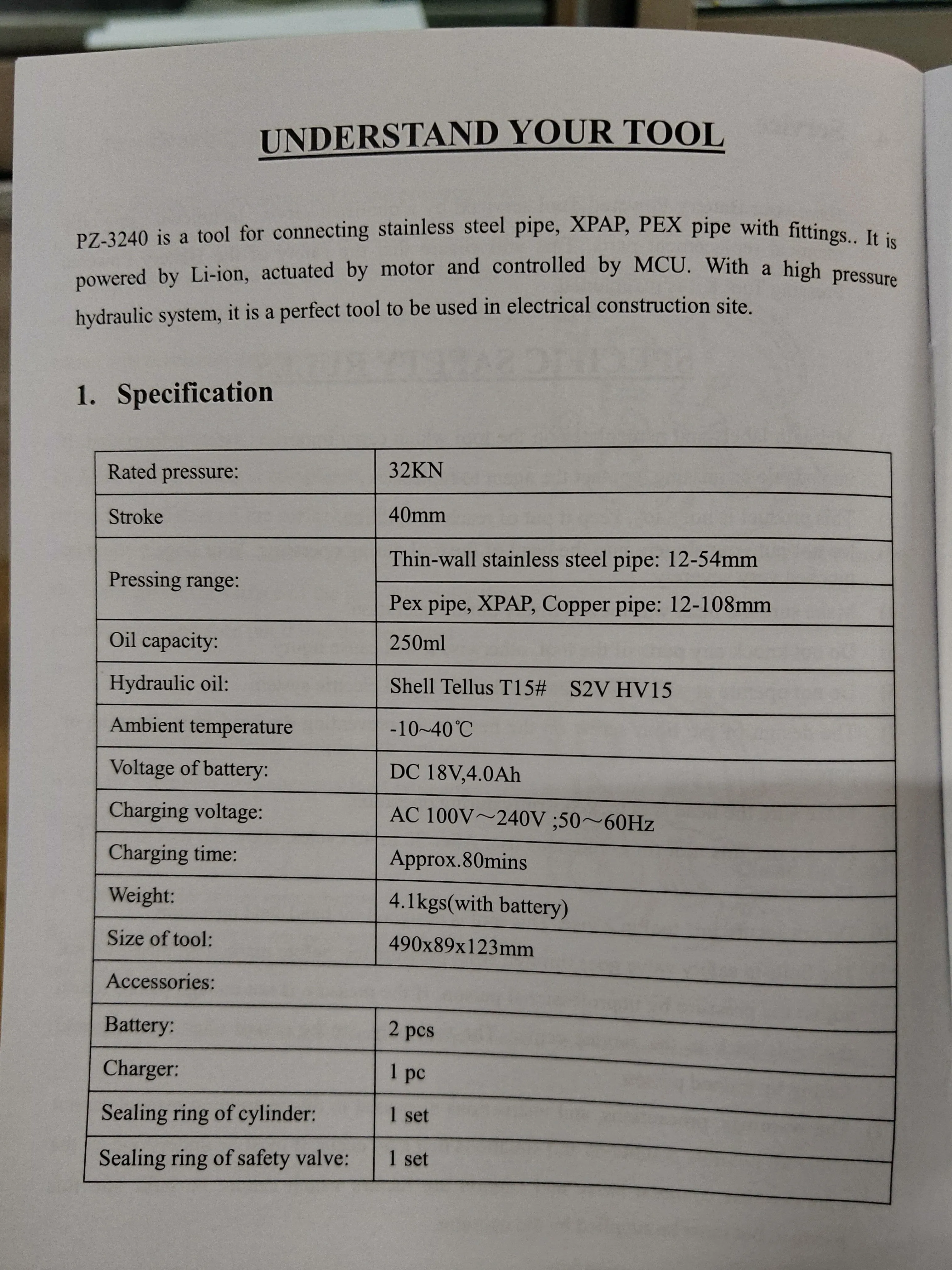

PZ-3240 is a tool for connecting stainless steel pipe. XPAP. PEX pipe with fittings. It is powered by Li-ion. actuated by motor and controlled by MCU. With a high pressure hydraulic system. it is perfect tool be used in electrical construction site.

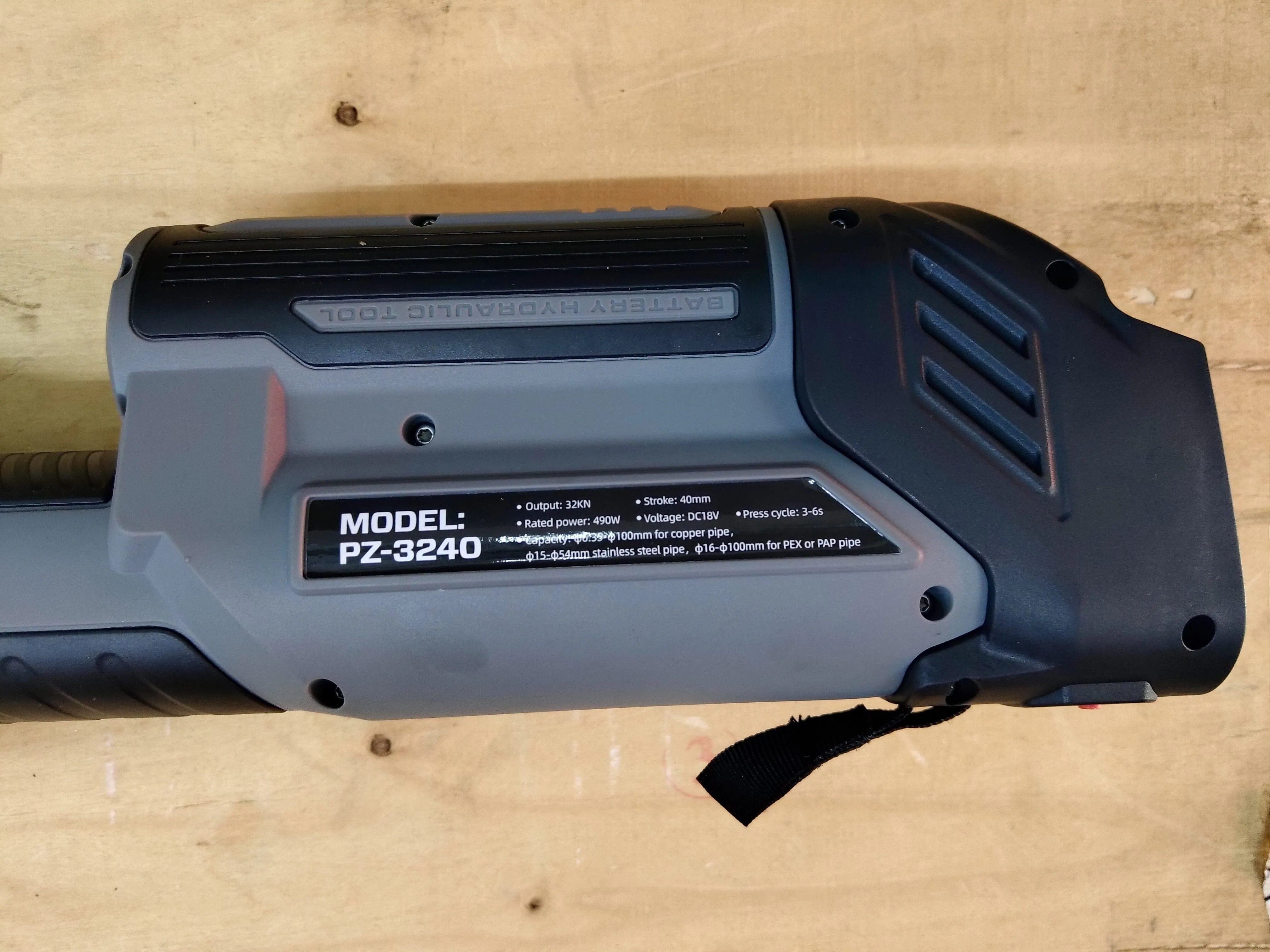

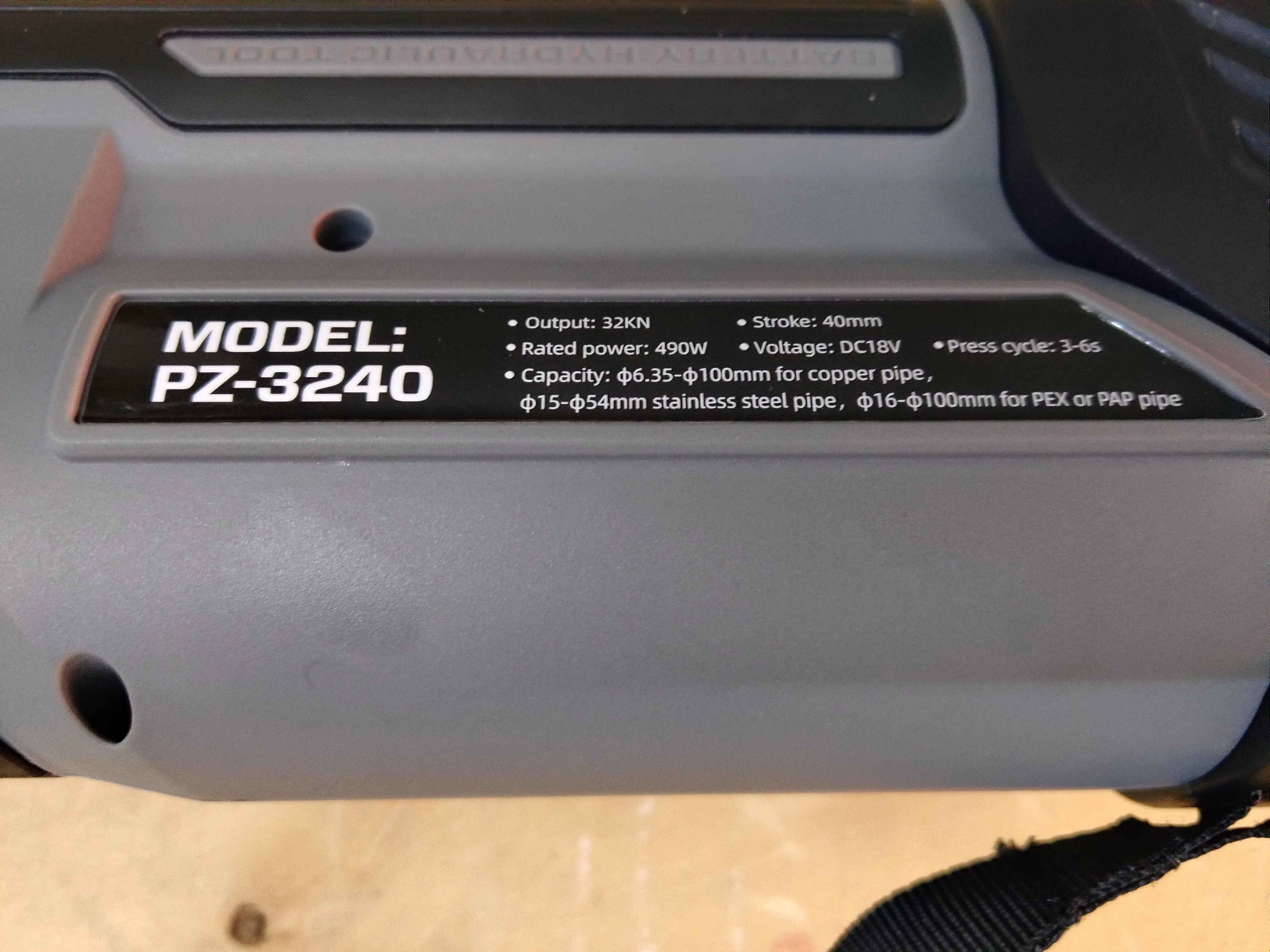

Specifications:

• Rated Pressure: 32KN
• Stroke: 40mm
• Pressing range:
• Thin-wall stainless pipe: 12-54mm
• Pex pipe. XPAP. Copper pipe: 12-108mm
• Oil capacity: 250ml
• Hydraulic oil: Shell Tellus T15# S2V HV15
• Ambient temperature: -10~40C

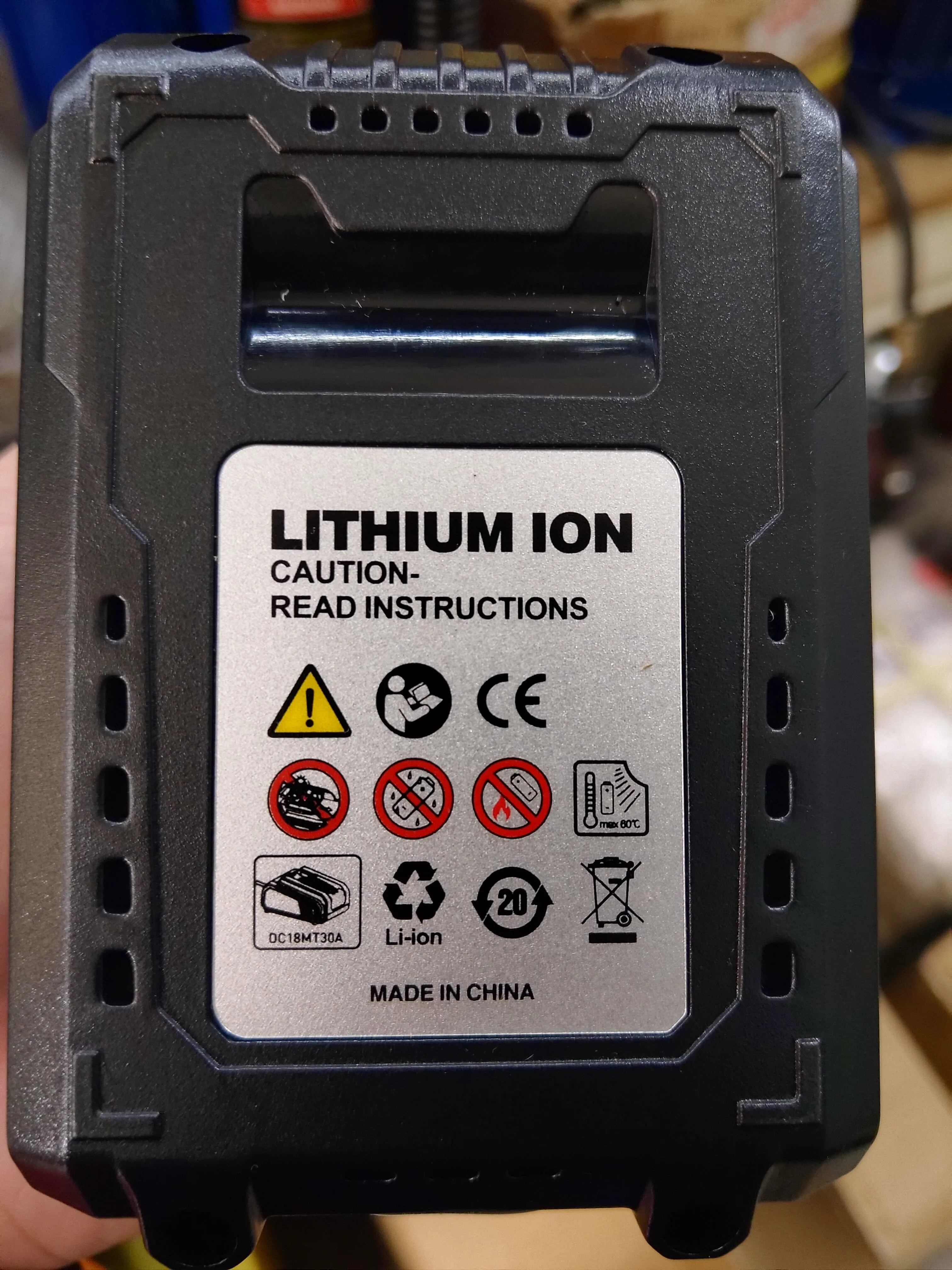

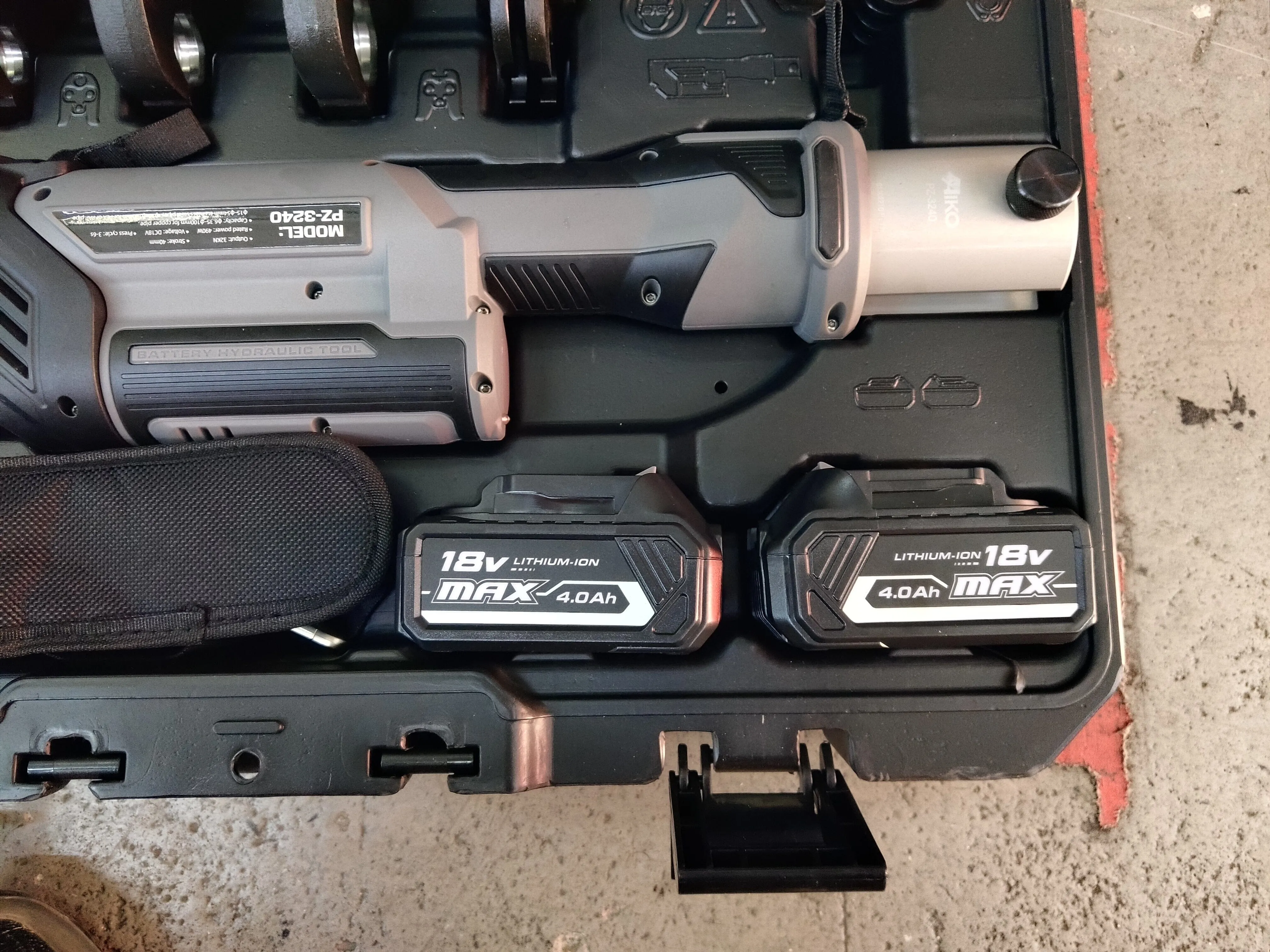

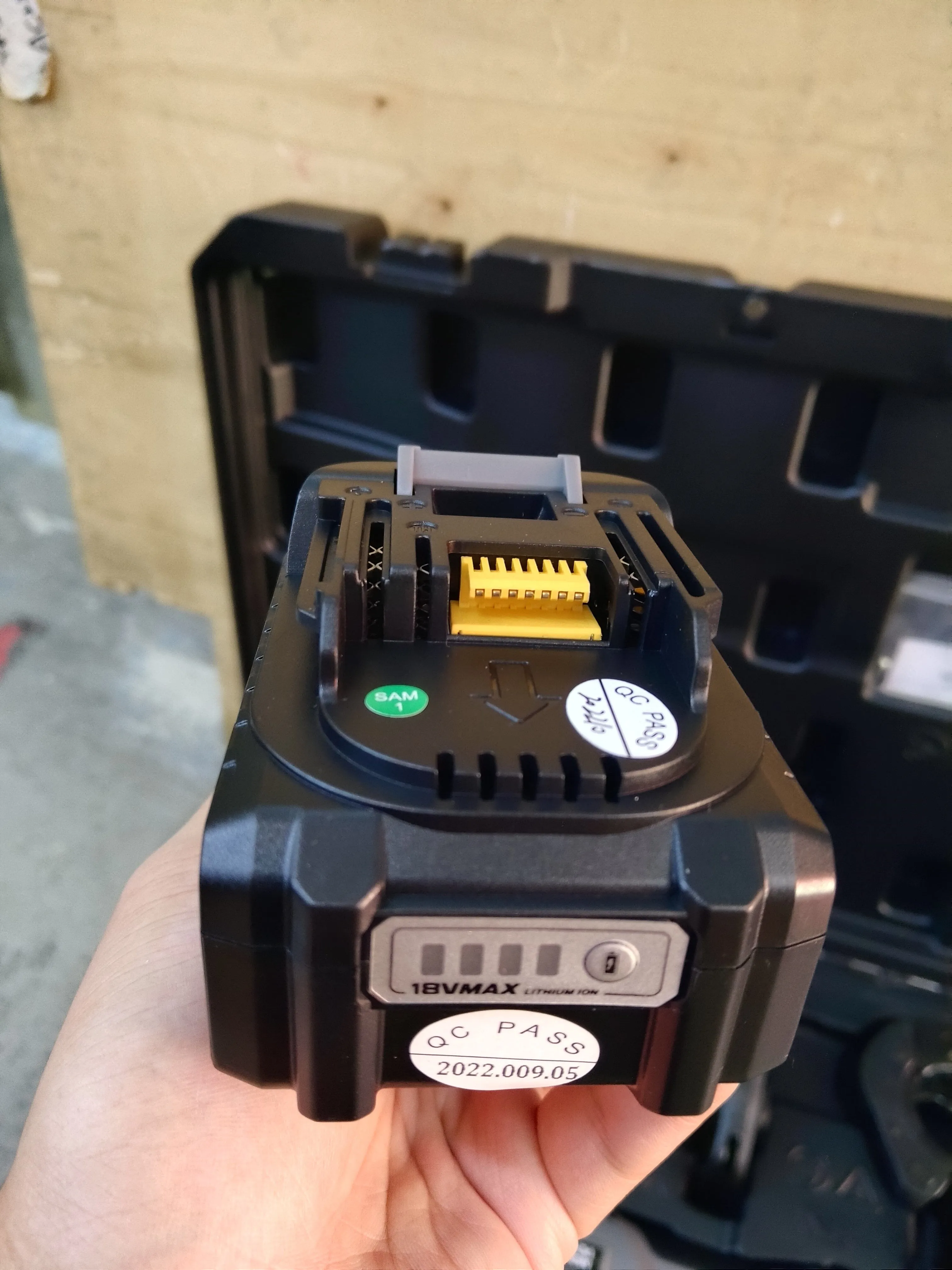

• Voltage of battery: DC18V. 4.0Ah
• Charging Voltage: AC100V~240V; 50~60Hz
• Charging time: Approx. 80mins
• Weight: 4.1kgs(with battery)
• Size of tool: 490 x 89 x 123mm

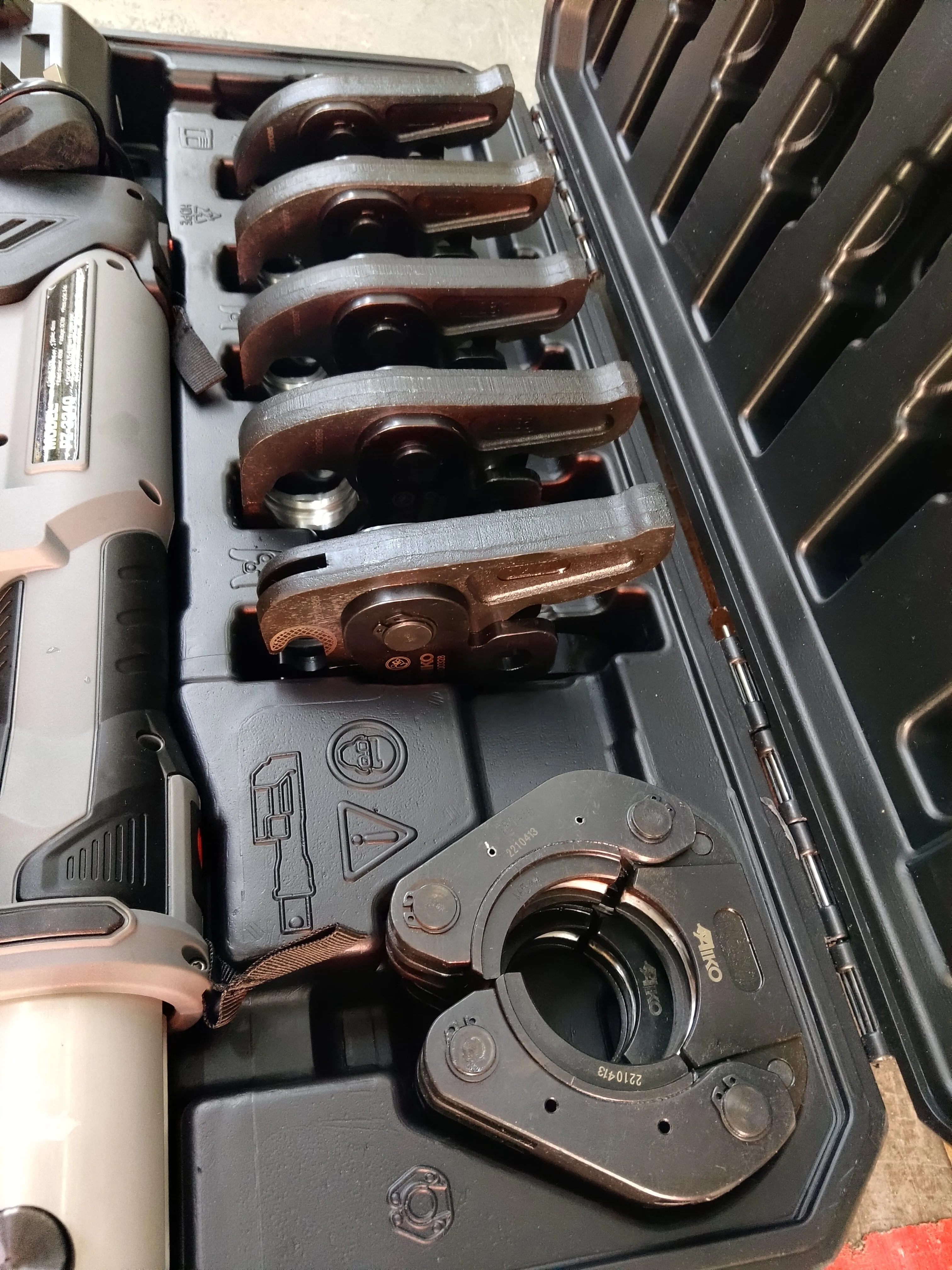

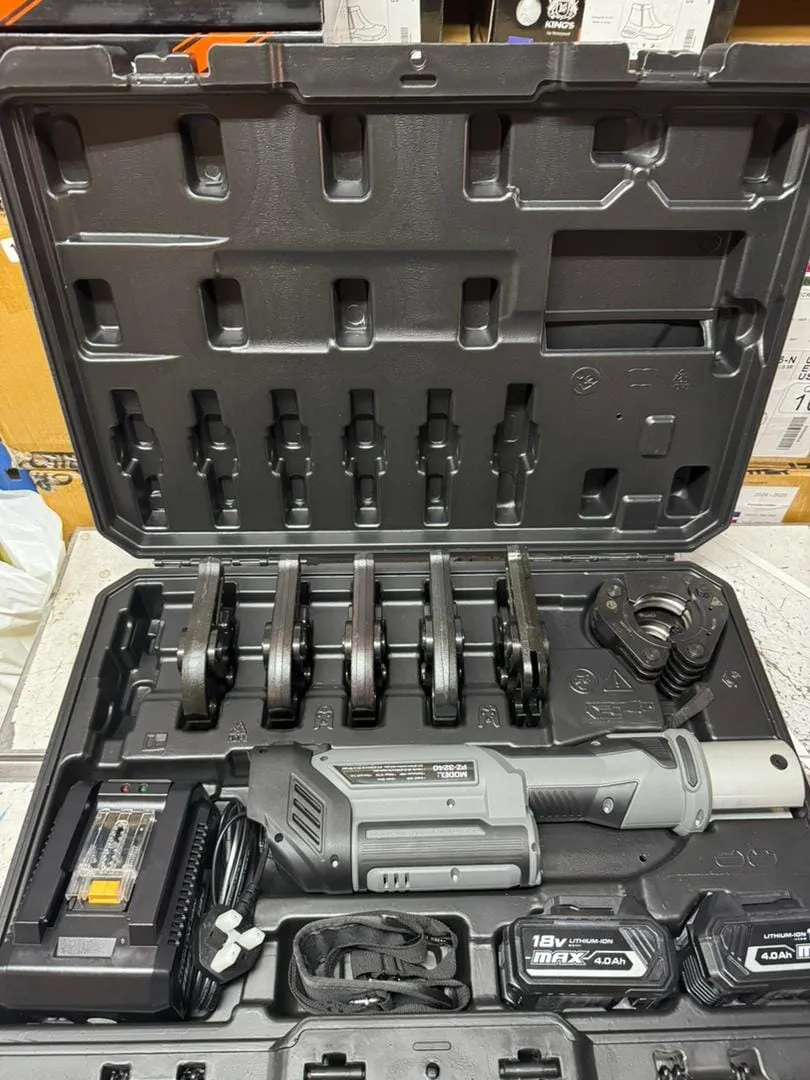

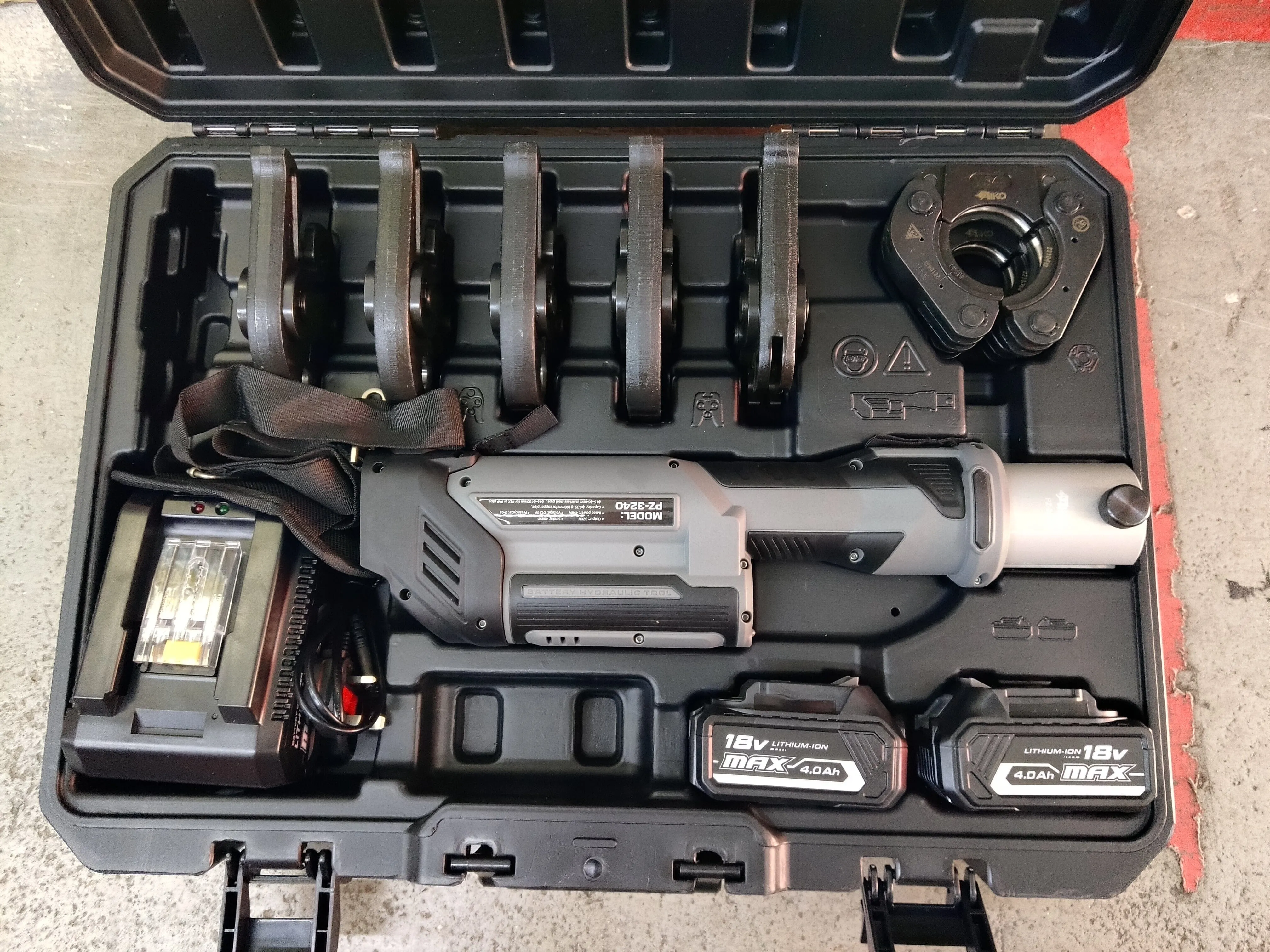

Accessories:

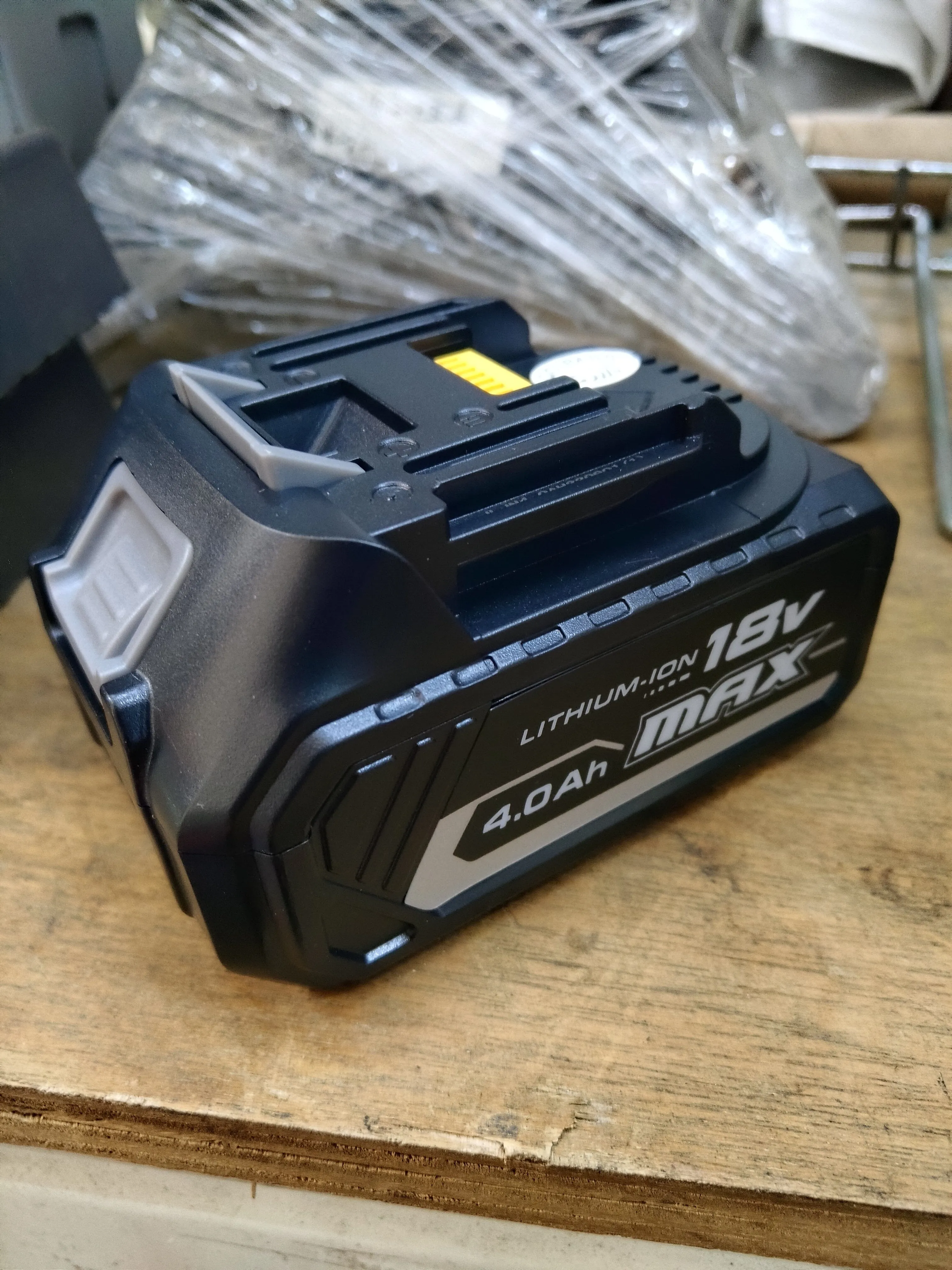

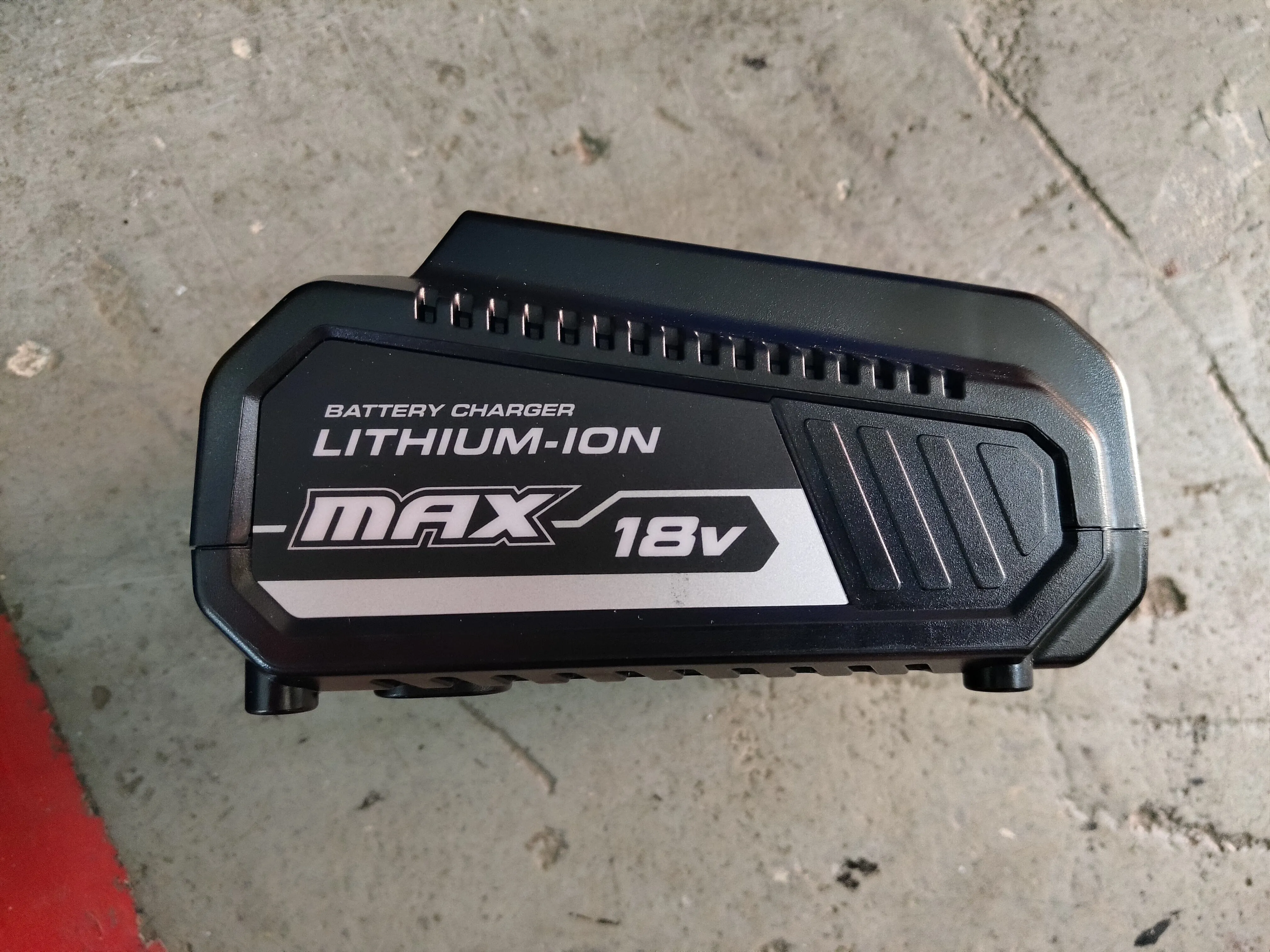

• Battery: 2pcs

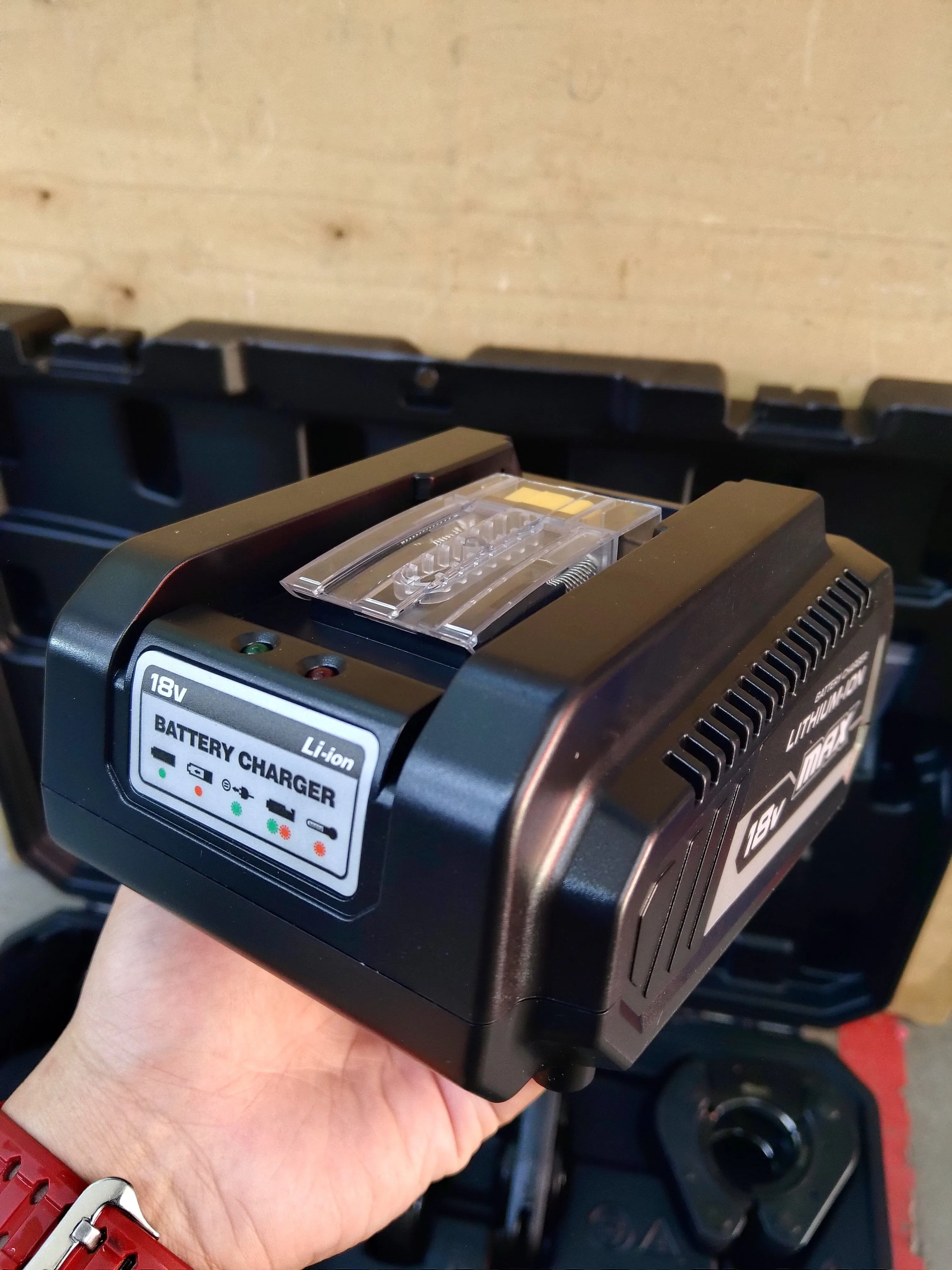

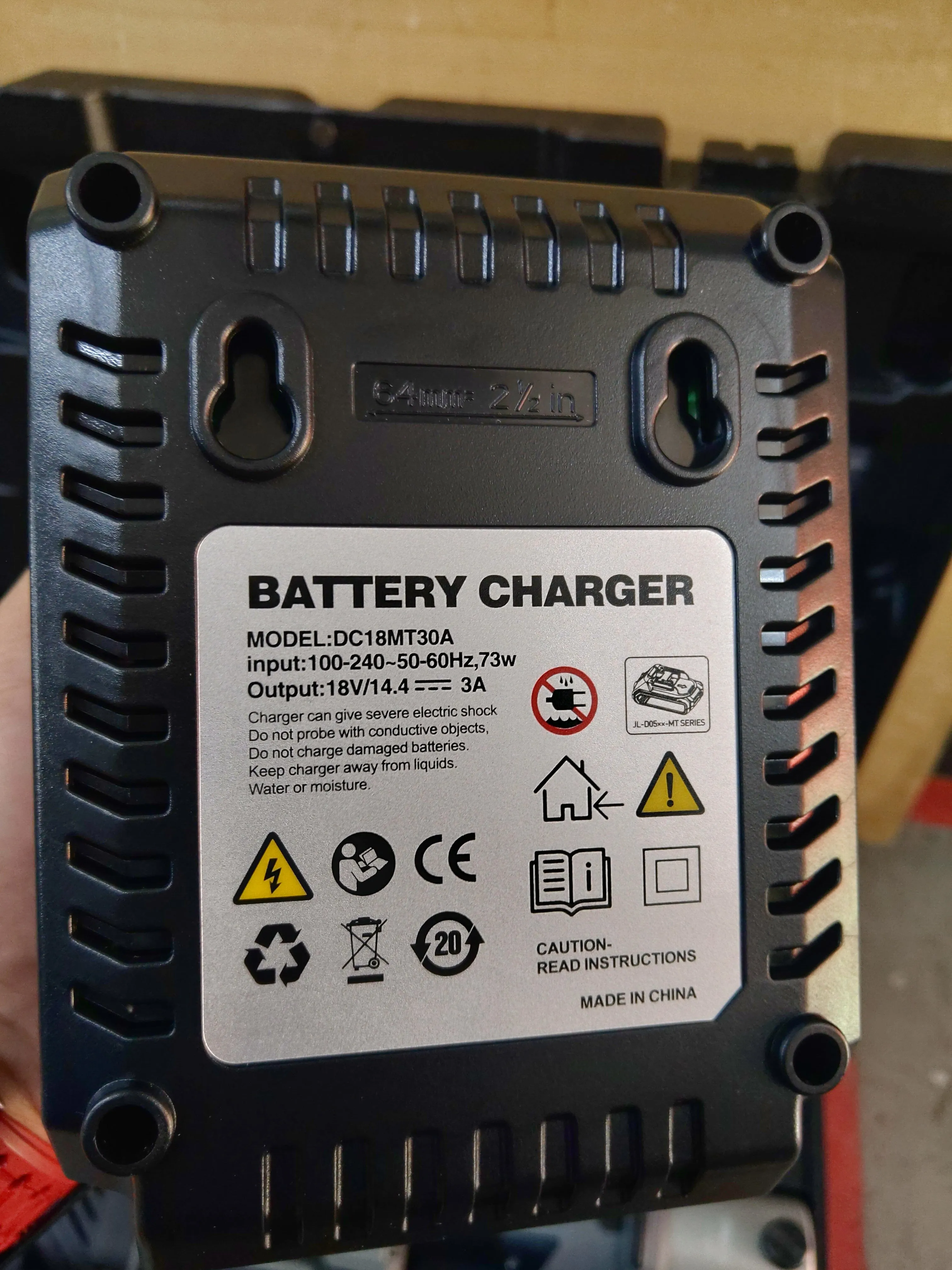

• Charger: 1pc

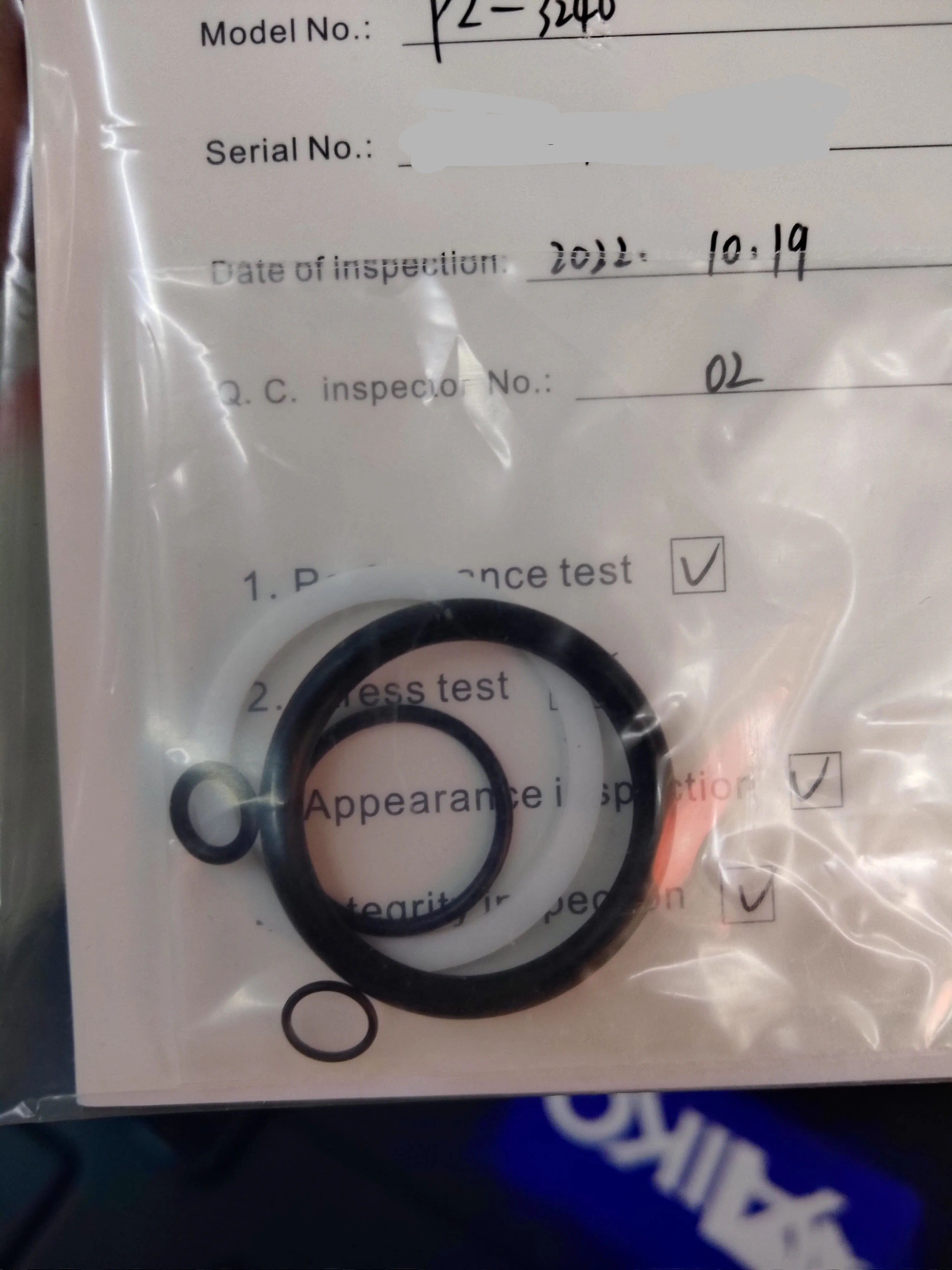

• Sealing ring of cylinder: 1set
• Sealing ring of safety valve: 1set
