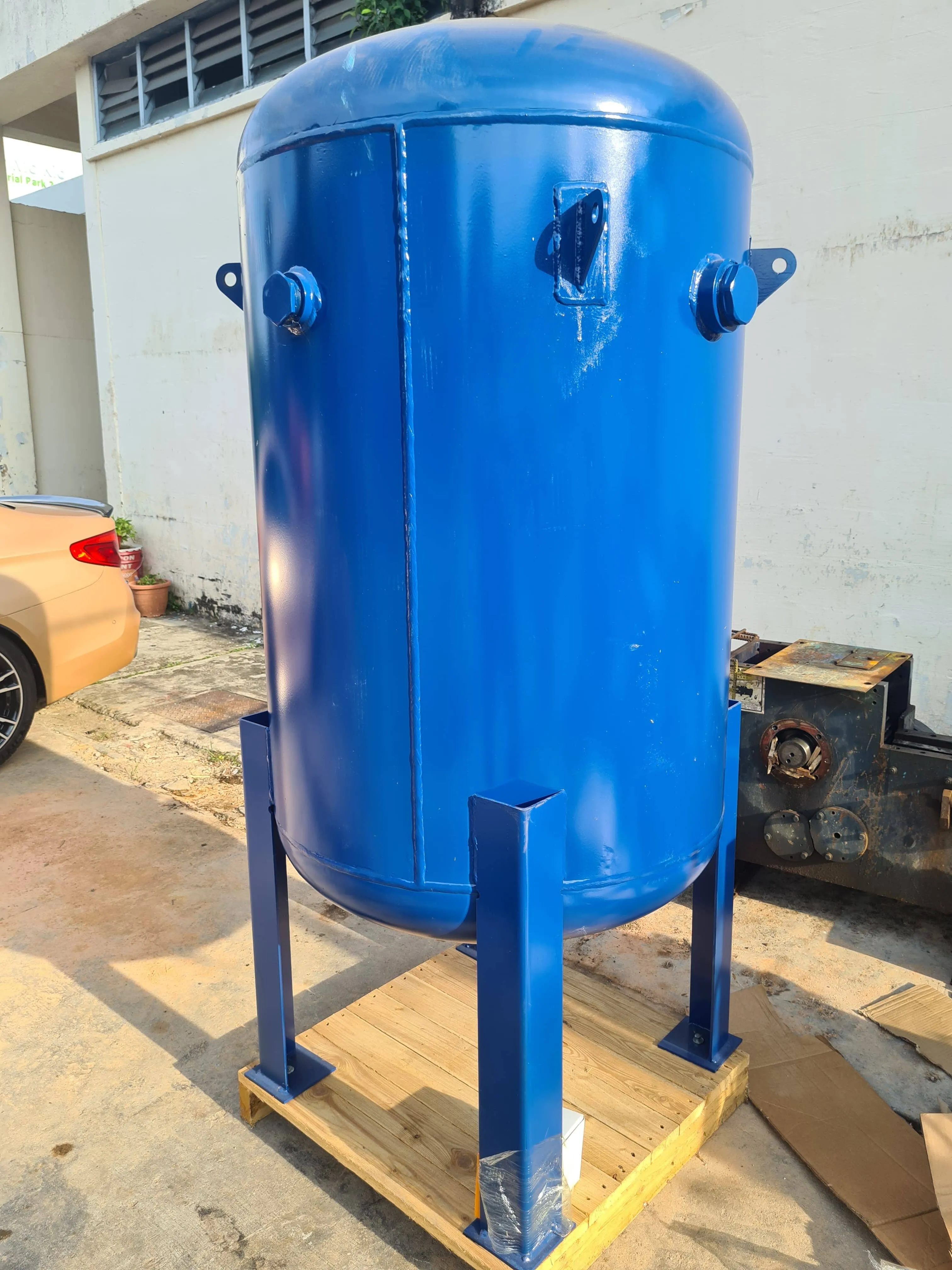

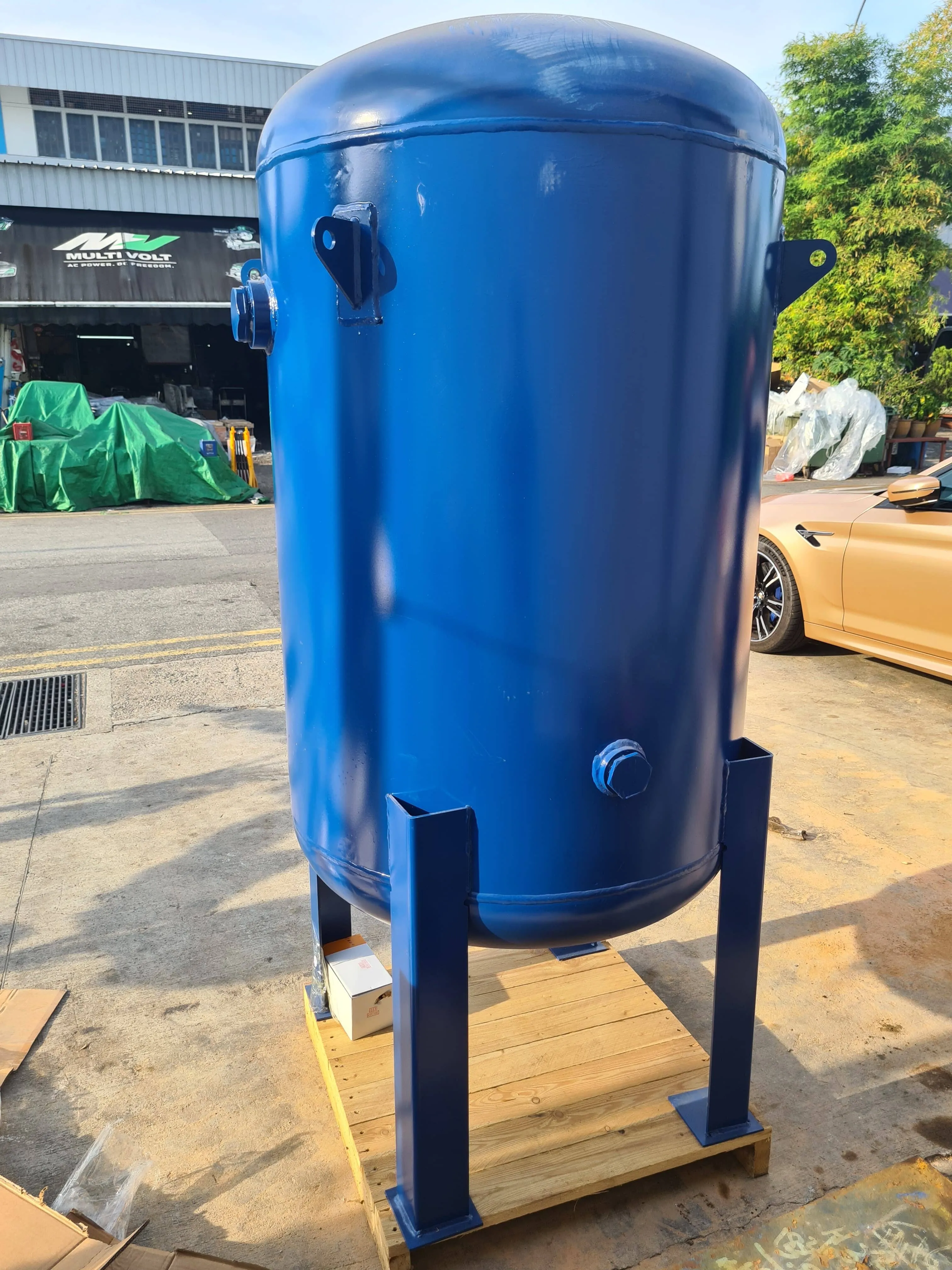

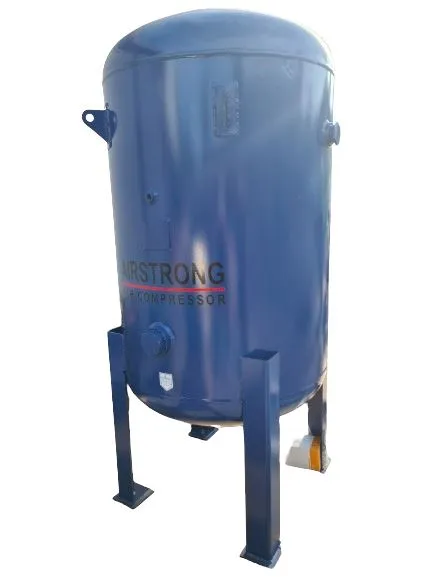

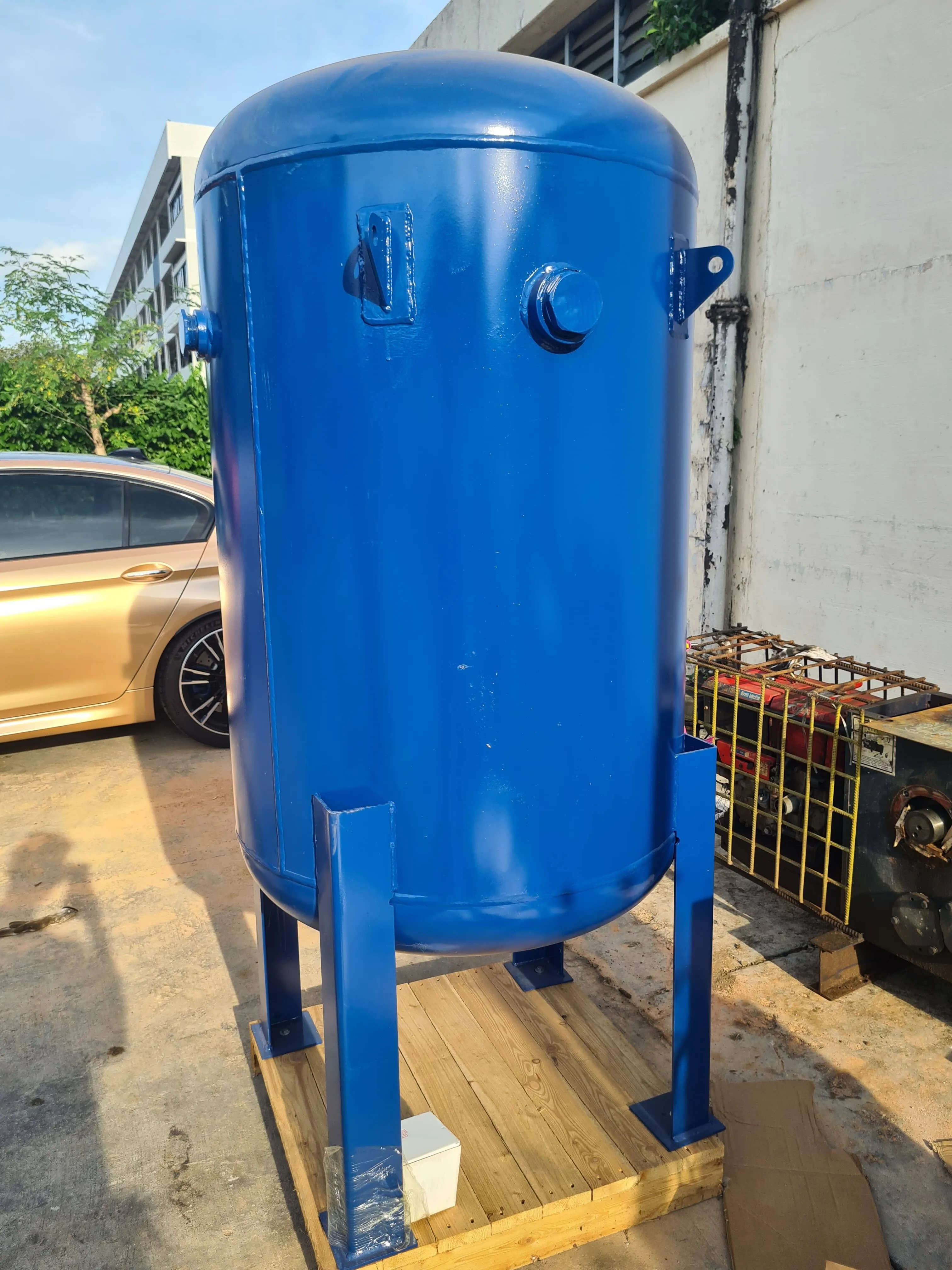

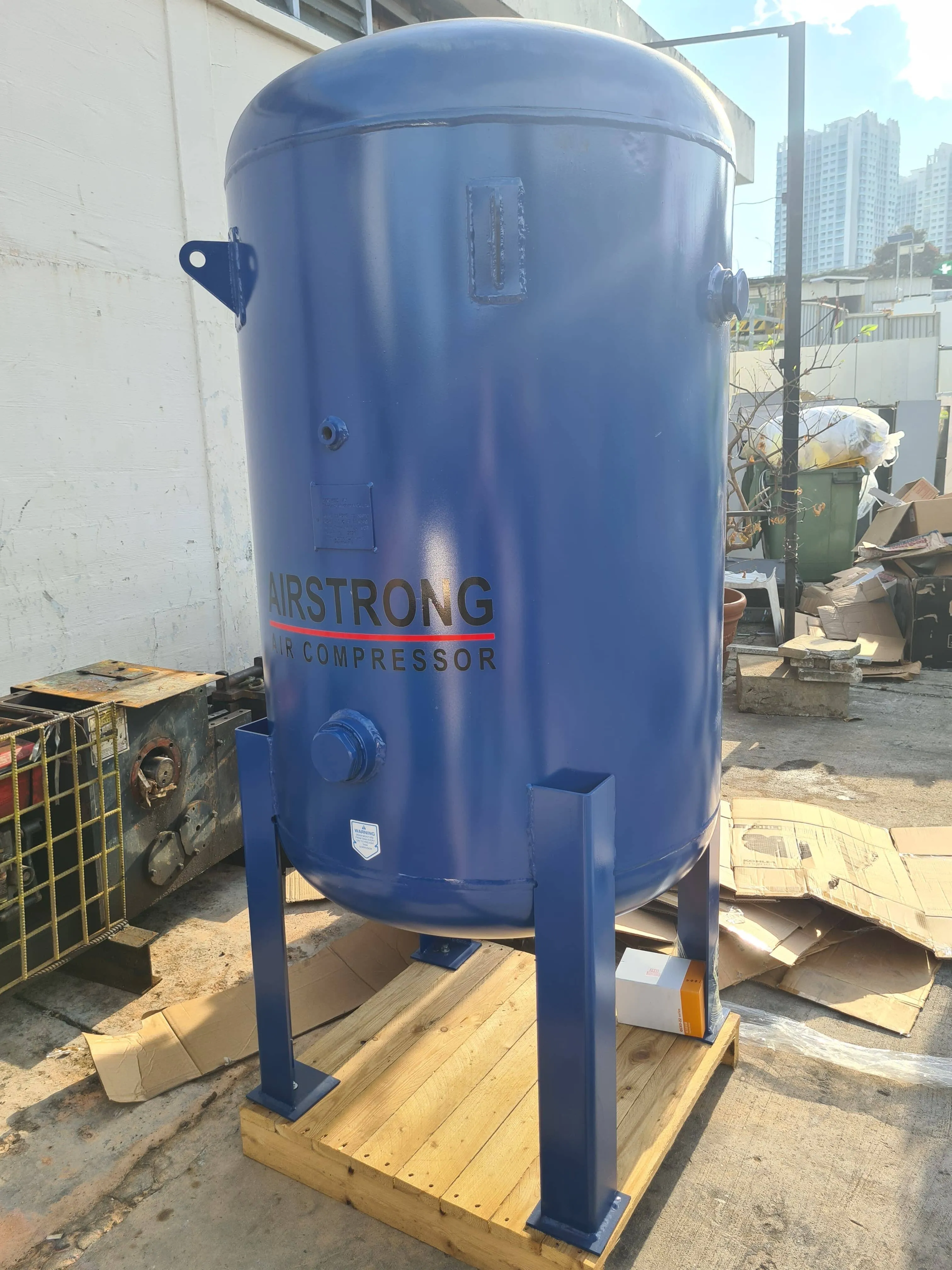

Airstrong 1000L Vertical Tank 10Bar Asme | Model : TANK-AV1000

Note:The real color of the item may be slightly different from the pictures shown on website

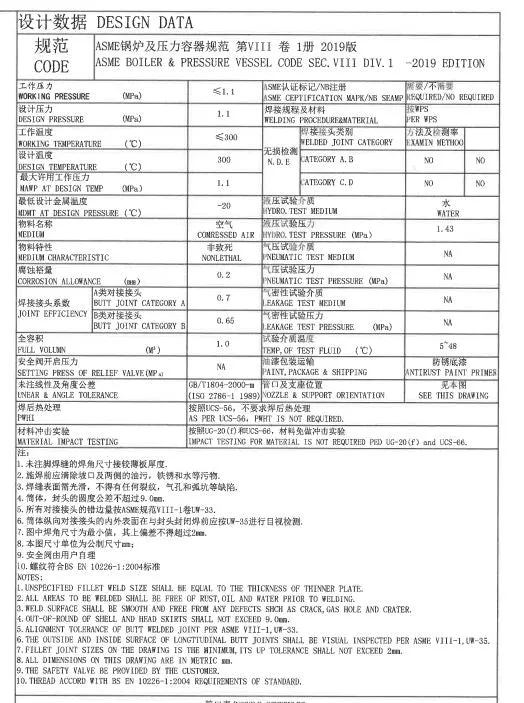

Specifications :

• Model :TANK-AV1000
• Tank Capacity : 1000 L
• Working pressure : <1.1 MPa
• Design pressure : 1.1 MPa
• Working Temperature : <300C
• Design Temperature : 300C
• MAWP at design pressure : - 20C
• Medium : Comressed air
• Corrosion allowance : 0.2 mm
• Joint Efficiency :
• Butt joint category : 0.7
• Butt Joint category : 0.65
• Full Volume : 1 m3
• Pressure gauge and safety valve included.
