Product Details
＋

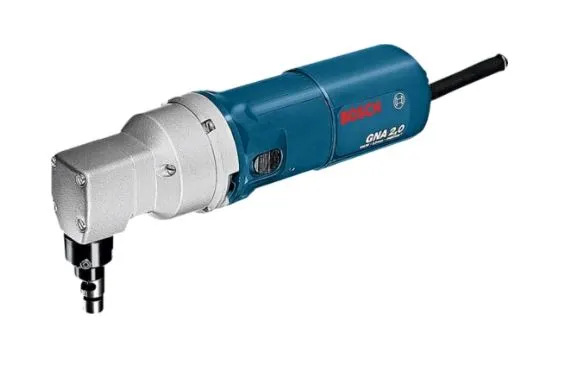

Bosch GNA 2.0 Professional Nibbler | Model : B-GNA2.0
Features :
- 500 watts of power
- Slim. narrow design for optimum handling
- Swivel-mounted die plate for better manoeuvrability in corners
Specifications :
| Additional data | |
|---|---|
| Cutting capacity in steel (400 N/mm). max. | 2mm |
| No-load stroke rate | 2.400spm |
| Material that can be processed | Steel up to 400 N/mm at 2.0 mm |
| Cutting track width | 6mm |
| Pre-drilling for interior cut-outs | 16mm |
| Smallest radius | 3mm |
| Stroke rate under load | 1.500spm |
| Weight | 2kg |
| Tool dimensions (length) | 275mm |
| Tool dimensions (height) | 127mm |
| Cutting capacity in steel (600 N/mm). max. | 1.4mm |
| Cutting capacity in steel (800 N/mm). max. | 1mm |
| Cutting capacity in aluminium (200 N/mm). max. | 2.5mm |
| Electric specifications | |
|---|---|
| Rated input power | 500W |
| Power output | 270W |
| Total vibration values (Cutting sheet metal) | |
|---|---|
| Vibration emission value ah | 11m/s |
| Uncertainty K | 1.5m/s |
Accessories included :
with hex key
- Hex key WAF 2.5 (spare part number 1 907 950 003)
- Die plate2608639900
- Punch2608639013
