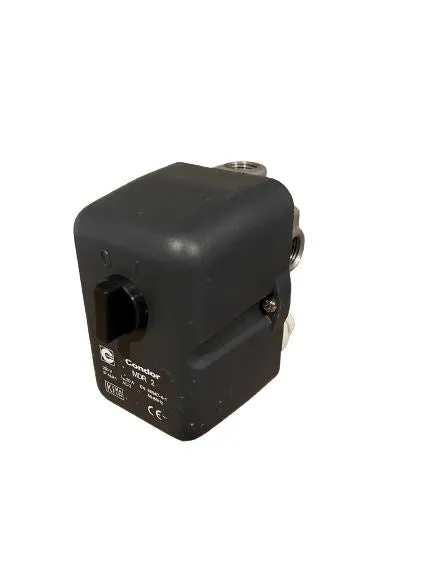

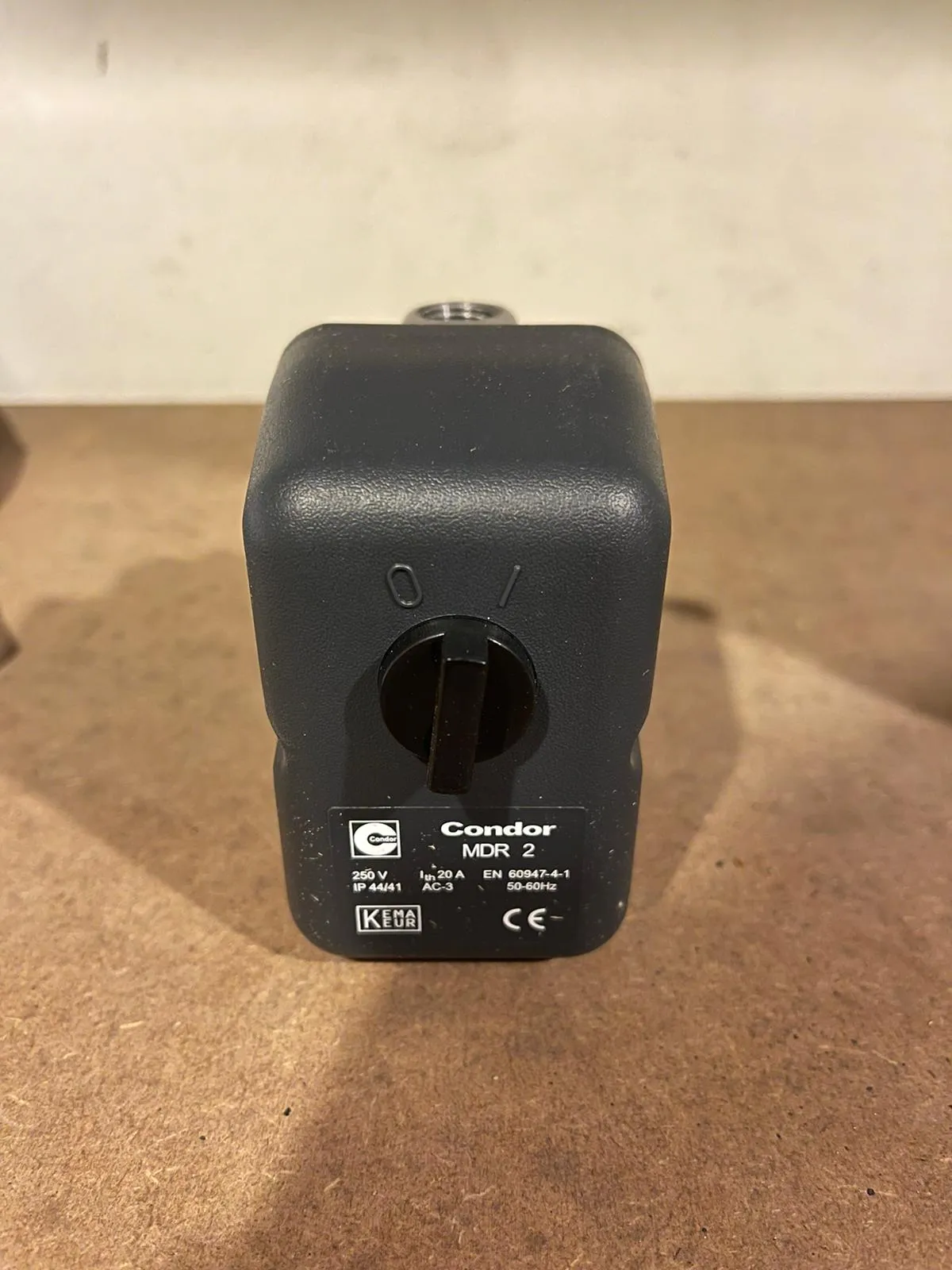

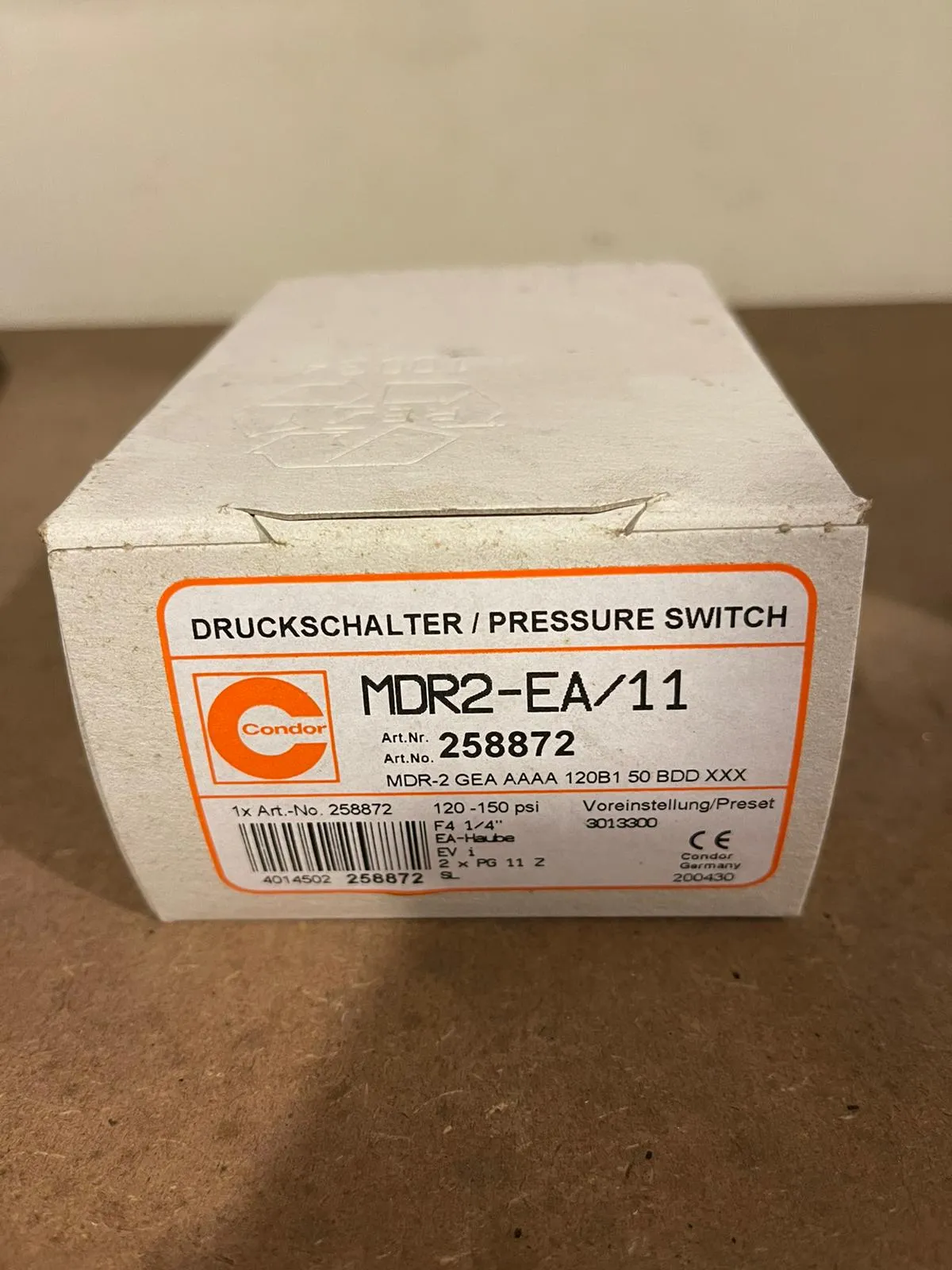

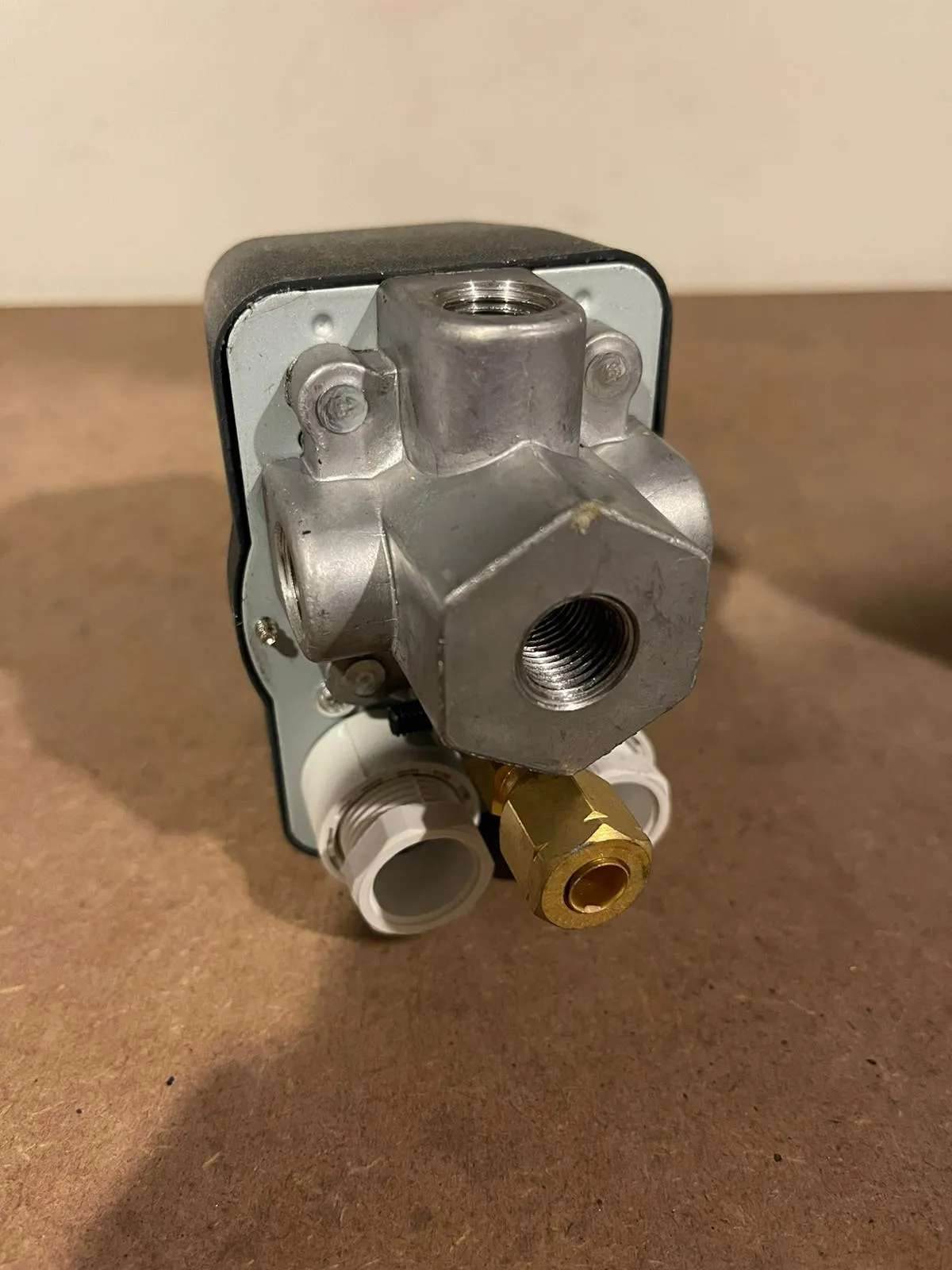

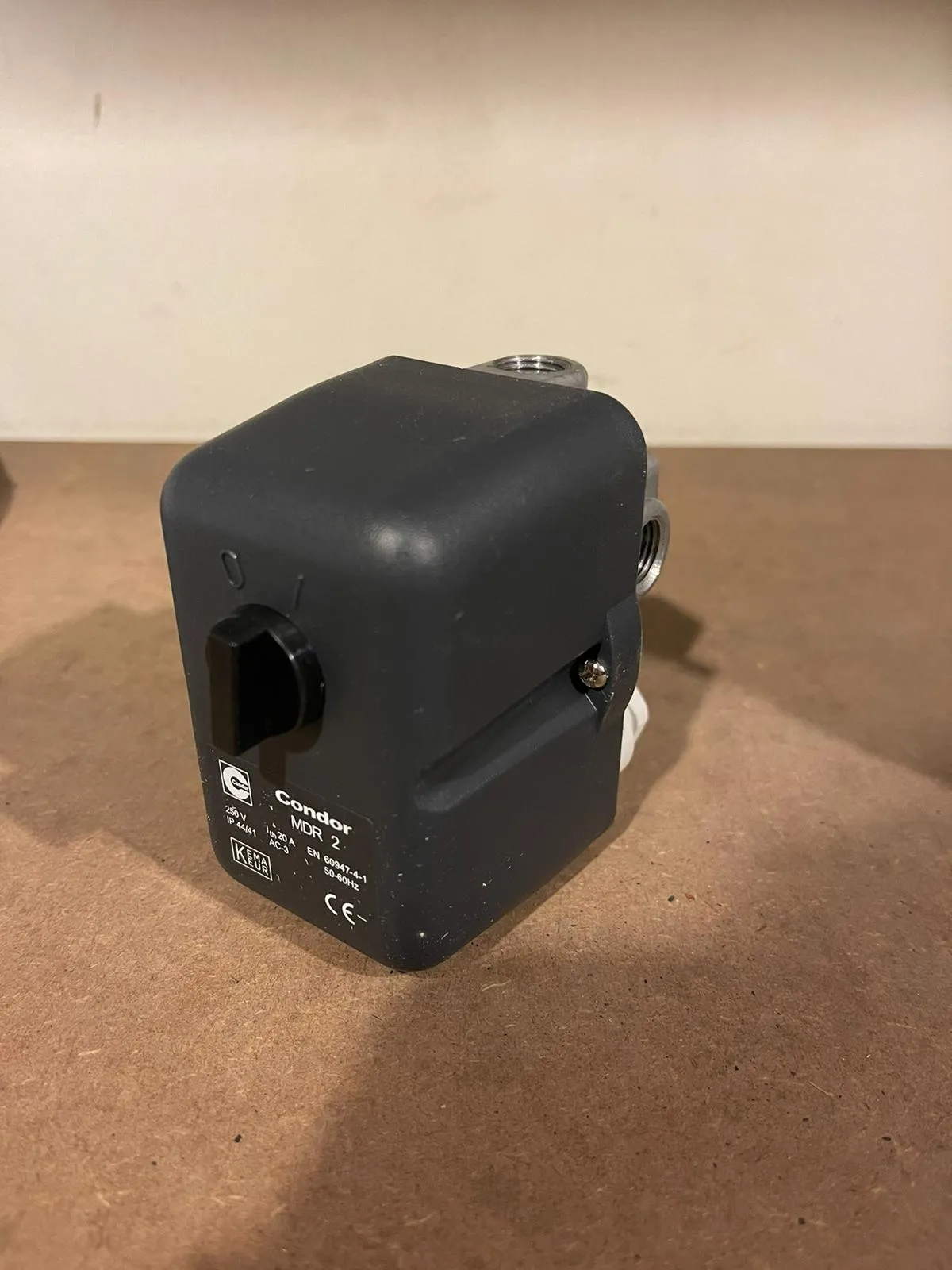

Condor Pressure Switch Mdr2/11 (258872) | Model : SWITCH-MDR2

Features :

• To adjust cut in / cut out pressure turn /- Factory setting 100psi cut in & 125 cut out.
  To adjust differential turn It should not be necessary to make this adjustment (factory set to about 2bar (29psi)


• Note: Setting higher pressure will not get the machine to make more air. and the working pressure of the tank must not be exceeded. Also note the Super16 is a single stage compressor with a max working pressure of 9 bar (140psi)

Specifications :

• Single phase
• Switching capacity 2.2 kW
• Max. cut-out pressure 12 bar
• 2-pole (N.C.)
• Rated operational current at 240V: 20A
