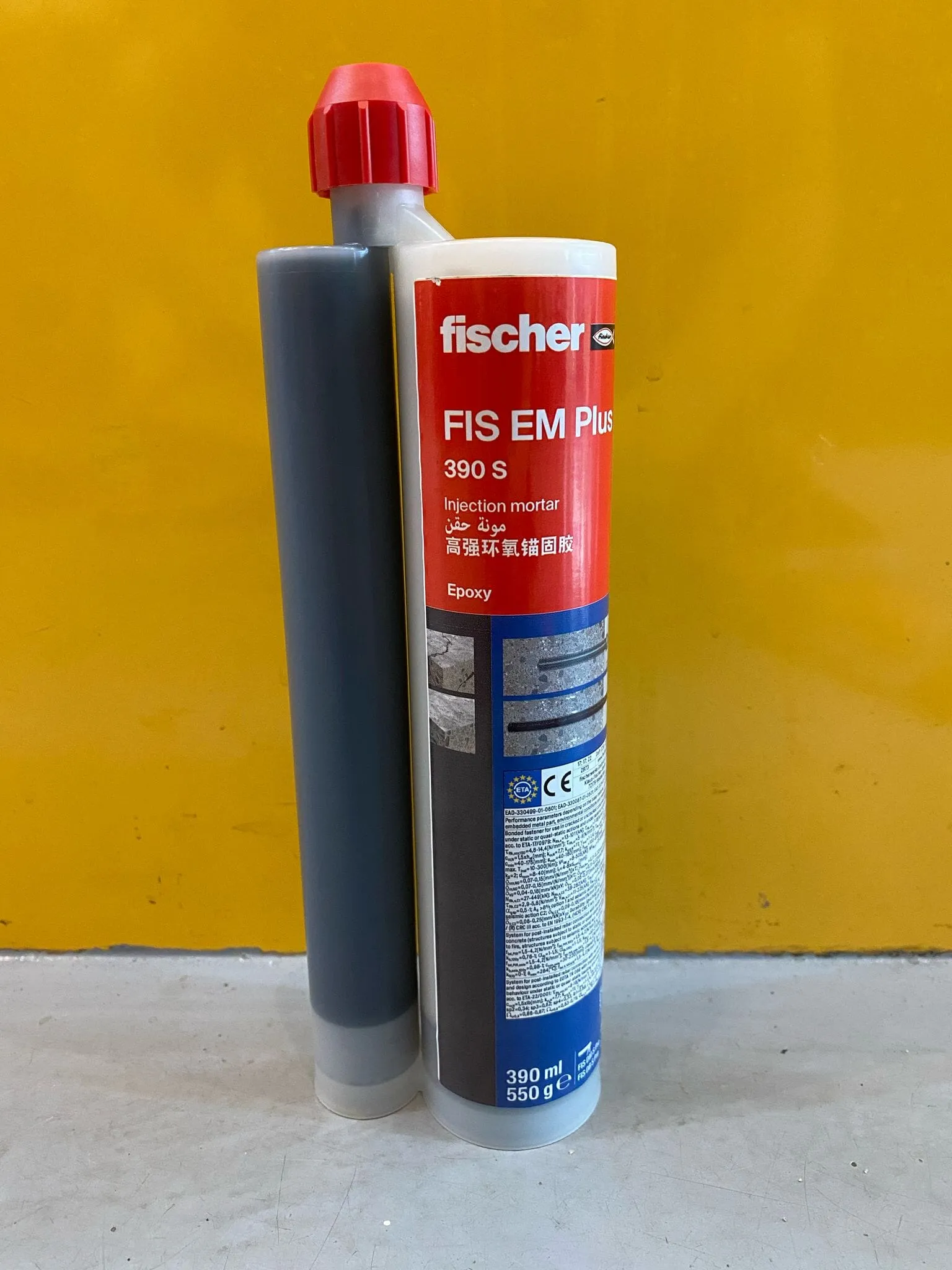

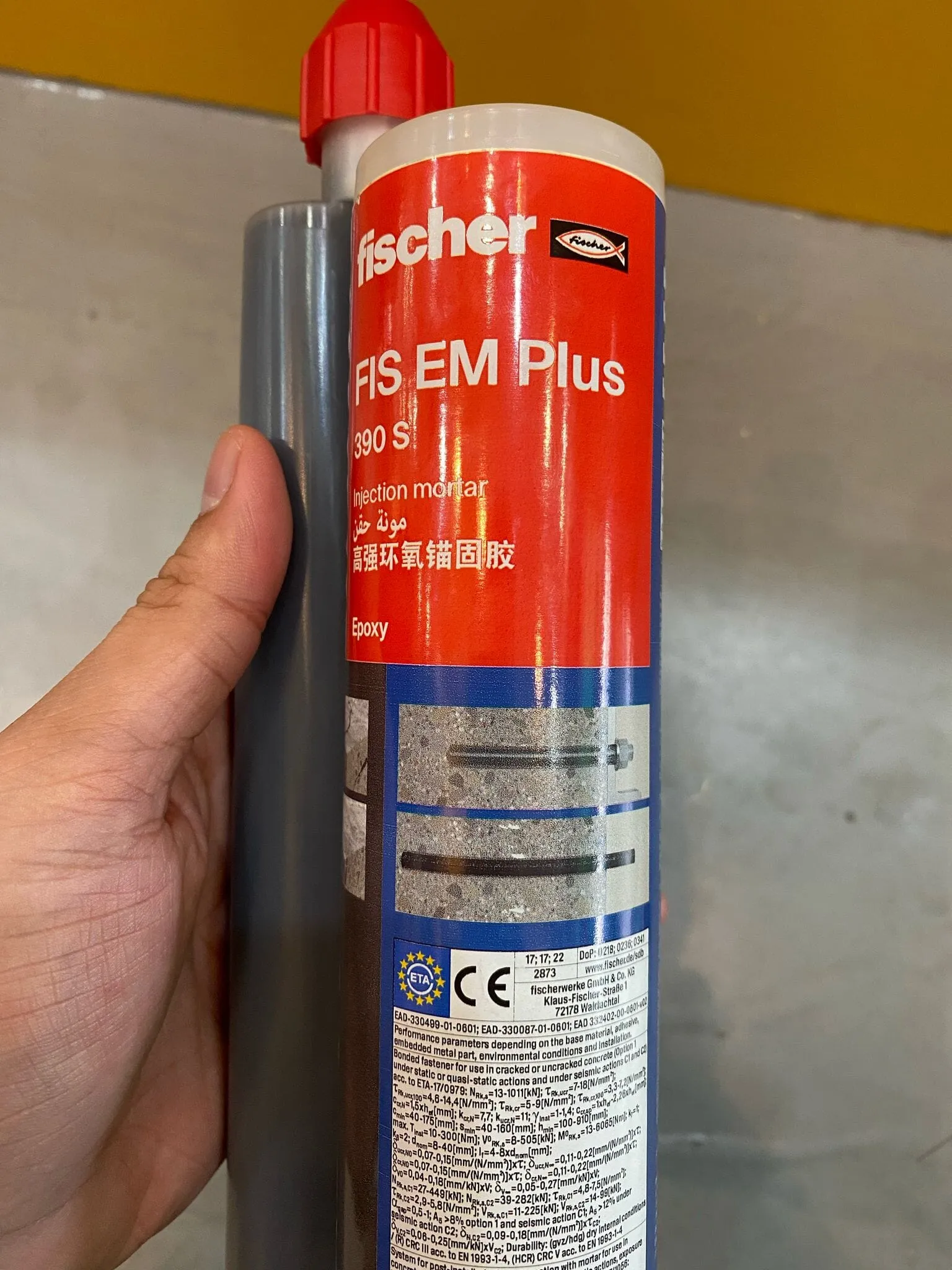

Fischer EM Plus 390 S Injectable Mortar (544155)(RE500)(6pc/Box) Slow Dry | Model: 544155

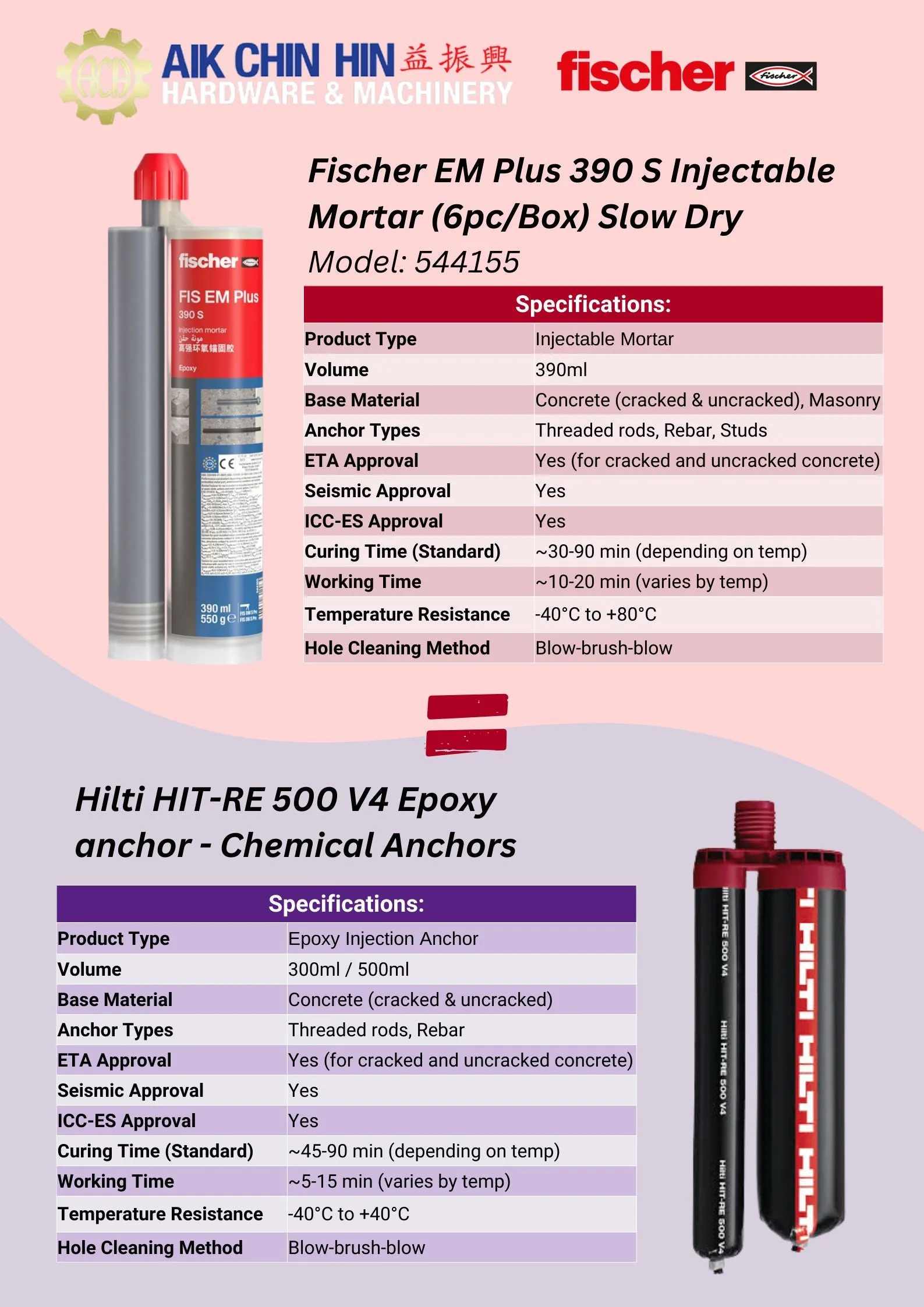

Specification:
| Model | 544155 |
| Product Type | Injection Mortar |
| Volume | 390ml |
| Base Material | Concrete (cracked & uncracked). Masonry |
| Anchor Types | Threaded rods. Rebar. Studs |
| ETA Approval | Yes (for cracked and uncracked concrete) |
| Seismic Approval | Yes |
| ICC-ES Approval | Yes |
| Curing Time (Standard) | ~30-90 min (depending on temp) |
| Working Time | ~10-20 min (varies by temp) |
| Temperature Resistance | -40C to 80C |
| Hole Cleaning Method | Blow-brush-blow |
The fischer injection mortar FIS EM Plus 390 S is a high-quality epoxy resin mortar for maximum load-bearing capacity in cracked and non-cracked concrete.
Alongside the injection mortar. the injection system consists of reinforcement steel. the approved components anchor rod FIS A and internal threaded anchor RG M I.
The anchor rod FIS A can be set with variable anchorage depths. This enables the system to be ideally adjusted to the load to be supported.
This optimises the use of materials.
The epoxy resin mortar is suitable for fixings in indoor and outdoor areas such as shear connectors for concrete layers. high racks. or heavy-duty steel constructions.
The approval of the injection mortar for use in glued laminated or glued solid timber of spruce (Picea abies). fir (Abies alba) or pine (Pinus sylvestris) allows the realisation of high-performance and appealing wood-wood. wood-concrete and wood-steel connections.
