Product Details
＋
Hikoki 36V Cordless Power Tool Set Rotary Hammer Impact Driver Drill Angle Grinder | Model : H-C2-DH3628DA-E

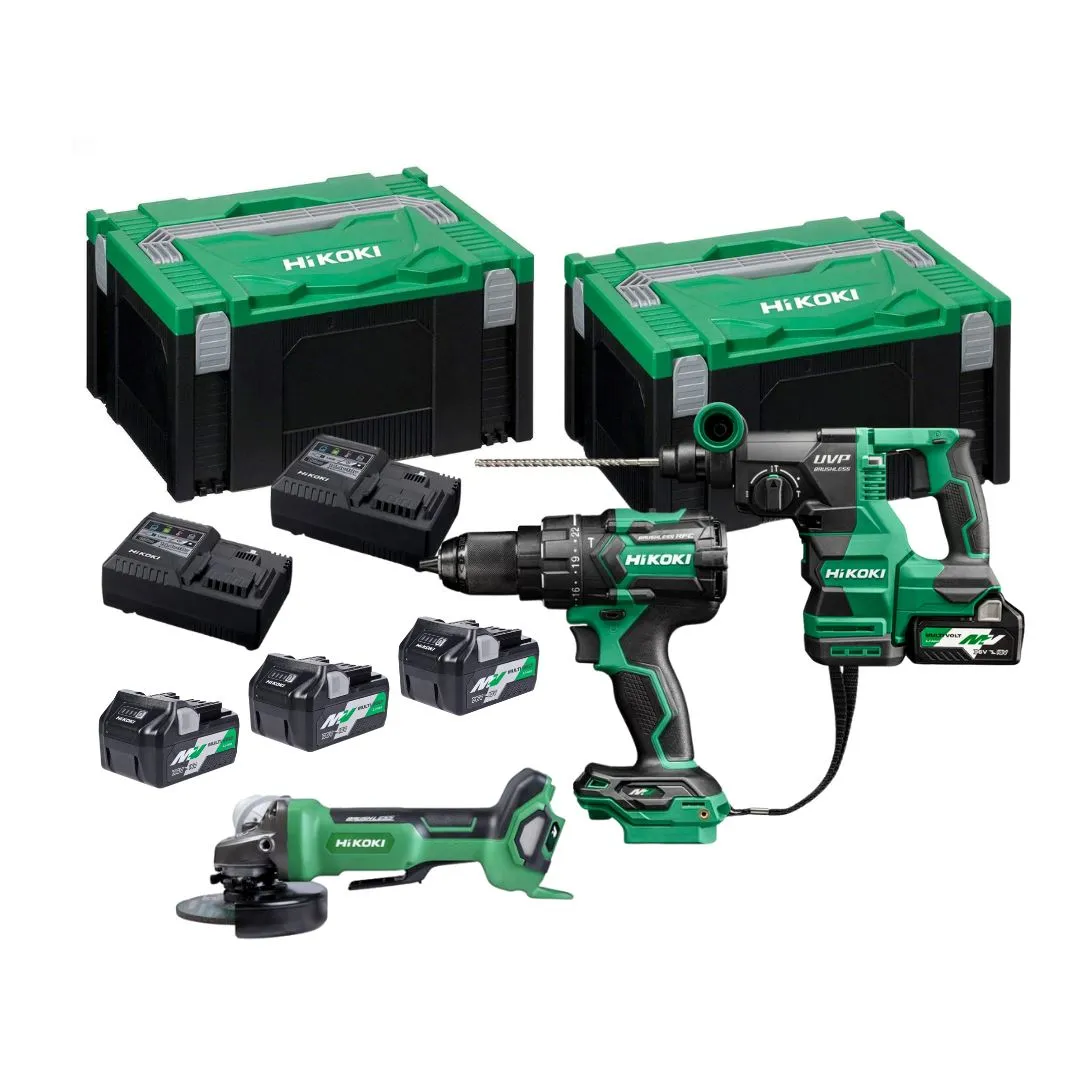

Includes :
1 xDH3628DA Cordless Rotary Hammer
1 xDV36DACordless Impact Driver Drill
1 xG3610DB100mm (4) Cordless Disc Grinder
4 xBSL36A18MULTI VOLT Batteries
2 x UC18YSL3 Chargers
Specifications :
| Model | DH3628DA | |
| Dust Extractor System | Not Included | |
| Capacity | Concrete | 28mm |
| Steel | 13mm | |
| Wood | 32mm | |
| Battery Voltage | 36V | |
| Bit Shank | SDS-plus | |
| Impact Energy*1 | 3.2J | |
| No Load Speed | Normal | 0 - 950/min |
| Low | 0 - 700/min | |
| Full Load Impact Rate | Normal | 0 - 4.300/min |
| Low | 0 - 3.170/min | |
| Overall Length | 356mm (with BSL36A18) | |
| Weight*2 | 3.9 - 4.2kg*3 | |
| 3.9kg (with BSL36A18) | ||
| Vibration Total Values(triax vector sum)*4 | Hammer Drillinginto Concrete | Vibration emission value ah. HD = 12.1m/s2 |
| Uncertainty K = 1.5 m/s2 | ||
| EquivalentChiselling Value | Vibration emissionvalue ah. CHeq = 9.9 m/s2 | |
| Uncertainty K = 1.5 m/s2 | ||
| Model | DV36DA | |
| Drill Chuck | 1.5 13mm (1/16 1/2) Keyless | |
| Capacity | Brick | 20mm (3/4) |
| Mild Steel | 16mm (5/8) | |
| Soft Wood | 102mm (4) | |
| Wood Screw | 12x100mm (15/32x4) | |
| Machine Screw | 6mm (1/4) | |
| Battery Voltage | 36V | |
| No Load Speed | High | 0 2.100/min |
| Low | 0 500/min. | |
| Impact Rate | High | 0 31.500/min. |
| Low | 0 7.500/min. | |
| Max Torque | Hard | 138Nm (1.220in.-lbs.) |
| Soft | 64Nm (566in.-lbs.) | |
| Torque Setting | 2 8Nm (18 71in.-lbs.) | |
| Overall Length | 204mm (8) | |
| Weight*1 | 2.7kg (6.0lbs.) with BSL36A18 | |
| Vibration Total Values | Drilling into Metal | Vibration emission |
| (triax vector sum)*2 | value ah. ID = 10.5m/s2 | |
| Uncertainty K = 1.5m/s2 | ||
| Model | G3610DB | ||
| Wheel | Outer Dia. | 125mm (5) | |
| Hole Dia. | 22.23mm (7/8) | ||
| Spindle Thread | M14 x 2 | ||
| Battery Voltage | 36V | ||
| No Load Speed | Transmission mode : 3.000 - 9.500/min. | ||
| AUTO mode : 5.500/min. | |||
| Overall Length | 358mm (14-3/32) | ||
| Weight*1 | 2.6kg (5.7lbs.) | ||
| Vibration Total Values(triax vector sum)*2 | Surface Grinding | Vibration Emission Value ah. AG | 5.9m/s2 |
| Uncertainty K | 1.5m/s2 | ||
