Specifications :

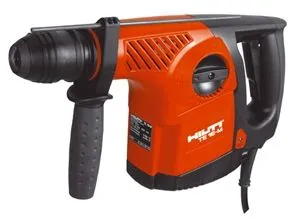

• Model : TE16 - M
• Rated Power Input : 850 W
• Rated Voltage/ Rated Current Input : 230 V / 4.8 A
• Main Frequency : 5060 Hz
• Weight of tool :4.05 kg
• Dimensions (L x W x H) :370 x 90 x 210 mm
• Drilling speed without hammering. position 2 :1100 r.p.m.
• Drilling speed without hammering. position 1 :750 r.p.m
• Hammer drilling speed :750 r.p.m.
• Single impact energy :3.2 J
• Chuck :TE-C (SDS plus)/TE -T (SDS top)
• Drilling dia. range in concrete/ masonry (hammer drilling) :528mm dia
• Percussion core bits :6690 mm dia
• Drilling dia. range with drill bits for wood :520 mm dia.
• Drilling dia. range with drill bits for metal :max. 13 mm dia
• Drilling dia. range in medium-hard concrete : 16 mm dia./72 cm3 /min
• Double insulated (in accordance with EN 50144) :Protection class II Z
• Interference immunity : In accordance with EN 55014-2
• Radio and television interference suppression : In accordance with EN 55014-1
• Typical A-weighted sound power level (LwA) :102 dB (A)
• Typical A-weighted sound power level (LpA) :89 dB (A)
• Typical weighted vibration at the grips : 9 m/s
