Product Details
＋

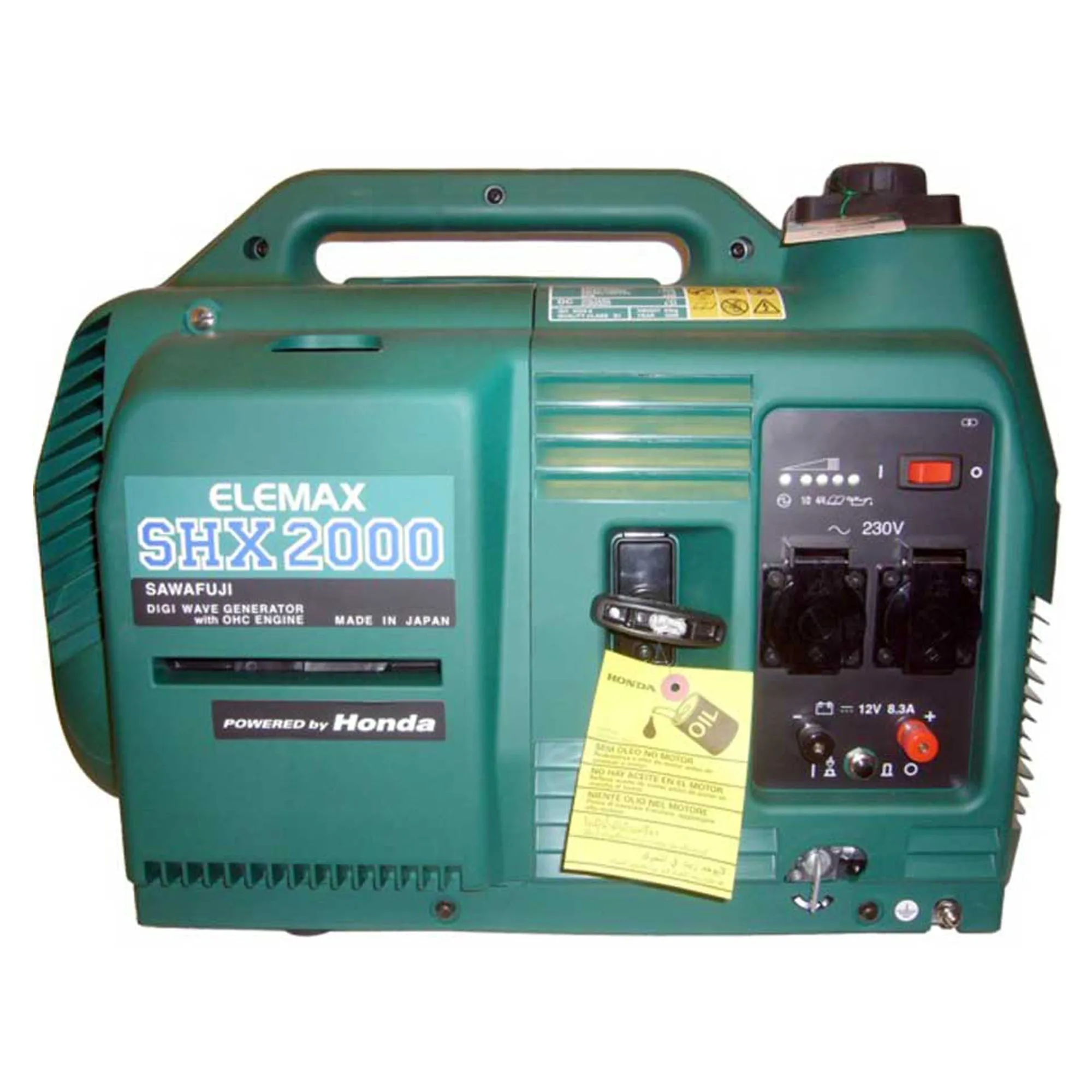

Honda 220V Elemax Petrol Generator | Model : SHX2000
Features :
- Advanced Technology
- Newly designed Multi-pole Alternator and high speed engine dramatically reduced the size and weight.
- Honda 4-stroke Engine
- Honda multi purpose engine has been industry standard for reliability and durability in the world. Also guaranteed with just a light pull on the recoil starter.
- Long Operating Hours
- Large fuel tank allows efficient work without refueling
- Portability
- These models are especially easy to carry
- Lower Sound Level(Silent and Power mode)
- Its unique designed for SHX1000 silent mode provides extremely lower sound level with 3/4 load. Just in case to take full load. only to change to Power mode
- Compact & Light Weight
- The SHX1000 weight only 13.6kg. The SHX2000 weighs only 21kg. less than half of the weight of similar capacity conventional generator
Specifications :
| Models | SHX2000 | |||||
| Type | R | G | S | L | ||
| Generator | Frequency (Hz) | 50 | 60 | |||
| Engine Speed (rpm) | 4500 | |||||
| Waveform | Square-Wave | |||||
| AC Output | Maximum Power (W) | 1900 | 1700 | 1900 | ||
| Rated Power (W) | 1500 | |||||
| Rated Voltage (V) | 220 | 230 | 220 | 120 | ||
| DC Output | Only for Charging 12V Automotive Batteries. | |||||
| Maximum charging output = 8.3A | ||||||
| Insulation Class | B | |||||
| Engine | Maker | HONDA | ||||
| Model | GX100 | |||||
| Type | Air Cooled OHC 4-stroke Gasoline | |||||
| Displacement (CC) | 98.5 | |||||
| Others | L x W x H (mm) | 560 x 340 x 415 | ||||
| Dry Weight (kg) | 21.0 | 22.0 | 21.0 | 21.0 | ||
| Fuel Tank Capacity (liters) | 7.7 | |||||
| Sound Level | [dB(A)/7m] | 63 (1/2 load) | ||||
| (dB Lwa ) | 93 (3/4 load) | |||||
| Pilot Lamp | LED | |||||
| Power Indicator | LED | |||||
| Oil Alert System | YES | |||||
| Engine Stop | Rocker Switch | |||||
| AC | Output | Plug Socket x 2 | ||||
| Protective Device | Control Circuit | |||||
| DC | Output | Terminal | ||||
| Protective Device | Thermal Type Circuit Breaker | |||||
