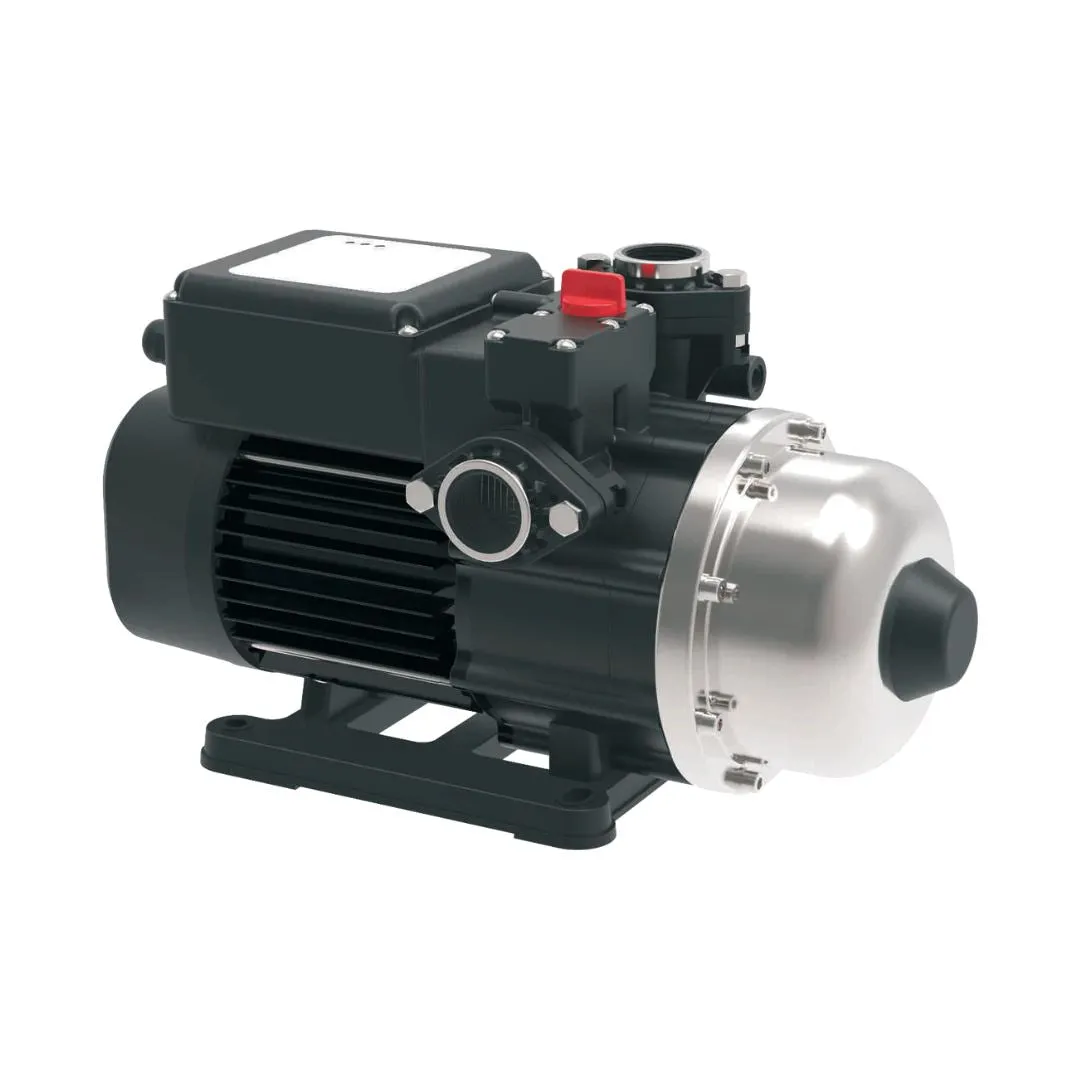

Mepcato All-in-One Electronic Control Hot Water Booster Pump | Model : WP-MJD400

Type of Fluid : Hot water 4C ~ 90C(potable water or other clean or non-corrosive liquids.)

Features :

• The MJD water pump is a complete. all-in-one unit. consisting of pump. motor. pressure tank. and electronic controller.
• The built-in electronic controller provides constant pressure which ensures that the pump starts automatically when water is consumed and operates continuously until water is not required.

• Adopt strong and heat-resistance multistage plastic impellers. suitable for solar energy or other types of cold/hot water system (up to 90).

• The motor has built-in thermal overload to protect against high operating temperatures.
• Compact design and quiet operation.
• It has an anti-cycling feature which prevents the pump from continuous starting and stopping when you have a dripping tap or minor leak in the system.
  Indicator light can easy to check the pump status

Specification :

• Power : 400W
• Voltage : 220-240V 50Hz
• Outlet/Inlet : 1 inch
• Max Suction : 6m
• Max Head : 27m
• Max Capacity : 74 L/min
• Dimension : 40x18x23.5cm
• Weight : 11.1kg
• Application :
  • Boosting from mains: Increases the water pressure delivered by city mains

  • Boosting from tanks: Increases water pressure from roof tanks and ground tanks. including rainwater tanks

  • Boosting from wells: Pumps water from a depth of 6 meters. with foot valve and pump suction piping filled with water.
