Features :

• This MD Series are designed for pressure boosting in residential and commercial applications.
• Cold Water Series pumps use strong multistage plastic impellers for water up to 40C. Hot Water Series adopt stainless steel impellers which suitable for solar energy or other types of hot water system (up to 90C).
• Compact design and quiet operation.
• The motor has built-in thermal overload to protect against high operating temperatures.
• It has an anti-cycling feature which prevents the pump from continuous starting and stopping when you have a dripping tap or minor leak in the system.
• Relief valve assembled in Hot Water Series will automatically release the pressure when the pump full system pressure exceeds 5kg/cm.
• Indicator light can easy to check the pump status
• Suitable liquid: potable water or other clean or non-corrosive liquids.
• Ambient temperature: Max. 40
• Liquid temperature: 4C ~ 90C
• Relief pressure valve automatically: 5kg/cm
• Relative humidity: Max. 85% (RH)

Specifications :

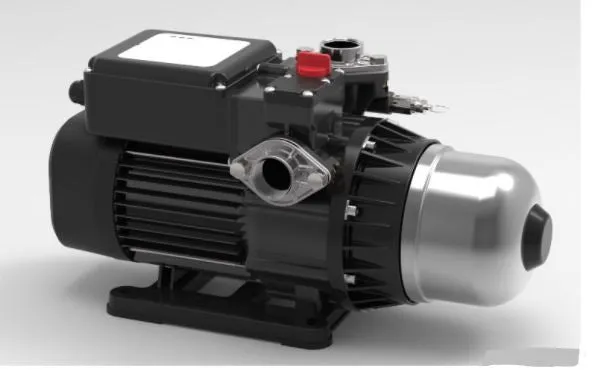

• Model : WP-MD1100
• Input : 1100 W
• Output : 950 W
• Voltage : 220 / 240 V
• Hertz : 50 Hz
• Inlet / Outlet : 1
• Max Head : 47 m
• Max Flow
• 105 L/min
• 6.3 m'''/h
• Dimension : 42.5 x 18.5 x 23.5 cm
