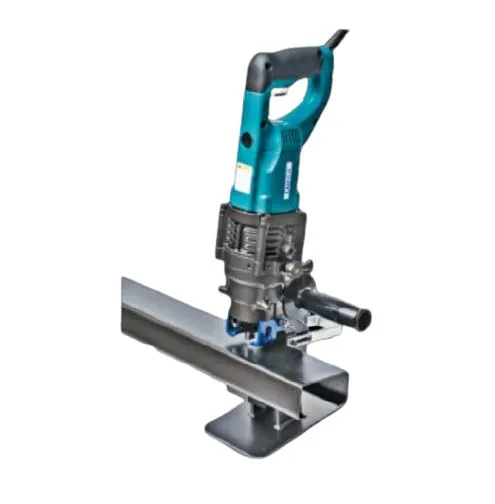

Ogura 230V Hydraulic Hole Puncher For Unistud Use | Model : OG-HPC-N6150W

Features :

• N series puncher for C-shaped steel (Lip Channel)
• Double acting hydraulic return for jam free operation.
• Specifically designed to provide high quality holes quickly and efficiently.
• Maximum hole size: 15 t6 mm (mild steel)

N series is

• The new N series punchers are double acting with a new designed punch holder for longer life. The N series punch has also been redesigned so that only one punch is required to punch the range of materials: mild steel. stainless steel. angle iron and channel steel. The center of the punch has been made wider for easier positioning.
• Both punching and retracting are completed by hydraulic power. This solves the punch jammed problem and allows uninterrupted and faster work.
• Following a review by our customers. we changed the design of the die. punch & punch holder to make them more durable and to make the setting of the punch & die easier.

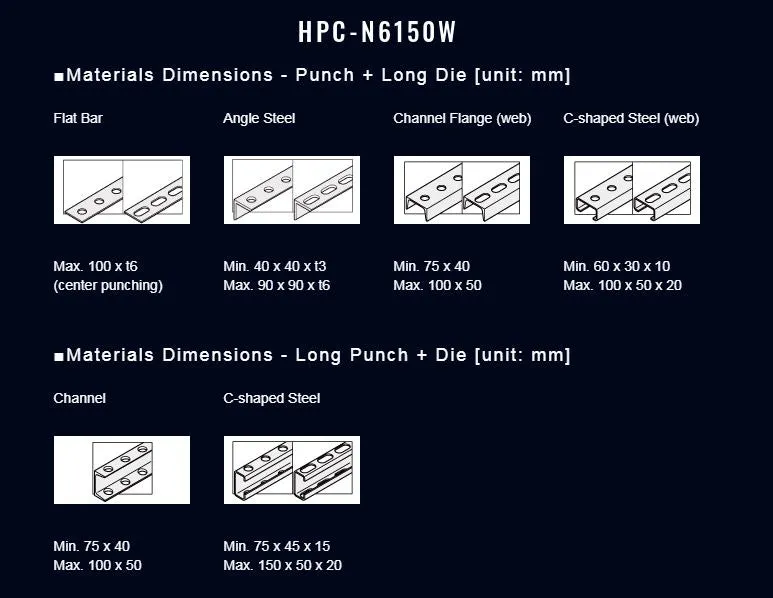

• Only one die for flat bar. angle steel and channel flange is required. It is not necessary to change the die when punching different materials or thicknesses.
  Thinner material (t2-3.2 mm) may have some burrs or deformation.
• New punch design makes it easier to confirm the hole position

Specifications :

• Model :HPC-N6150W
• Motor
• Single-Phase
• 230V
• 50 Hz
• 710 W
• Double Insulation

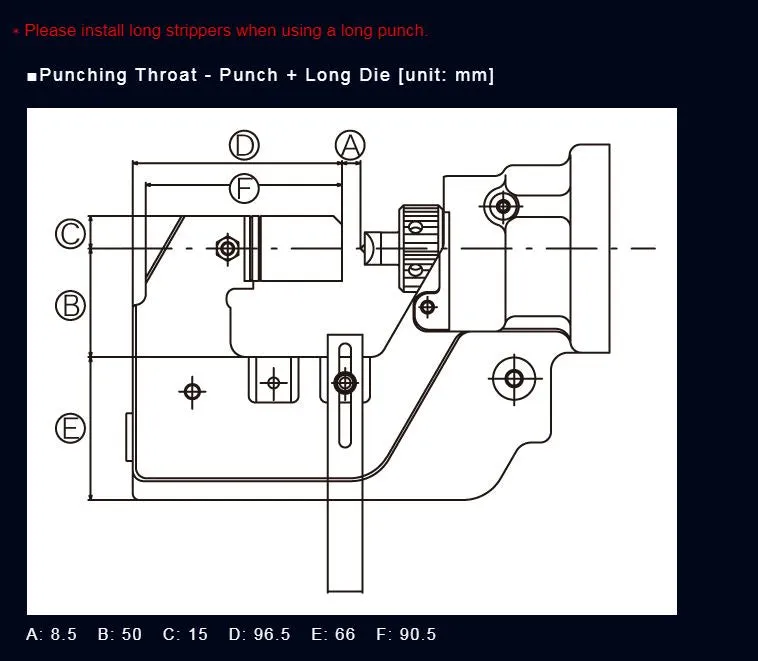

• Max. Throat Depth : 50 mm / 1.97 in

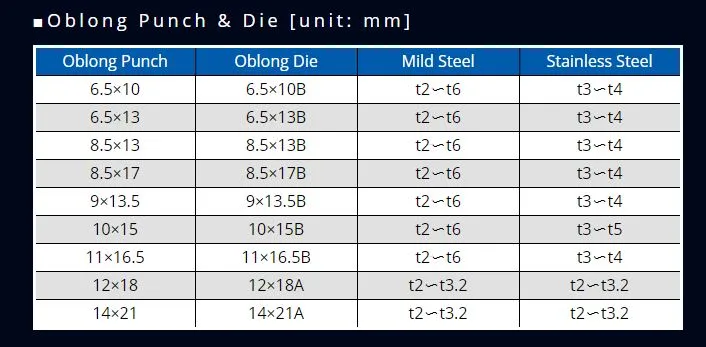

• Hole Shape :Round / Oblong

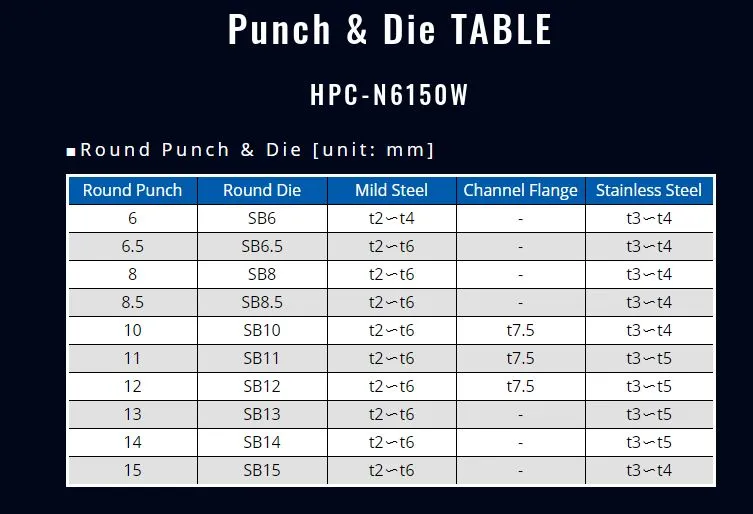

• Max. Hole Size
• Mild steel (65.000 psi): 15/t6 mm
• Stainless steel (89.000 psi): 15/t4 mm
• Weight :11.2 kg / 24.7 lbs
• Dimensions :526 (L) x 125 (W) x 306 (H) mm
