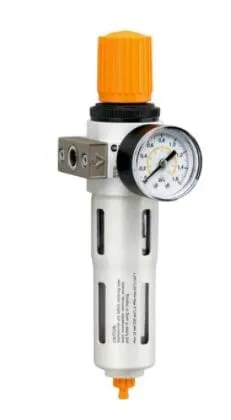

XCPC 1/2 Filter Regulator Come with Auto Drain | Model : AF-XOFR-1/2-MIDI-A

Specifications :

• Manual Drain : Working Pressure 12 bar . 40m
• Manometer : 0 - 12 bar
• Medium : Compressed Air
• Feature of Structure : Sintered filter with water separator. MIDI . Piston regulator . Diaphragm type regulator Direct Constant density lubricator
• Mounting Type Vertical 5
• Connection G1/2
• Standard Nominal Flow Rate : 3400
• Primary Pressure : 1-16bar
• Working Pressure : 0.5 ~ 12Bar/ 0.5 ~ 7bar
• Grade of filtration : 40m/5m
• Max Condensate Capacity : 22 ml
• Temperature Range : 0 ~ 60C
