Product Details
＋

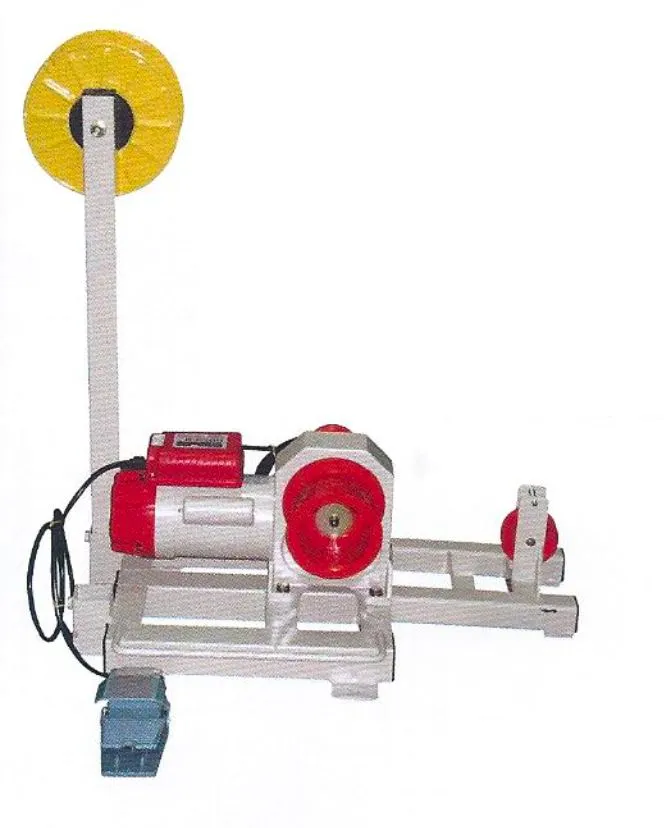

YAMA 110V. 2.500kg .600W Cable Puller | Model : YAMA-H2500-100
Features :
- Dual pulling capacities of 2.500kg and 1.500kg
- Dual speeds vary according to drum size
- A overload protection switch ensure automatic shut-off
- Electromagnetic spring-apply failsafe brake
- Heavy duty high efficiency ball bearings on all running surfaces
- Rugged high power induction motor of proven reliability
- Case hardened gear train for maximum mechanical efficiency
- Suitable for continuous pulling tohandle the toughest wall. ground and underground pulling applications
Specifications :
- Large Drum :
- Pulling Capacity : 1.500kg
- Rope Speed :
- 50Hz : 4.0 m/min
- 60Hz : 5.0 m/min
- Gear Train : Hypoid gear plus spur gears
- Gear Ratio : 154 : 1
- Motor Rating :
- 600W
- IP44
- Drum Dimensions :
- Length : 124mm
- Drum Diameter : 110mm
- Flange Diameter : 166mm
- Cable Puller Weight : 60kg
- Gross Weight : 83kg
- Body Dimension (L x W x H) : 457 x 362 x 267mm
- Box Dimension (L x W x H) : 610 x 720 x 500mm
- Small Drum :
- Pulling Capacity : 2.500kg
- Rope Speed :
- 50Hz : 2.5 m/min
- 60Hz : 3.0 m/min
- Gear Train : Hypoid gear plus spur gears
- Gear Ratio : 154 : 1
- Motor Rating :
- 600W
- IP44
- Drum Dimensions :
- Length : 104mm
- Drum Diameter : 74mm
- Flange Diameter : 94mm
- Cable Puller Weight : 60kg
- Gross Weight : 83kg
- Body Dimension (L x W x H) : 457 x 362 x 267mm
- Box Dimension (L x W x H) : 610 x 720 x 500mm
Standard Accessories :
- Rope Arm
- Base Plate
- Wire Rope 8mm x 50m
- Detachment rope storage roller
- Foot control with 2.0mm2 x 3C x 2m lead
- Power lead coming with 1.5mm2 x 3C x 3m
