Product Details
＋

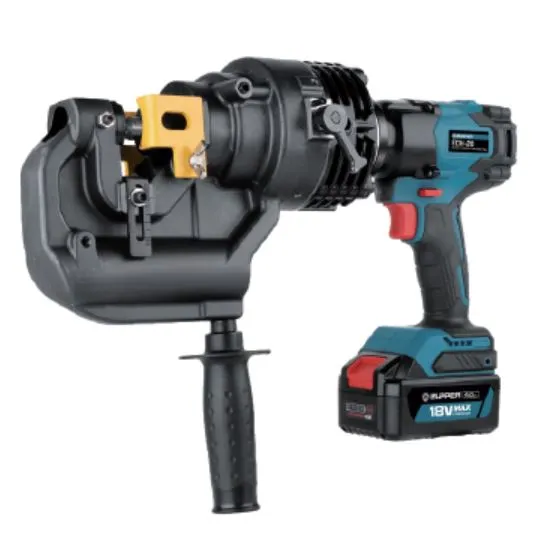

Zupper Cordless Battery 18V Hydraulic Hole Puncher Tool | Model : ECH-20
Features :
- Spark free punch of steel flat.steel angle.U-steel.copper bar etc.
- Lightweight and portable design for outdoor work.
- High performance brushless motor. runs cooler and more efficiently.
- Alternate reciprocating valve. suits for long-term continuous working.
- Built-in stroke control device. the piston returns automatically when finish punching. it makes the operation easier.
- Replaceable high hardness alloy punch dies suit for different punching shape.
- The hand-held part and tool body can be rotated 360 with 4x90 damping rotator. which is suitable for narrow spaces.
- A set up mesh protective baffle to reduce the risk of cutting off fragments flying out and cause injured.

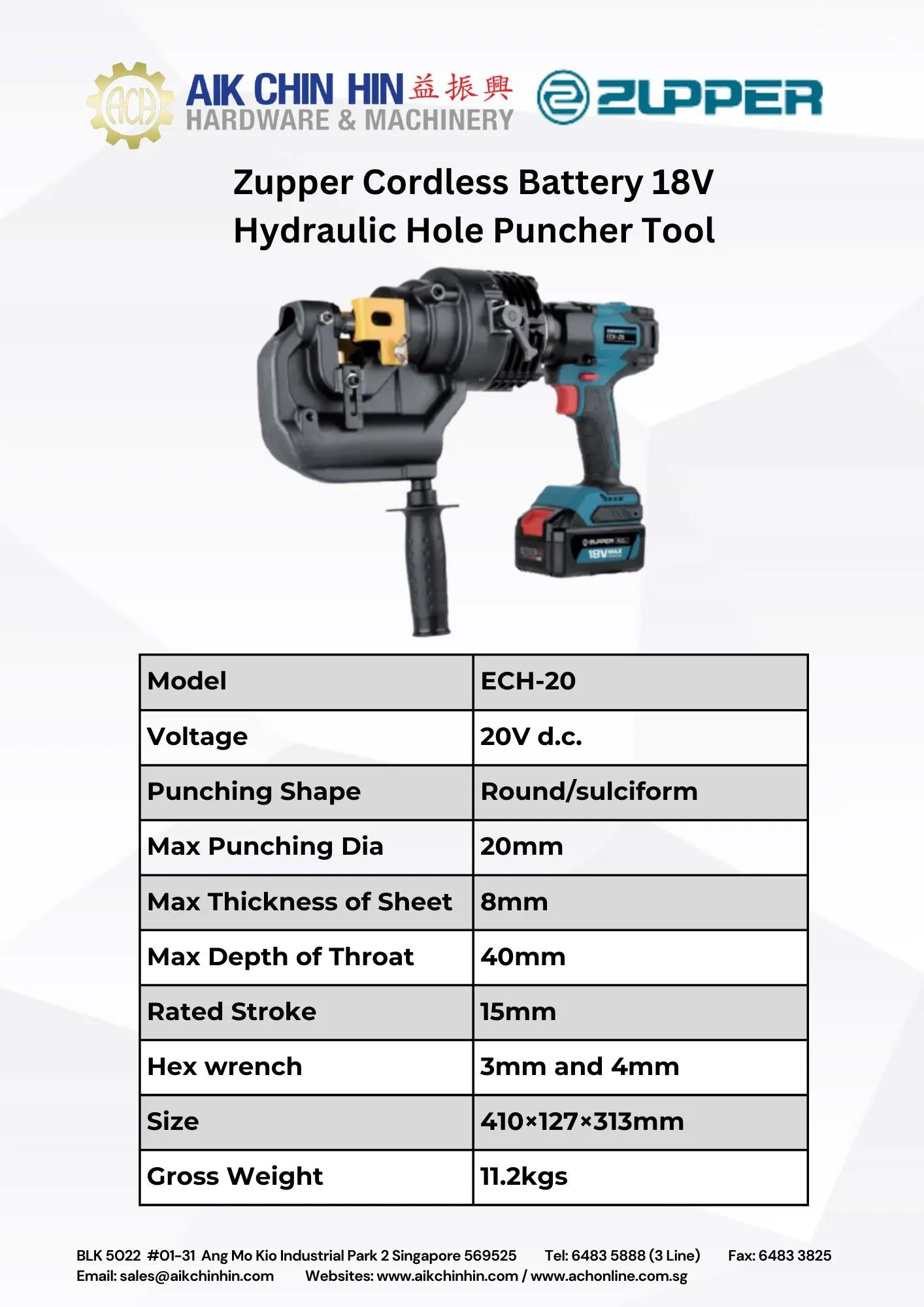

Specification :
| Punching Shape: | Round/sulciform |
| Max Punching Dia: | 20mm |
| Max Thickness of Sheet: | 8mm |
| Max Depth of Throat: | 40mm |
| Rated Stroke: | 15mm |
| Rated Voltage: | 20V d.c. |
| Tool Size: | 410X127 X 313mm |
| Weight: | 11.2kgs(with handle and 4.0Ah battery) |

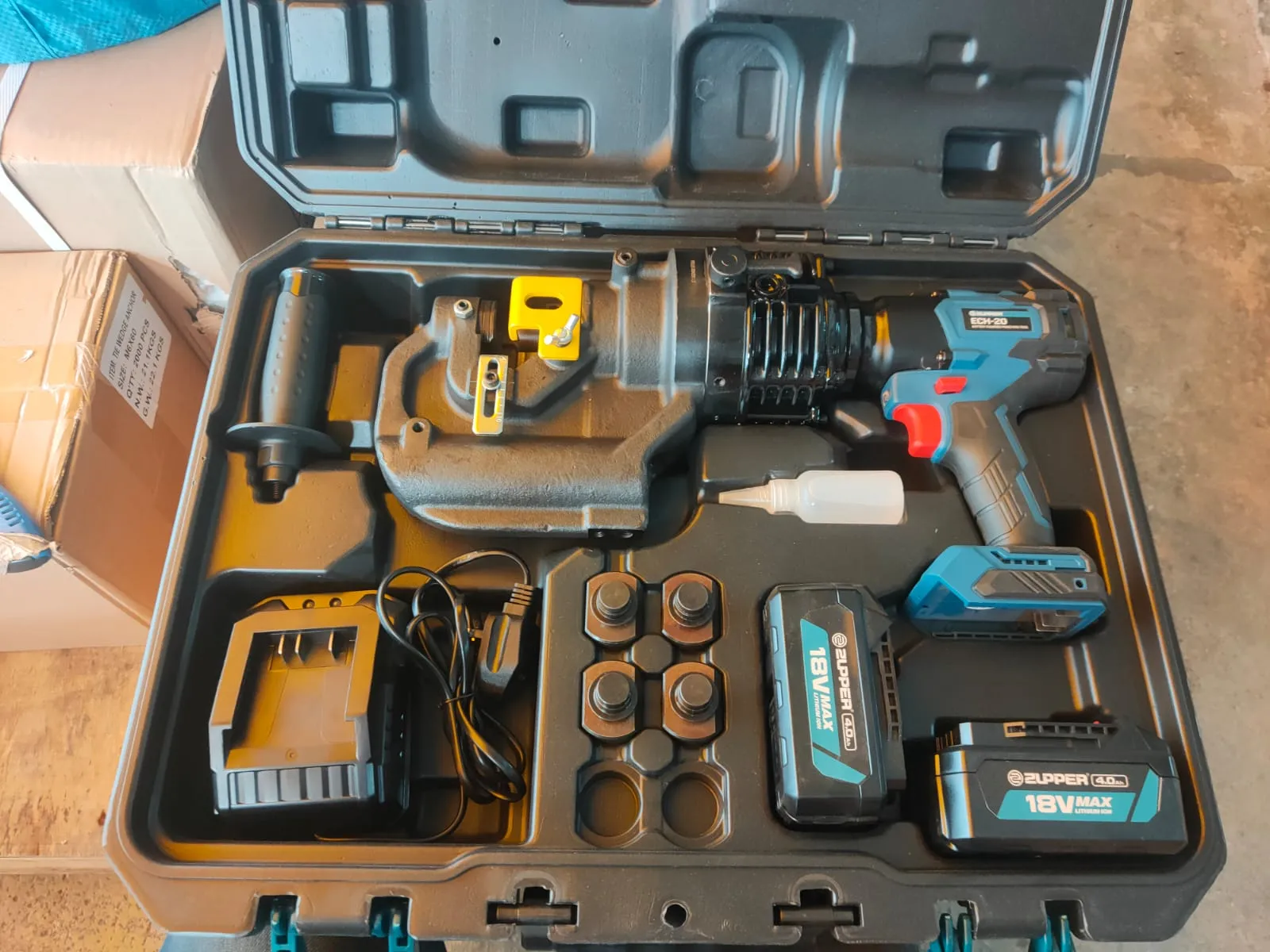

| Accessories | |
| Battery: | 2pcs |
| Charger: | 1pc |
| Hex wrench: | 1pc 3mm and 1pc 4mm |
| Round punch dies: | 6.5/9/13/17/20.5mm |
| Wrench: | 1pc10mm |
| Disassembly wrench: | 1pc |
| Handle: | 1pc |
