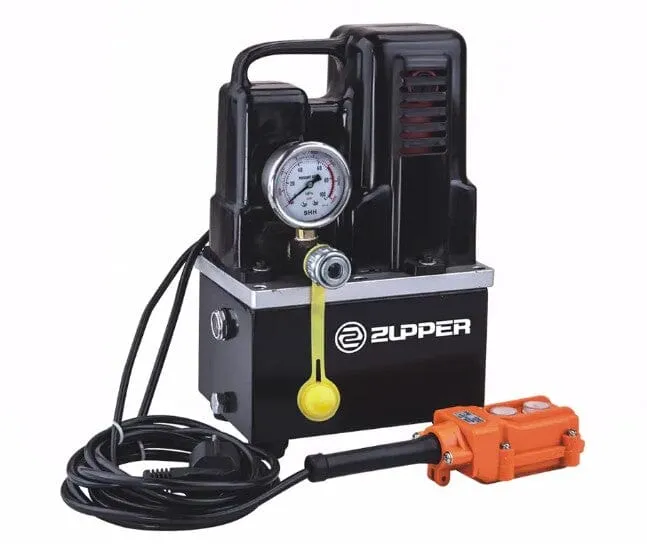

Zupper Electrical Hydraulic Pump | Model : ZUPPER-TEP-700B

Features :

• Light weight
• AC220V 50HZ universal motor works well with long extension cords
• Use high-performance tandem motor. features of big start-up force and a small volume to carry easily
• The speed and current can be adjusted automatically to enlarge its moment of force when the load becomes higher. Even under high pressure(32MPa). the hydraulic pump also can start easily
• The tool equipped with a double piston pump. high efficiency cycloid gear pump which provides higher current. the ram with the plug-in plunger is for easy assembling and replacing of the high precise part. the output in the pressure is much more stable
• With built-in oil spout lubricating device. it can help the internal driver component away from dry friction
• Use high stability impulse safety valve to assure that pressure output is much constant and safe
• Great for medium-sized cylinders

Specifications :

Working power : AC220V 50HZ

Power rating : 0.75kw

Nominal delivery capacity :

• Low pressure : 4L/min
• High pressure : 0.5L/min

Max. working pressure : 70MPa

Oil capacity : 2L

Weight : 17kg

External size : 210x210x340

Hydraulic oil : HV15 hydraulic oil

Speed : 20000r/min
