Zupper Hand Hydraulic Pump | Model : ZUPPER-CP-700/700B

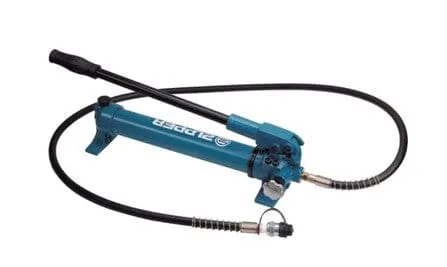

Model :CP-700

Features :

• Hydraulic operated pump to drive crimping head. cutting head and punching head. including high pressure hose and coupler plug
• PT3/8 screw thread. the oil number is Shell Tellus T 15. which must be changed every half year

Specifications :

Type : Hand

Max output pressure :

• Low pressure : 2MPa
• High pressure : 70MPa

Output of the oil :

• Low pressure : 11cc
• High pressure : 1.4cc

Capacity of oil : 940cc

Direction of piston : Double

Weight : Approx. 9kg

Measurement (LxWxH) : 510x140x150mm

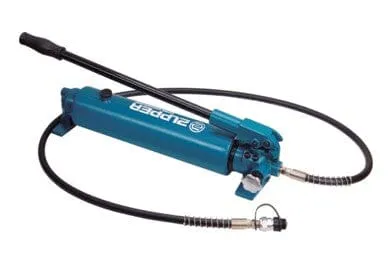

Model :CP-700B

Features :

• Big capacity of oil. operate with big cylinder
• Hydraulic operated pump to drive crimping head. cutting head and punching head. including 2M high pressure hose and coupler plug
• PT3/8 screw thread. the oil number is Shell Tellus T 15. which must be changed every half year

Specifications :

Type : Hand

Max output pressure :

• Low pressure : 2MPa
• High pressure : 70MPa

Output of the oil :

• Low pressure : 10cc
• High pressure : 1.8cc

Capacity of oil : 1800cc

Direction of piston : Double

Weight : Approx. 12.5kg

Measurement (LxWxH) : 510x150x200mm
