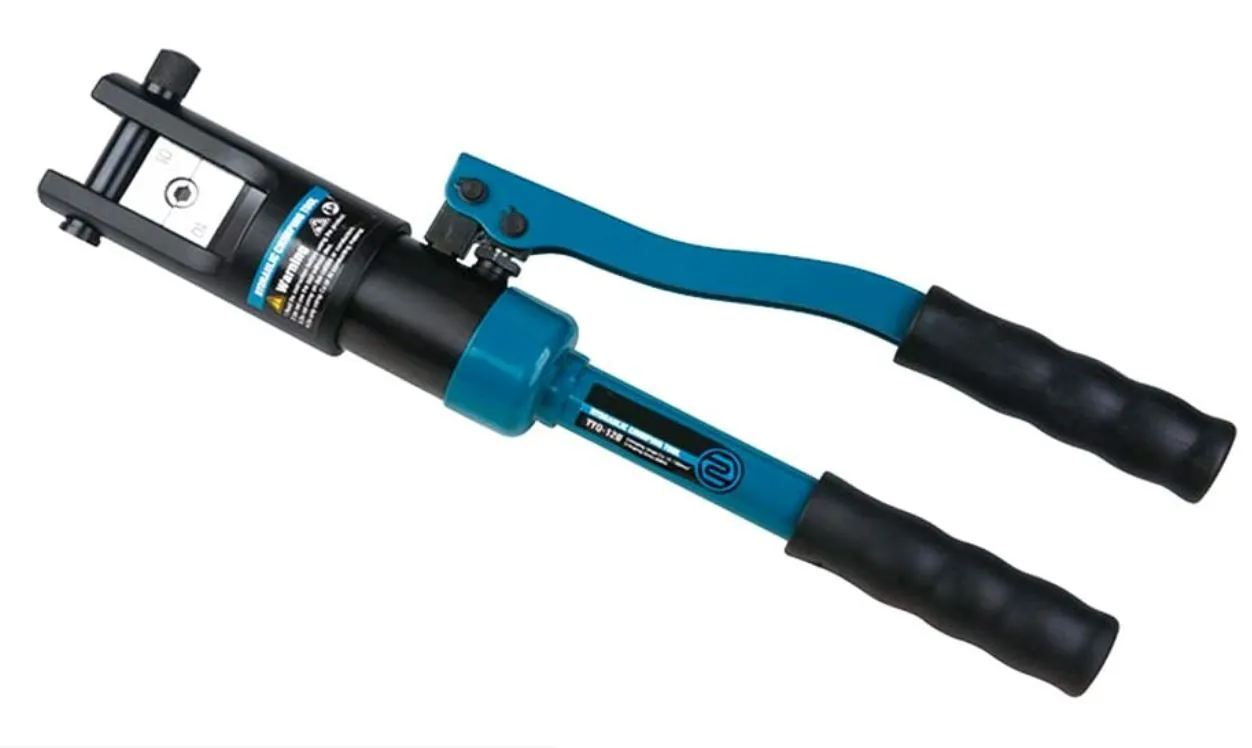

Zupper Hydraulic Crimping Tool | Model : ZUPPER-YYQ-120

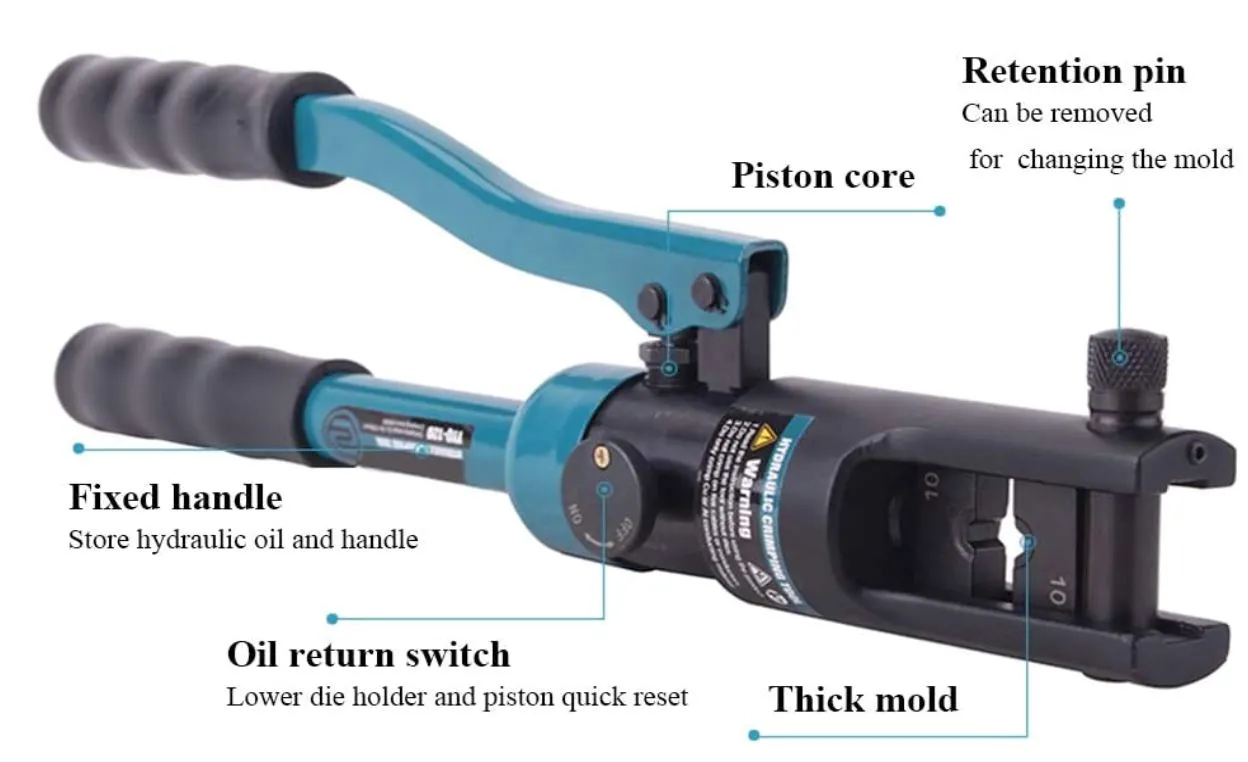

Features :

• All steel heat treatment technology The product is not easy to break and improves the using life.

• Two-speed pump core: Improved plunger for pressure saving.

• Three pairs of seals to prevent oil leakage.

• Easily relieve pressureAdjustable oil return valve. improved structure without oil leakage.

• High strength handle: Rubber gloves are more comfortable and more slip resistant.

• Clamp head limit screw: Prevent the pliers from popping or falling off.

• Thicken mold with high hardnessall molds has size stamp. after the crimping is completed. the model is displayed on the terminal for easy identification.
• Easy to change molds: Rotating pull out metal rod Push the crimping die along the groove Returned the metal rod


Specifications :

• Model: YYQ-120

• Crimp range: 10-120mm

• Maximum pressure: 60kN

• Maximum stroke: 13mm

• Crimp form: hexagon

• Length: 415mm

• Crimping Dies : 10.16.25.35.50.70.95.120mm
