Product Details
＋

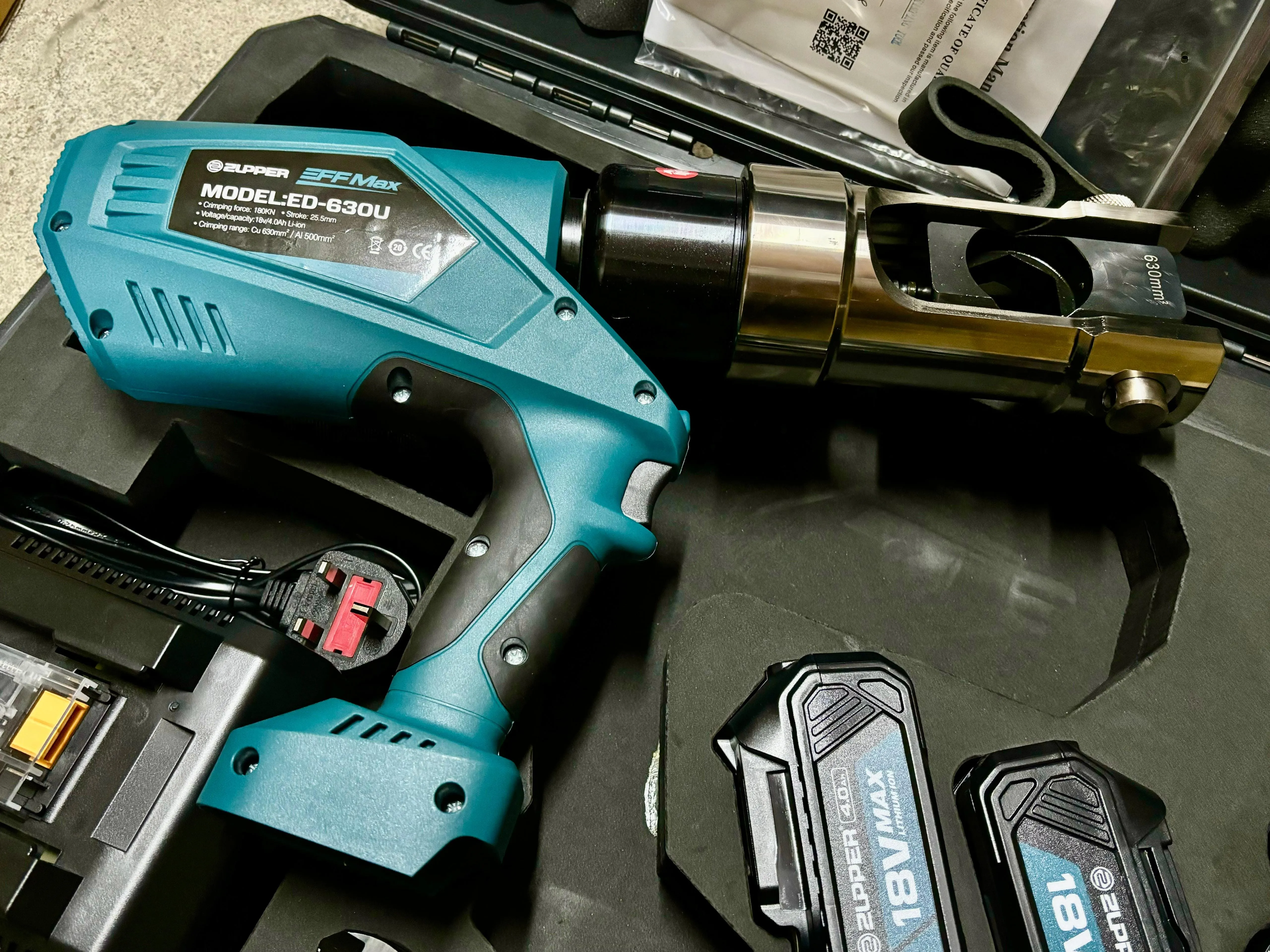

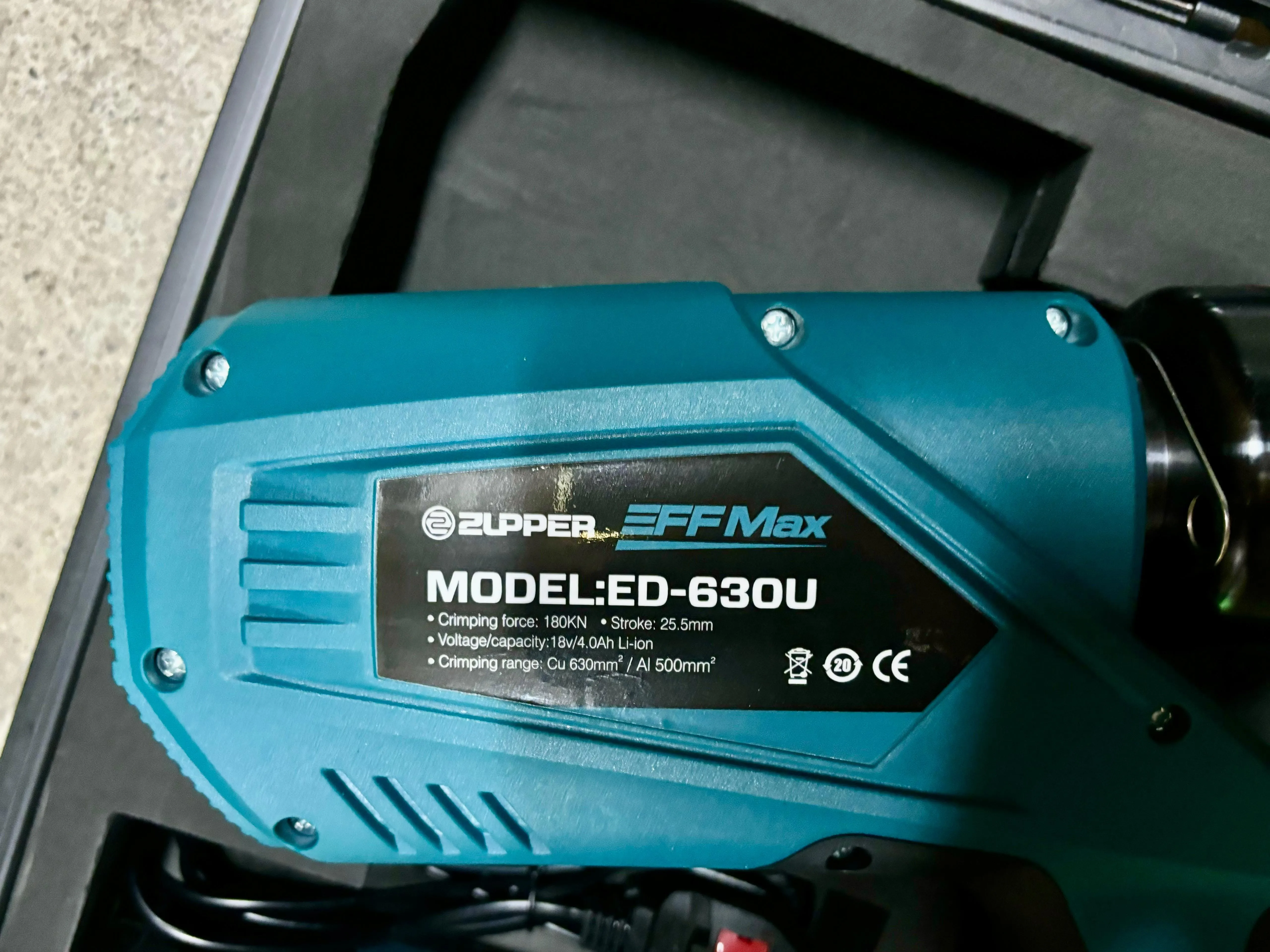

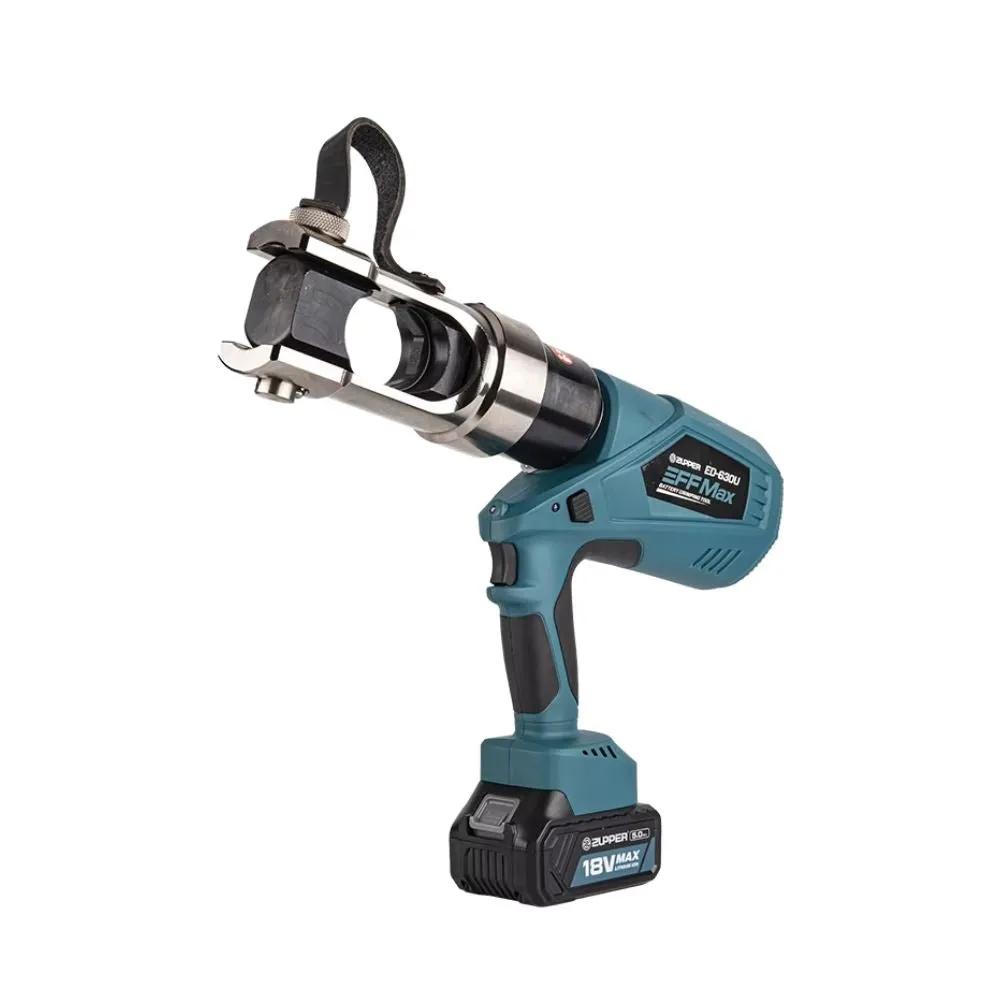

Aiko 18V Zupper Battery Powered Crimping Tools | Model : ED-630U

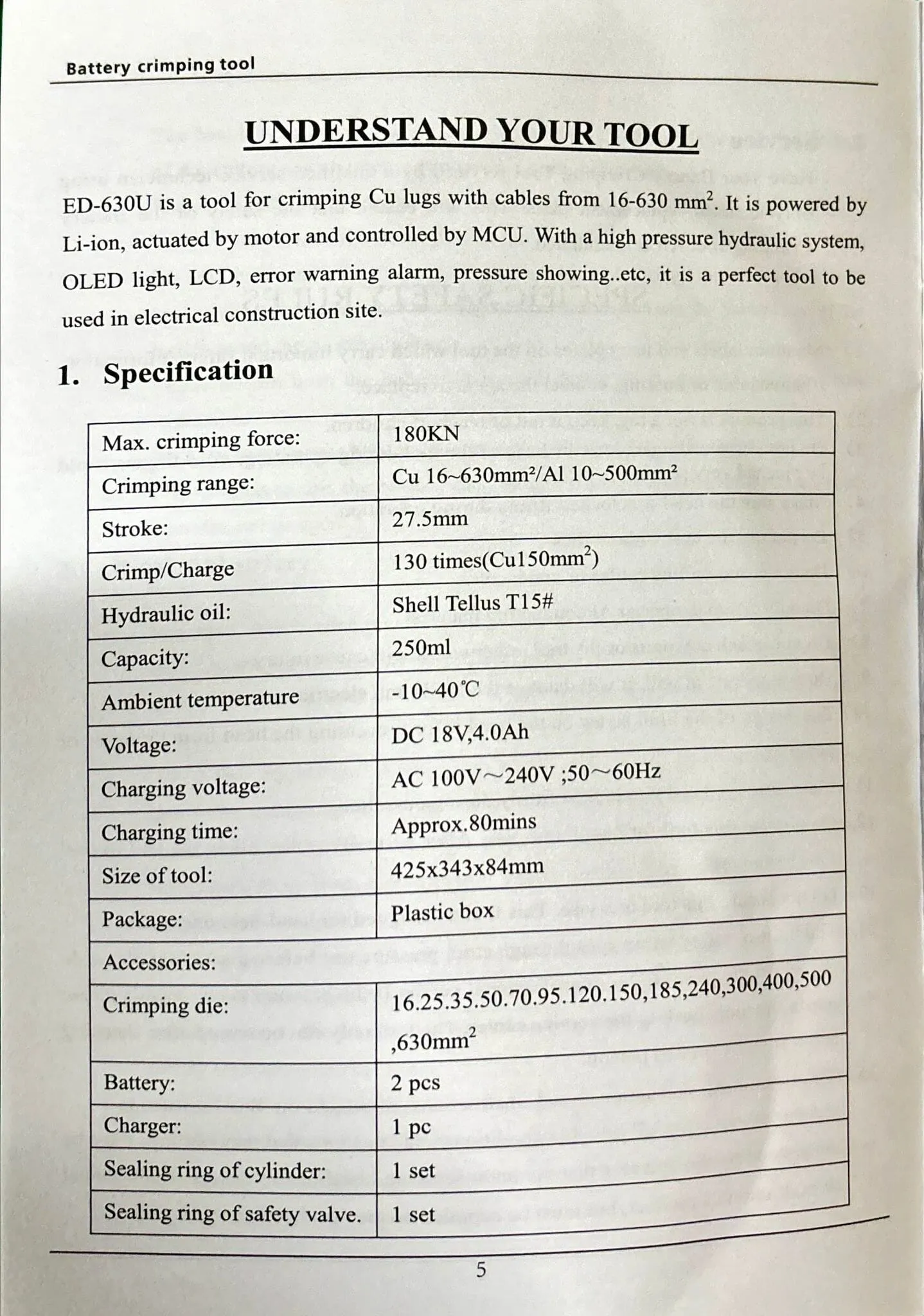

Specifications :
| Pressure | 180kN |
| Stroke | 25.5mm |
| Crimping Range | Cu 16-630mm/ Al 10-500mm |
| Time/work | 7-15s(depend on the dia. Of cable) |
| Cycles/charger | 130 cycles(Cu 150mm) |
| Voltage/capacity | 18V/4.0Ah |
| Charging time | Approx.80mins |
| Charging voltage | AC 100V`240V;50`60Hz |
| Size of tool | 425 x 343 x 84mm |

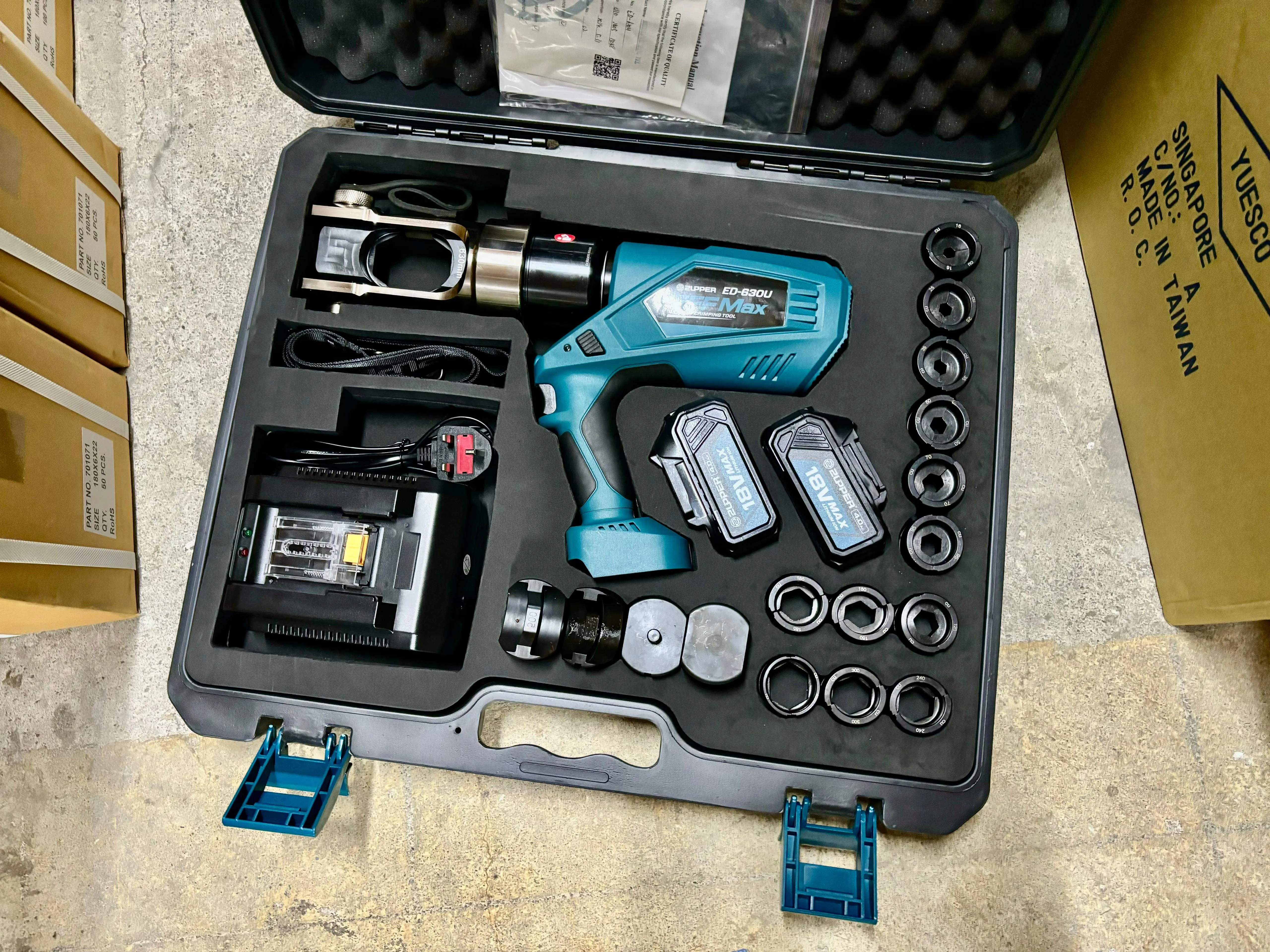

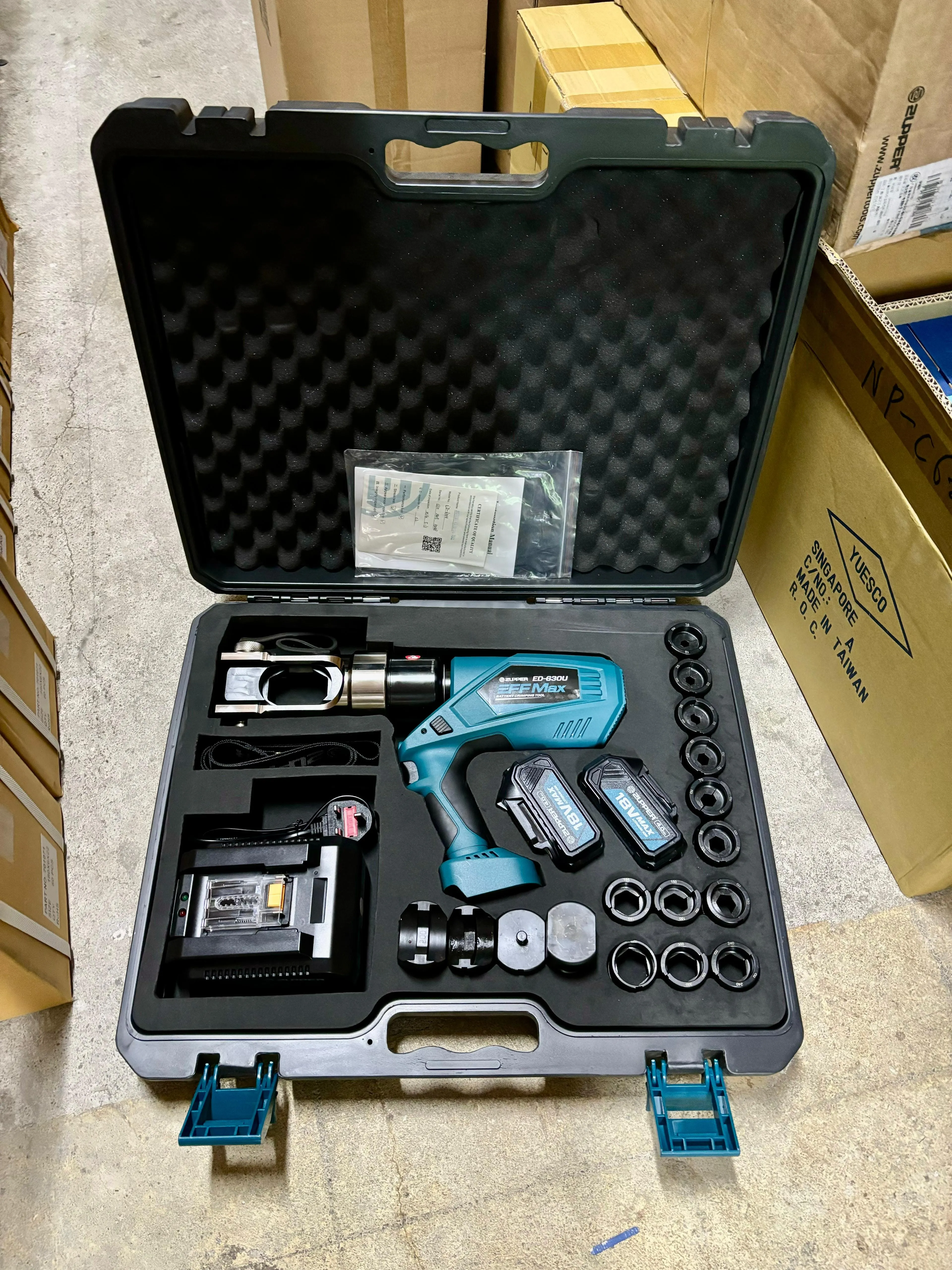

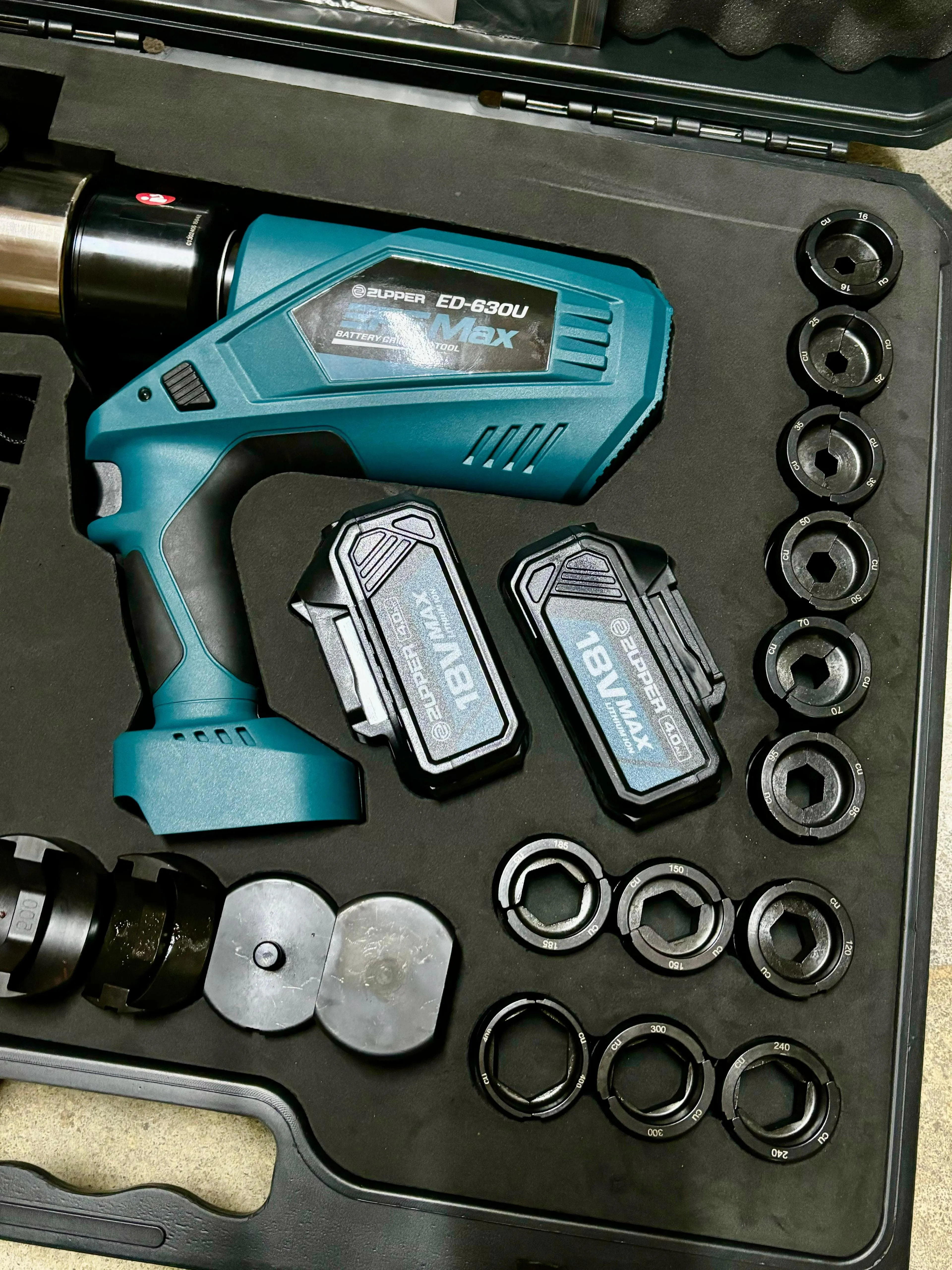

Accessories :
Crimping die: 16. 25. 35. 50. 70. 95. 120. 150. 185. 240. 300. 400. 500. 630mm
Battery x 2 pcs

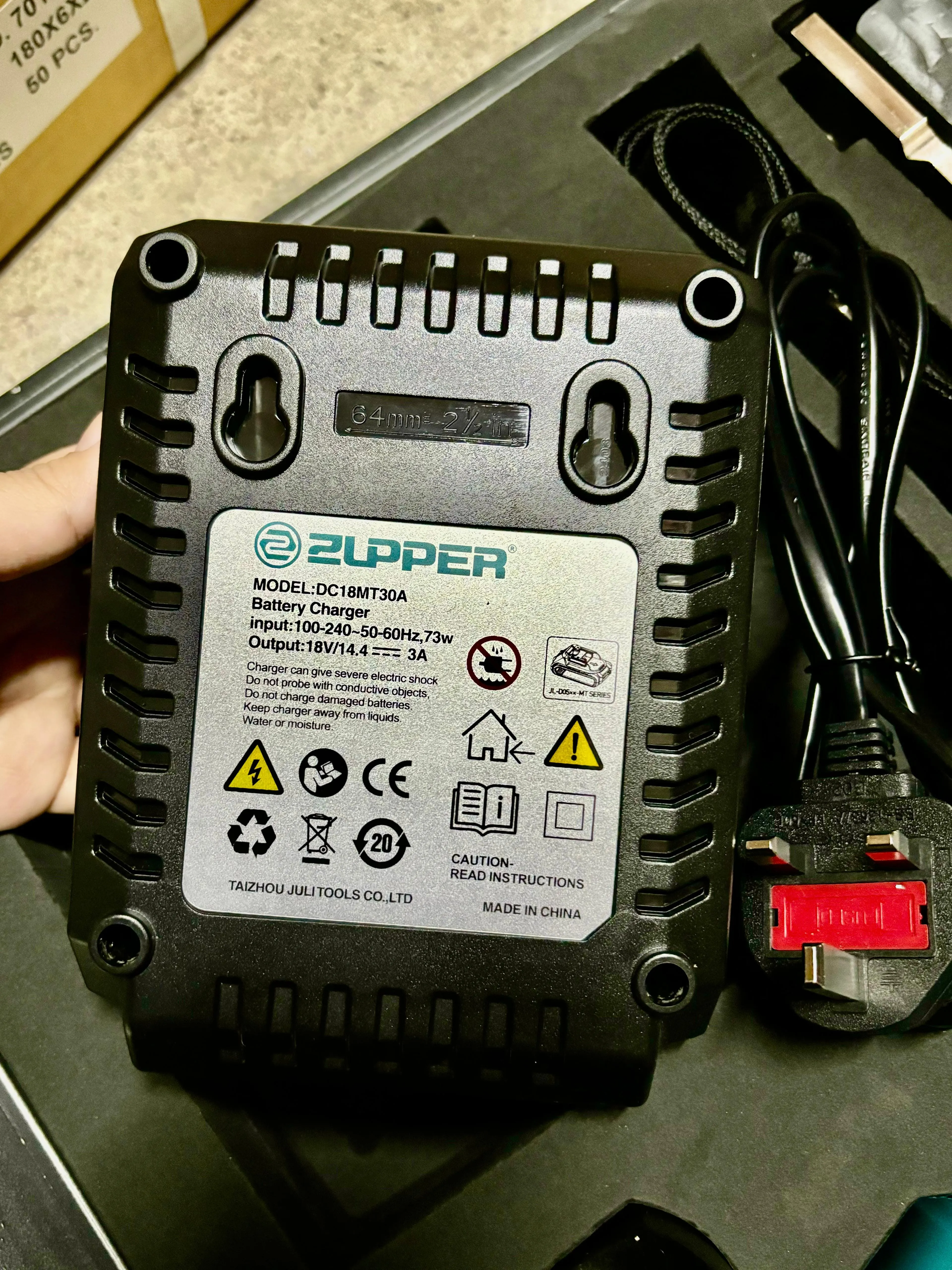

Charger
Sealing ring of cylinder
- Sealing ring of safety valve
