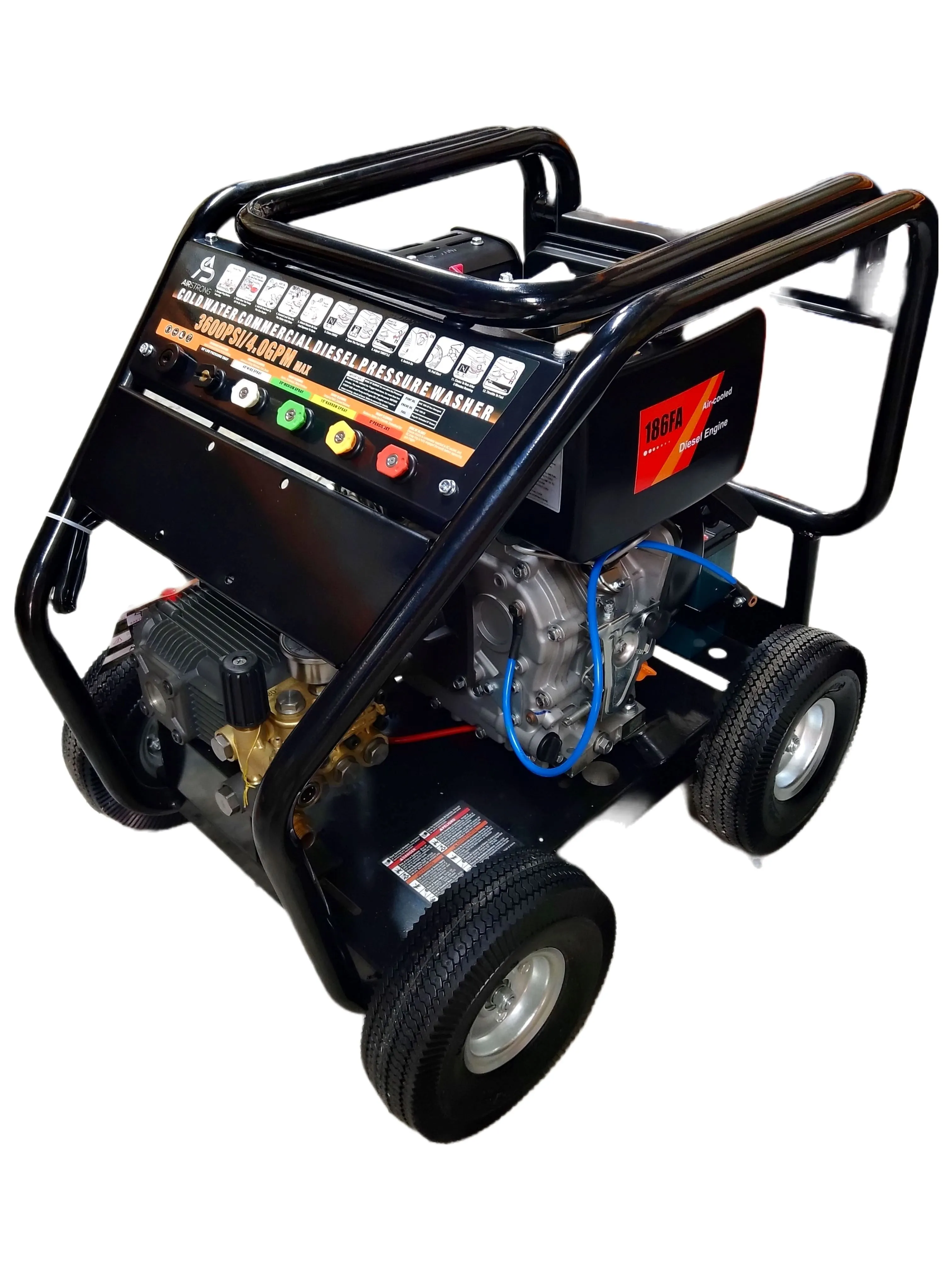

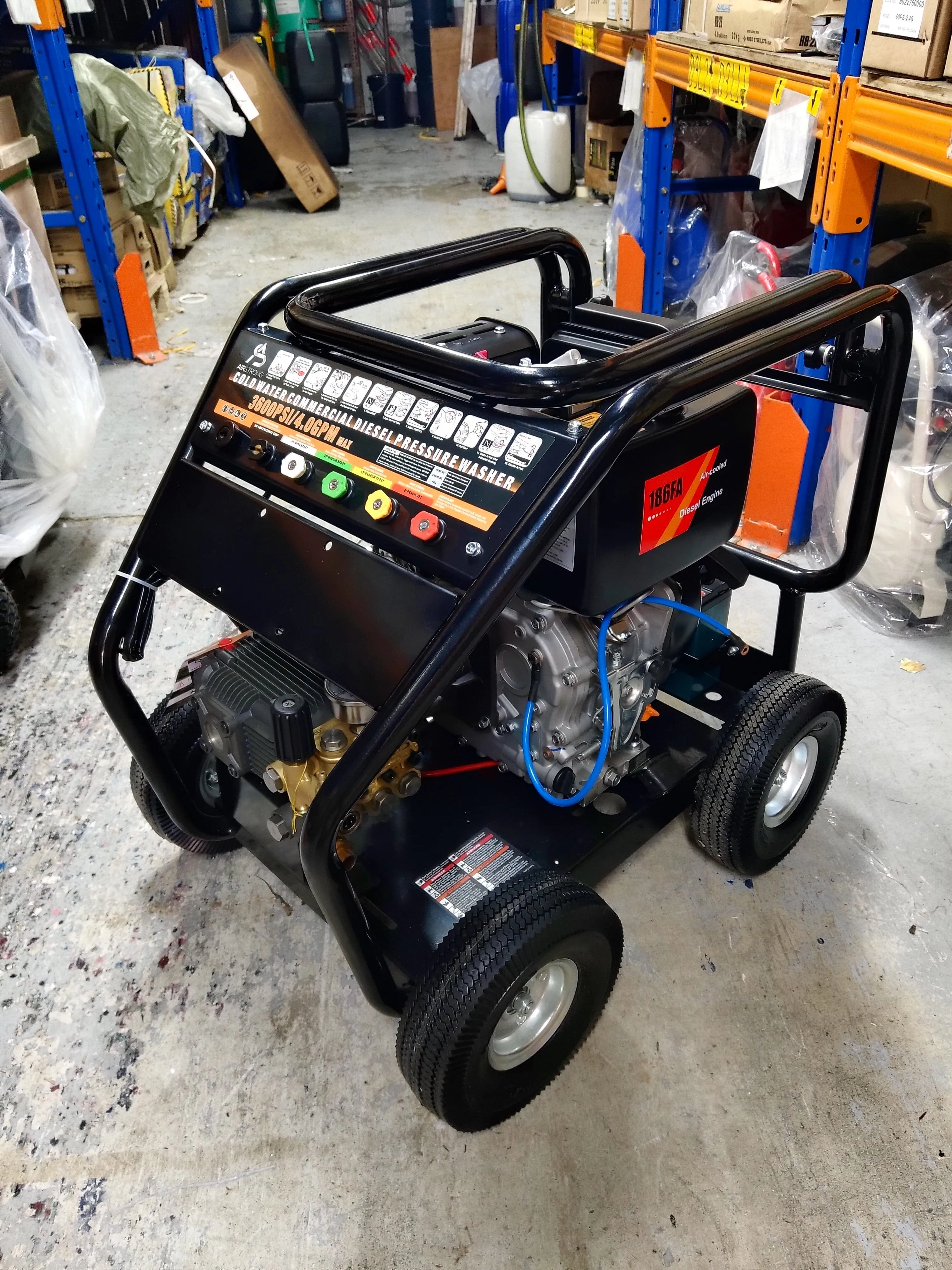

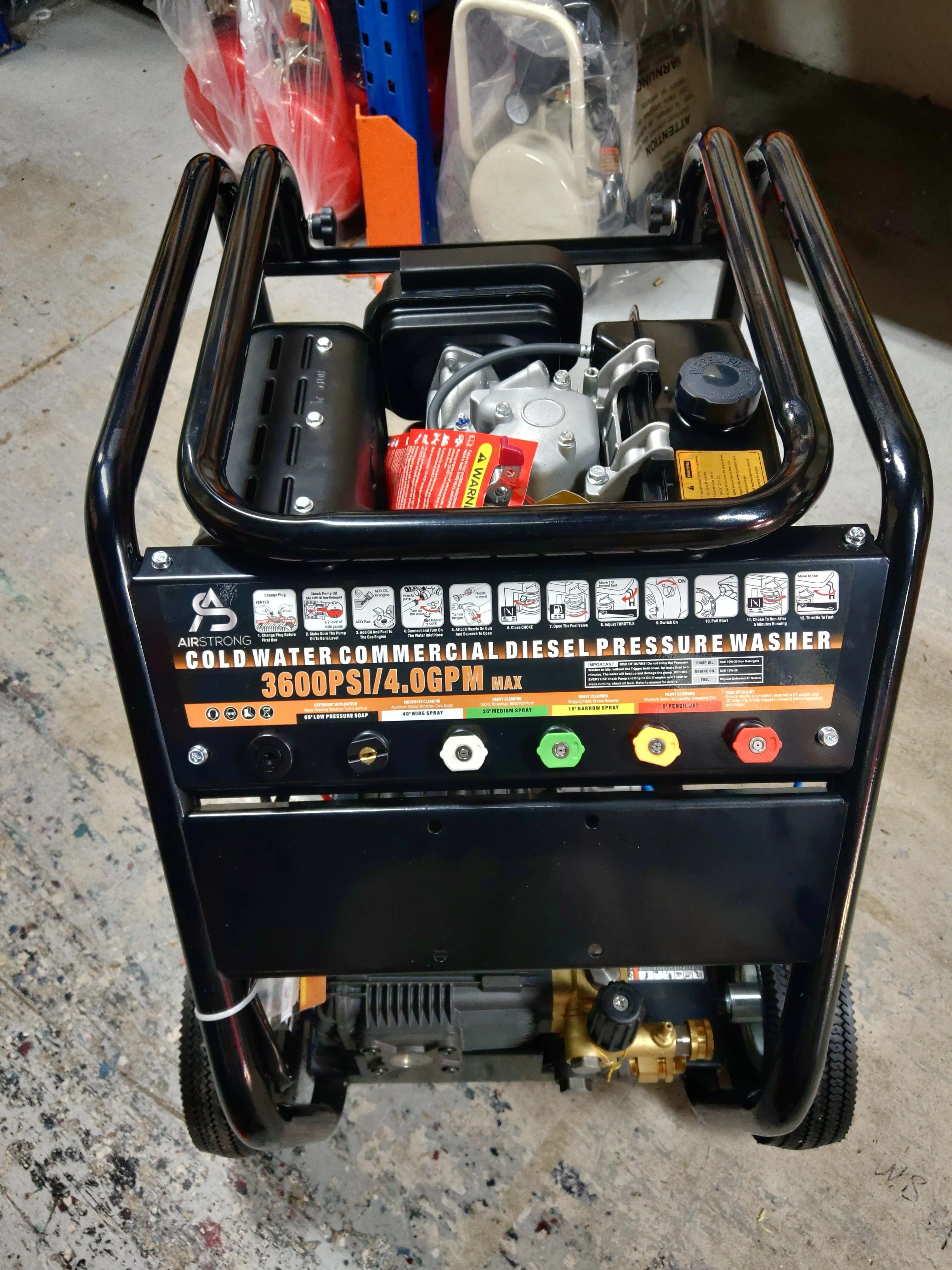

Aiko 3WZ-3600JDR 200 Bars Diesel Pressure Washer Water Pump With Gear Box 3WZ-3600JDR | Model: HPW-3WZ-3600JDR

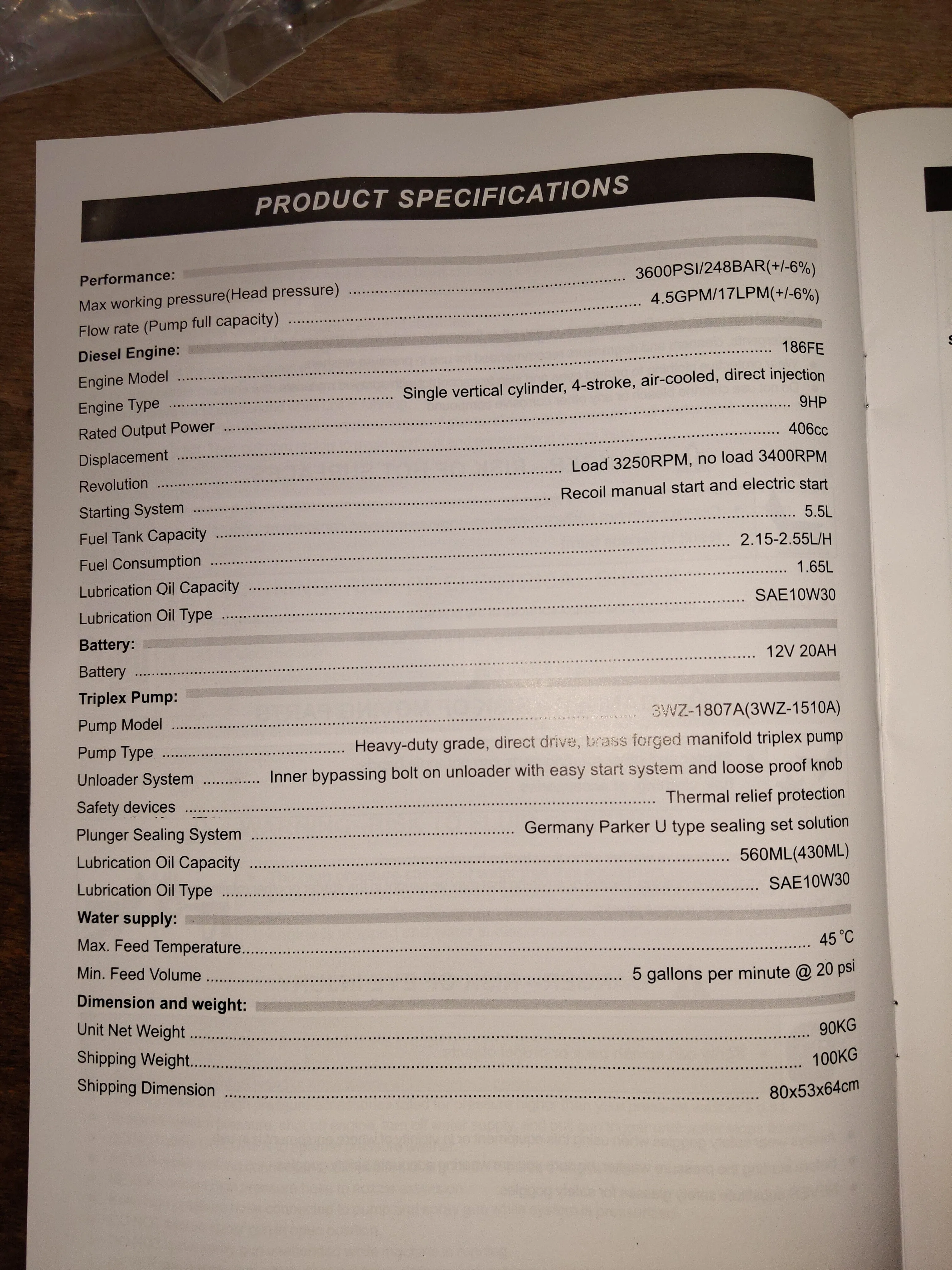

Specifications:

Performance:

• Max working pressure (Head Pressure): 3600PSI/248BAR( /-6%)
• Flow rate (Pump full capacity): 4.5GPM/17LPM( /-6%)

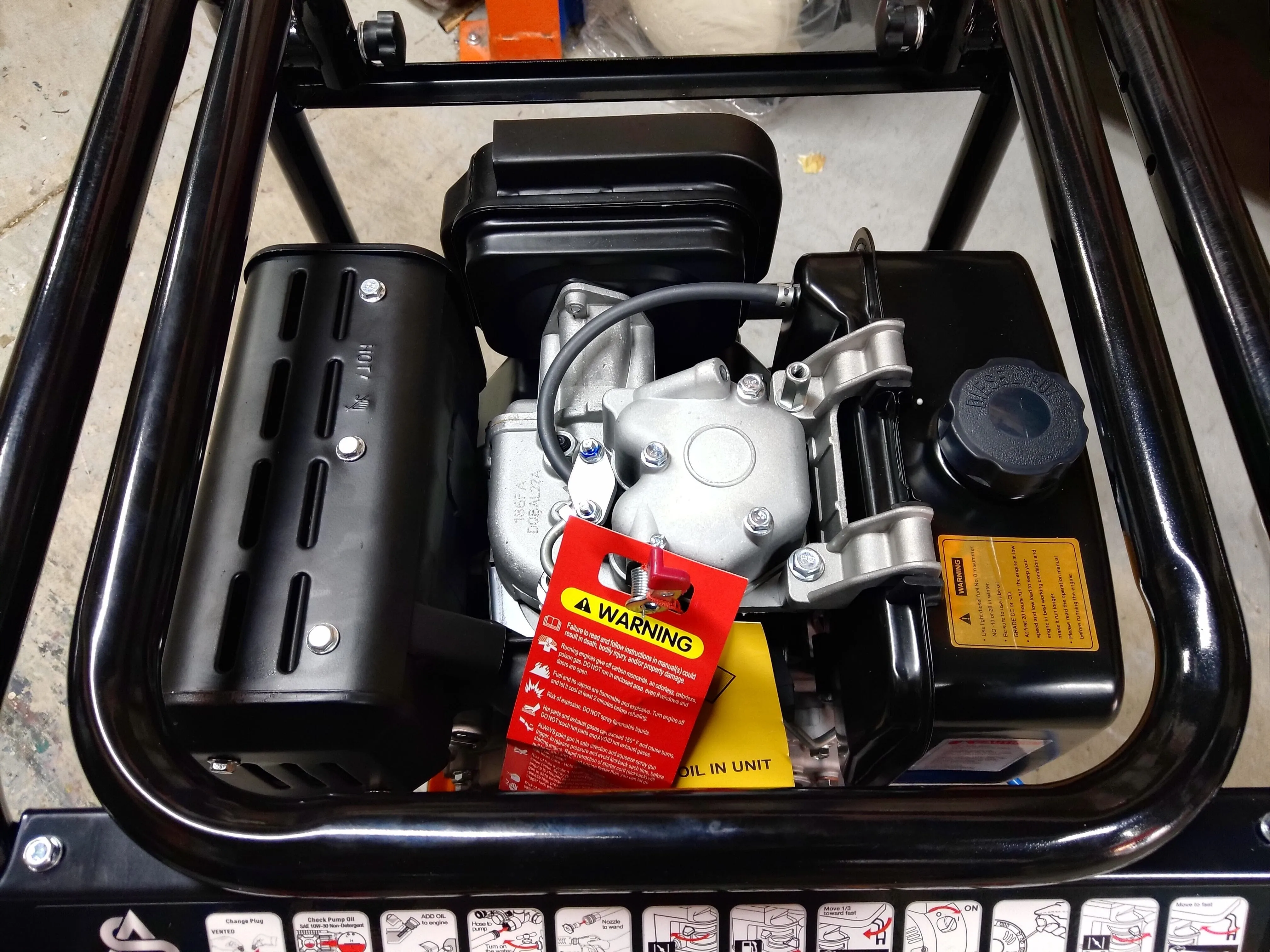

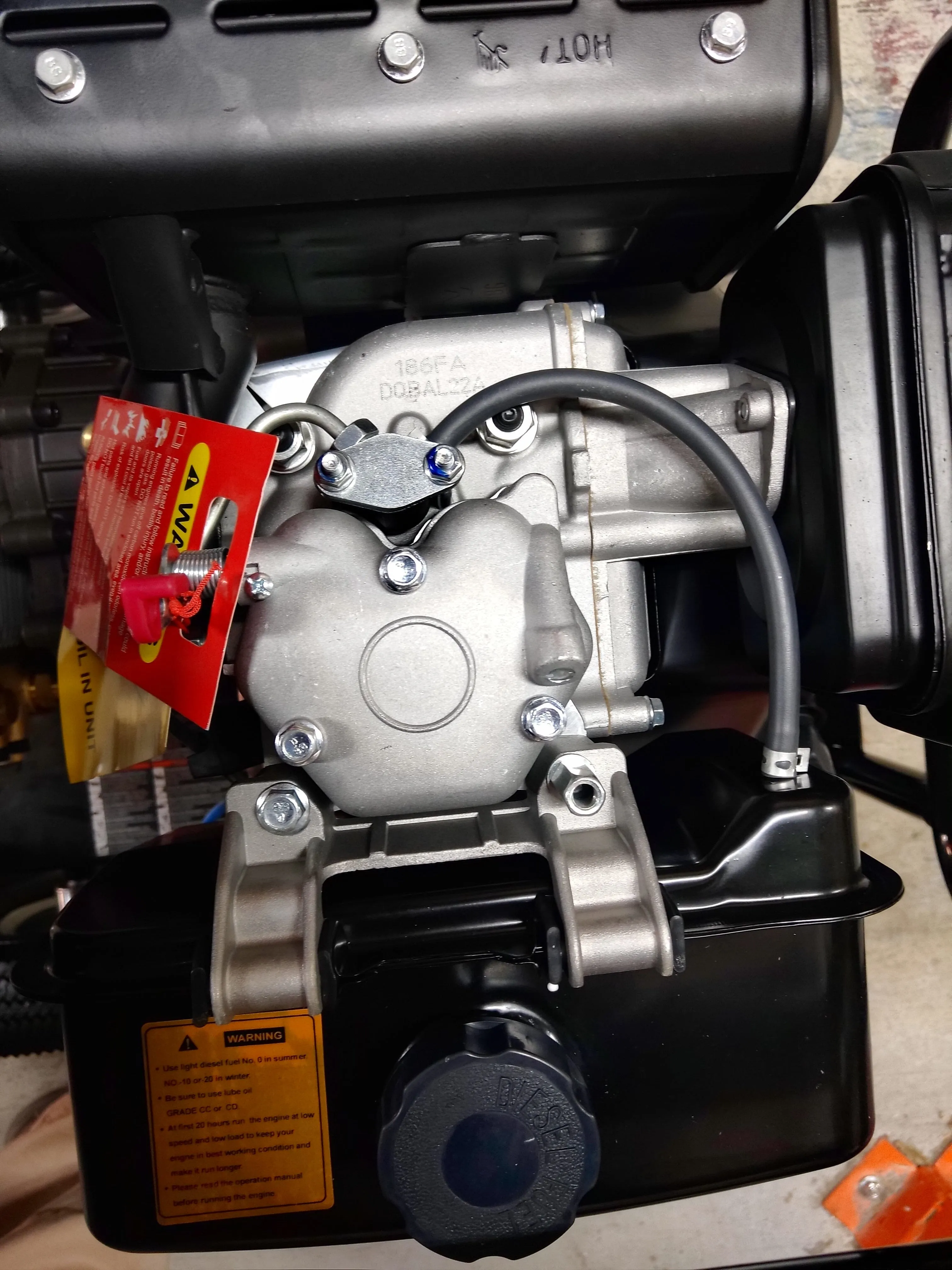

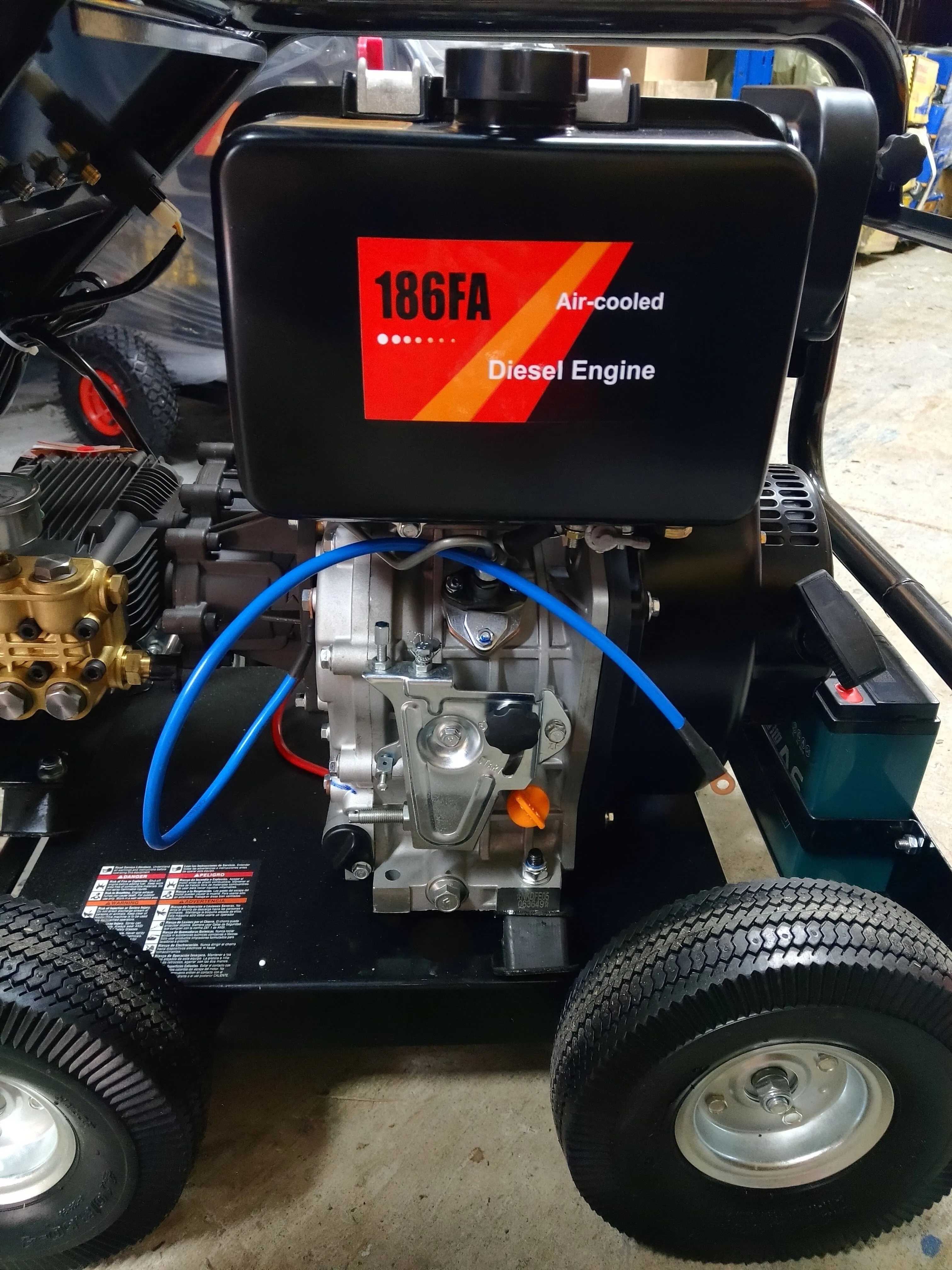

Diesel Engine:

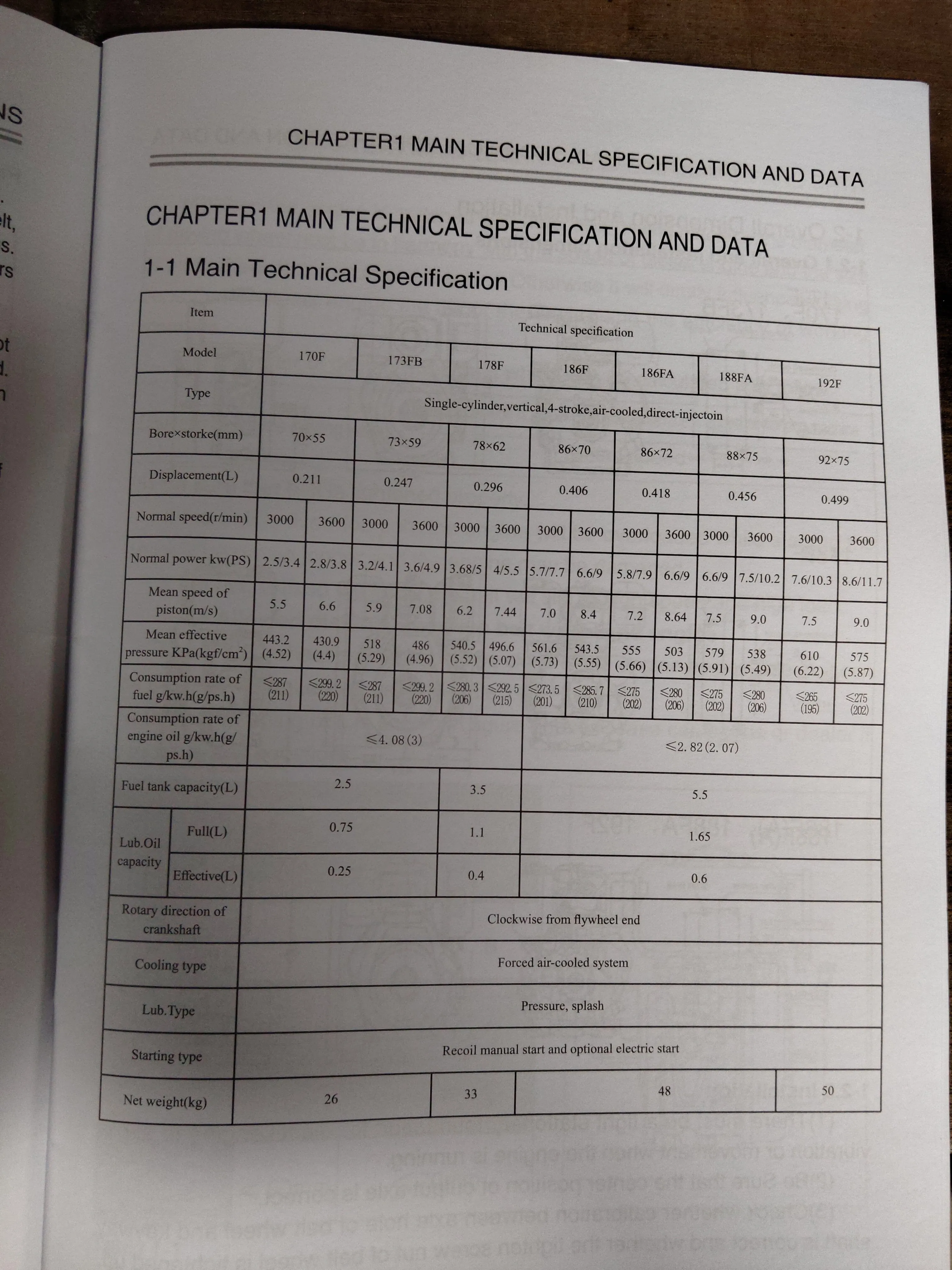

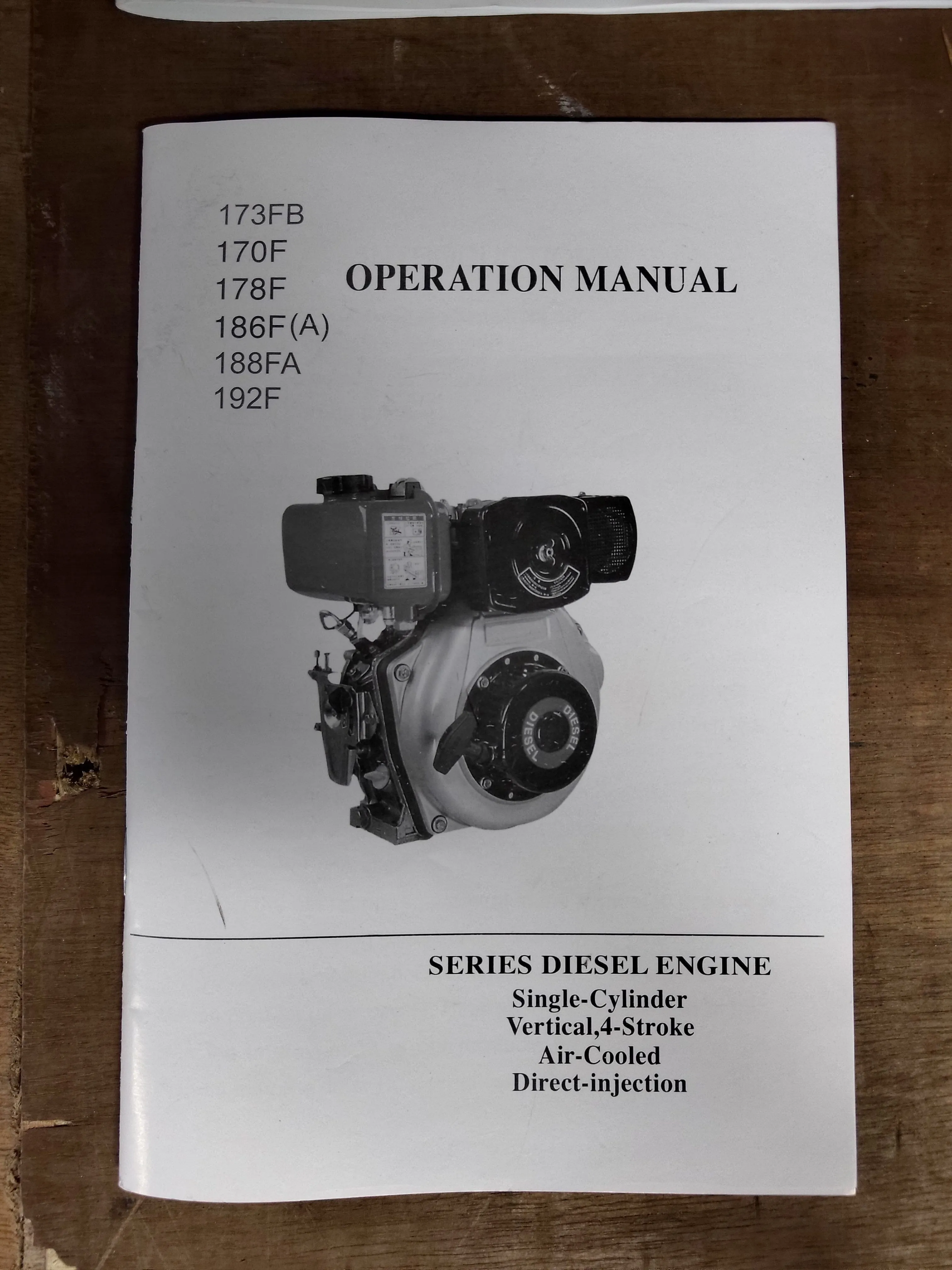

• Engine Model: 186FE
• Engine Type: Single vertical cylinder. 4-stroke. air-cooled. direct injection
• rated Output Power: 9HP
• Displacement: 406cc
• Revolution: Load 3250Rpm. no load 3400RPM

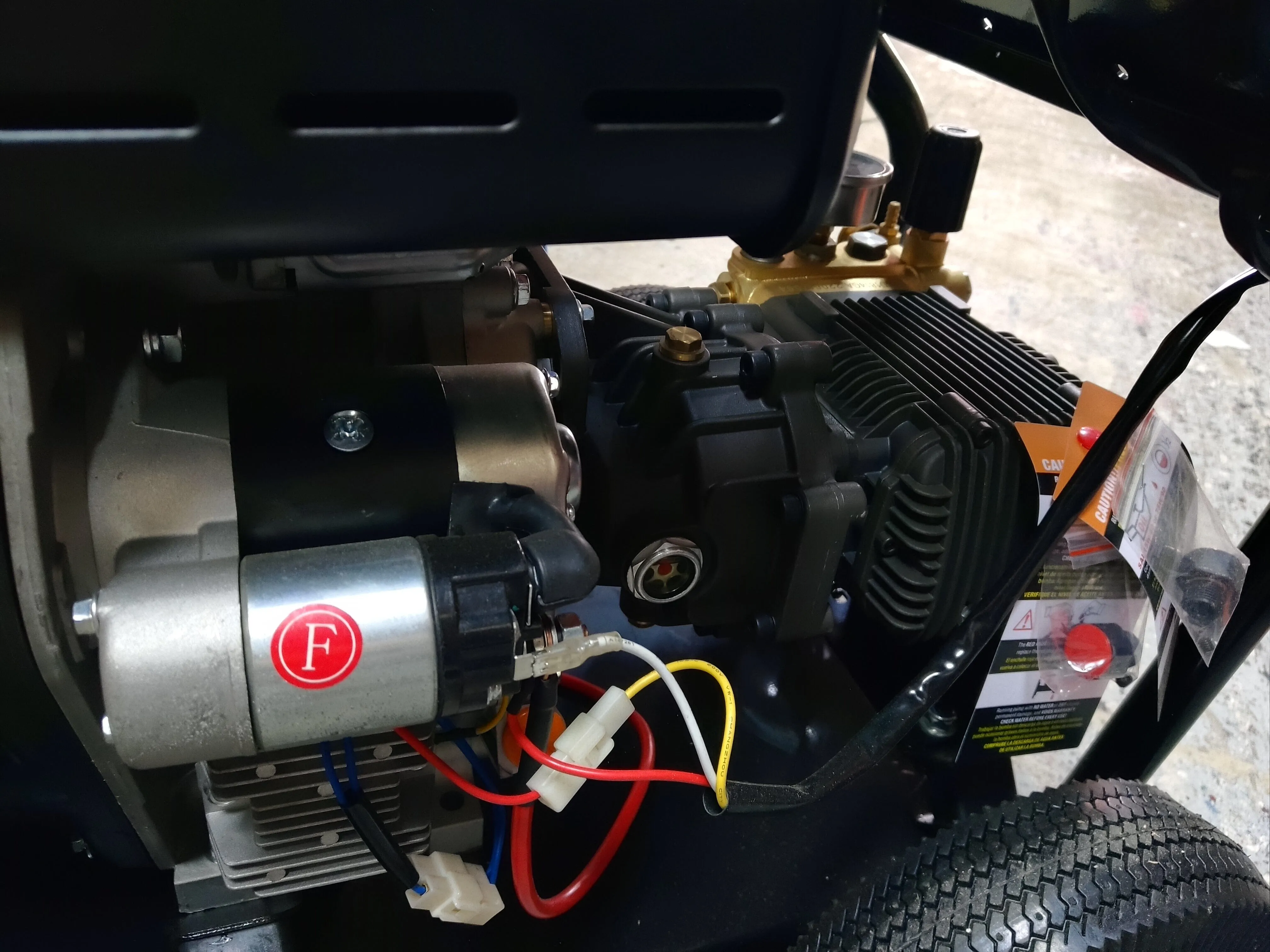

• Starting System: Recoil manual start and electril start
• Fuel Tank Capacity: 5.5L
• Fuel Consumption: 2.15-2.55L/H
• Lubrication Oil Capacity: 1.65L
• Lubrication Oil Type: SAE10W30

Battery:

• Battery: 12V 20AH

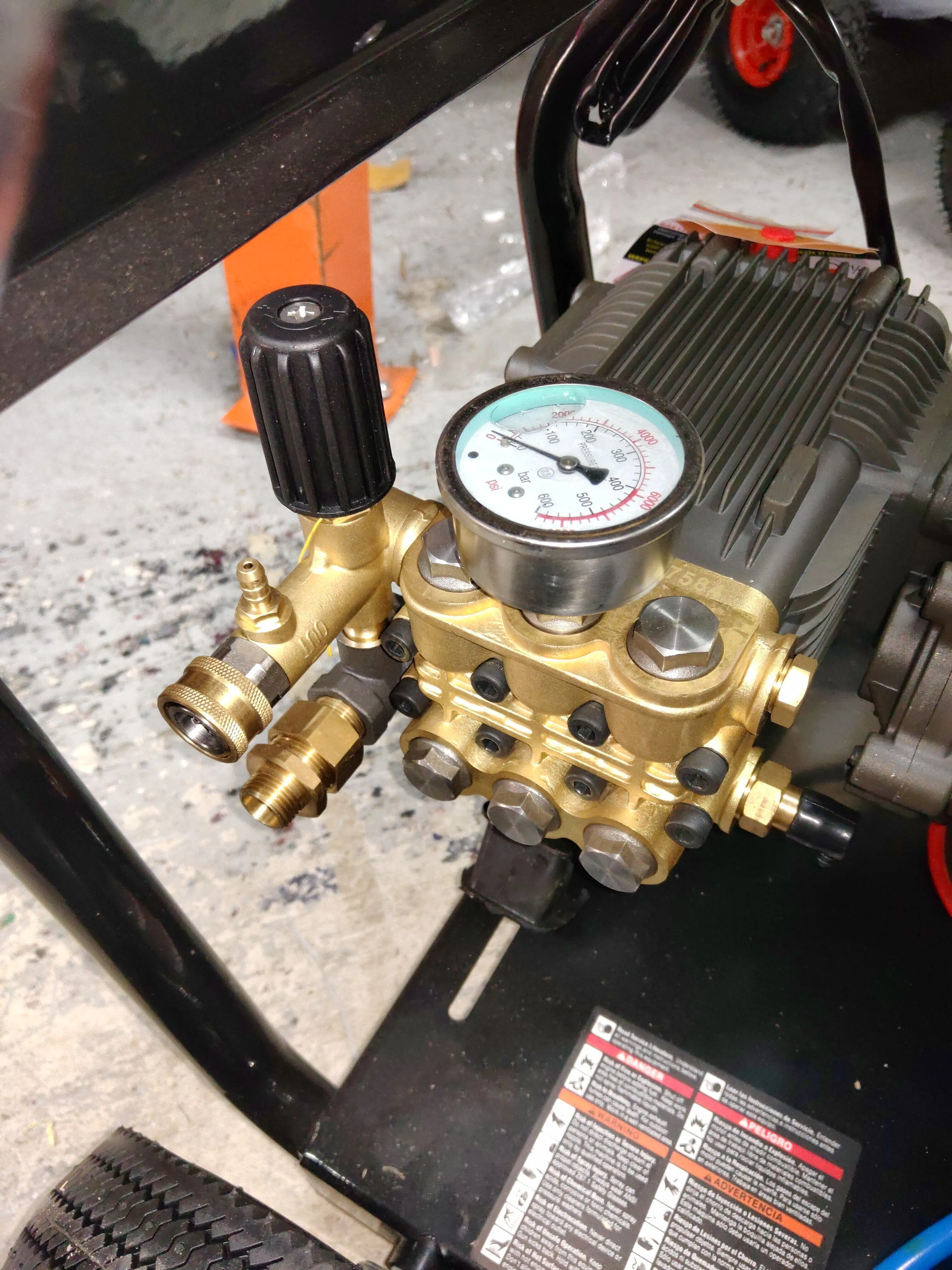

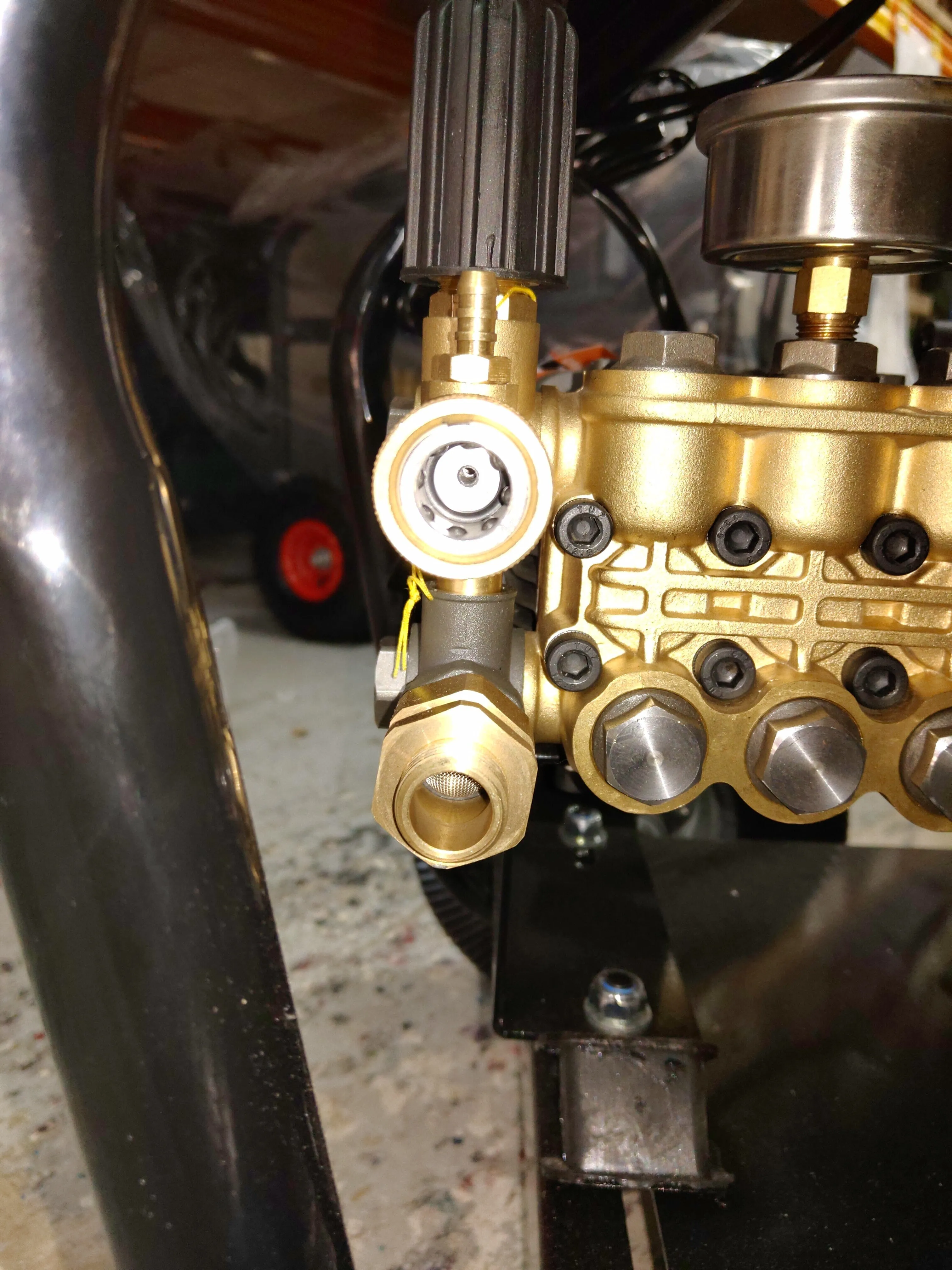

Triplex Pump:

• Pump Model: 3Wz-1807A(3WZ-1510A)
• Pump Type: Heavy-duty grade. direct drive. brass forged manifold triplex pump
• Unloader System: Inner bypassing bolt on unloader with easy start system and loose proof knob
• Safety devices: Thermal relief protection
• Plunger Sealing system: Germany Parker U type sealing set solution
• Lubrication Oil Capacity: 560ML9430ML)
• Lubrication Oil Type: SAE10W30

Water supply:

• Max. Feed Temperature: 45C
• Min. Feed Volume: 5 gallons per minute @20 psi

Dimension and weight:

• Unit Net Weight: 90KG
• Shipping Weight: 100KG
• Shipping Dimension: 80x53x64cm
