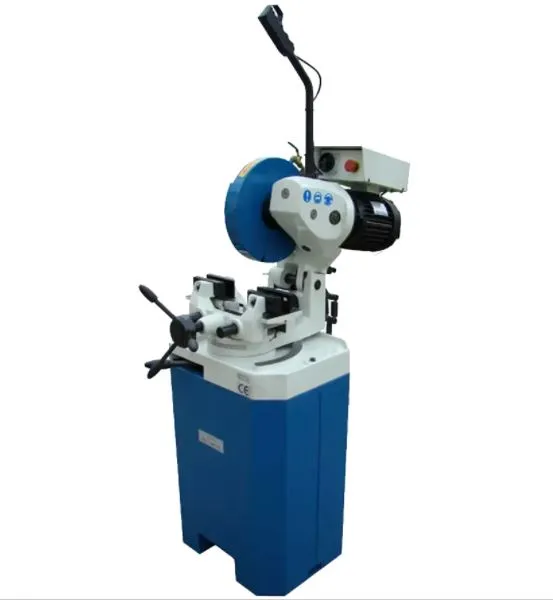

Aiko 415V 12 Low Speed Circular Saw Cutter | Model : CS315-3
Features:
1. Comes with a 315mm saw blade
2. Cast iron gear box. direct gear drive
3. Saw head swivel on both side up to 45. quick lock handle to fix the head.
4. Double cutting speed (single phase do not have)
5. Automatic blade guard cover the blade when returned to the home position

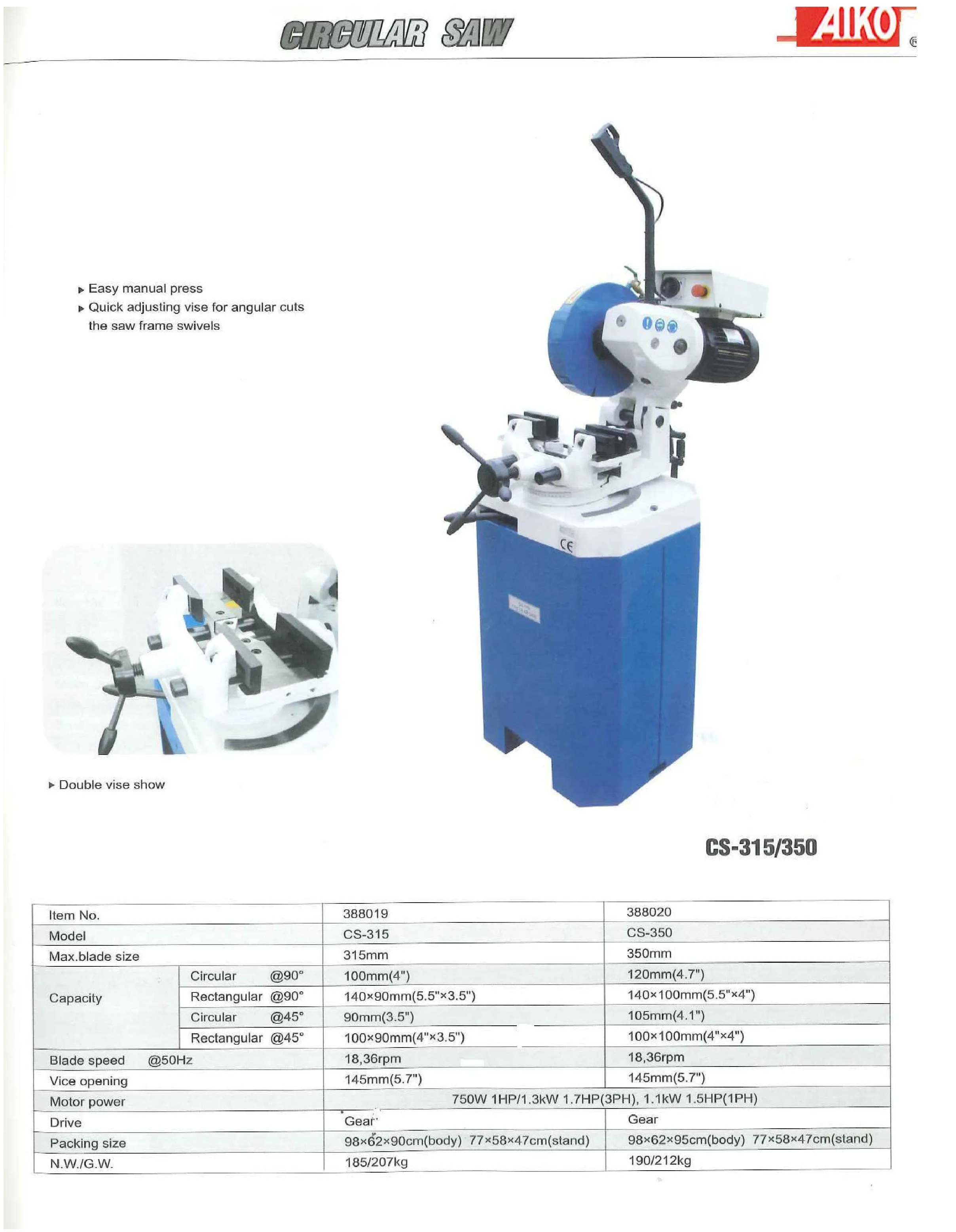

Specifications:
| Item No. | 388019 |
| Model | CS-315 |
| Max. blade size | 315mm (12.4) |
| Cut circular @90 | 100mm (4) |
| Cut rectangular @90 | 140x90 mm (5.5x3.5) |
| Cut circular @45 | 90mm (3.5) |
| Cut rectangular @45 | 100x90mm (4x3) |
| Blade speed (50HZ) | 18.36 rpm |
| Vice Opening | 145mm (5.7) |
| Motor power | 750W 1HP (3PH) |
| Drive | Gear |
| Packing size | 98x62x93cm (body) 78x60x50cm (stand) |
| N.W./G.W. | 227/261kg |
Standard accessories:
Saw blade
Coolant system
Stand
