Product Details
＋

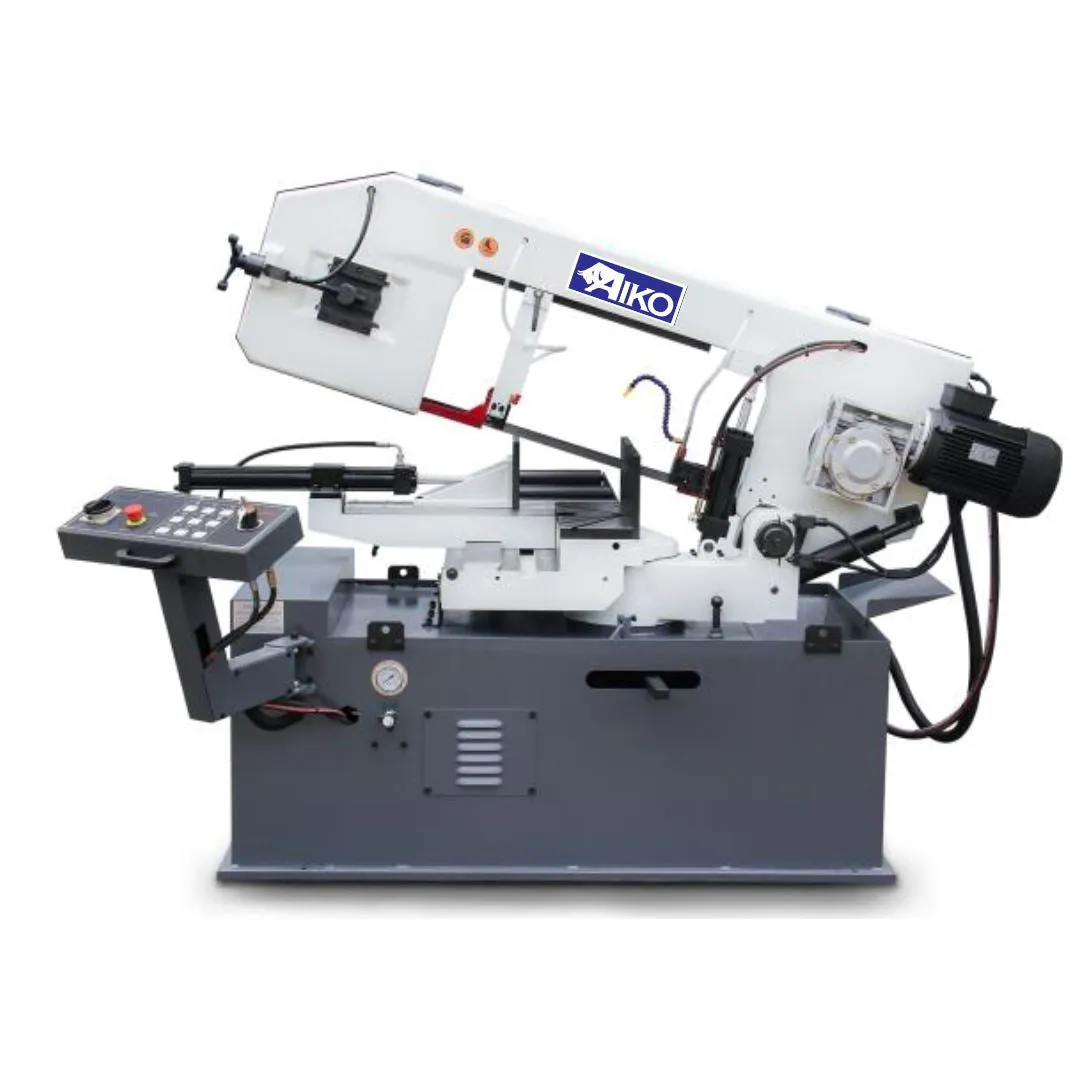

Aiko BS-460G MetalHorizontal Bandsaw Machine 18 | Model : BSM-BS460G
Features :
- Max. cutting 330mm at 90
- Hydraulic clamping vice to fix the material well
- Saw frame swivel on both side to get angle cutting
- Quick lock of the saw frame swivel
- Hydraulic descent of the saw frame
- Gear drive. double speed motor
Specification :
| Model | BS-460G | |
| Cut Circular @90 | 330mm(13) | |
| CutRectangular @90 | 460x250mm (18x9.8) | |
| Cut Circular @60 | 205mm (8) | |
| Cut Rectangular @60 | 205x250mm (8x9.8) | |
| CutCircular @45 (left and right) | 305mm (12) | |
| CutRectangular @45 (left and right | 305x250mm (12x9.8) | |
| Blade speed @50Hz | 40/80 MPM | |
| Blade Speed @60HZ | 48/96 MPM | |
| Blade size | 27X0.9X3960mm | |
| Motor power | 1.5/2.2 kW | |
| Drive | Gear | |
| Packing size | 230x105x163 cm | |
| N.W./G.W. | 900/1060 kg | |
*specification and colour of product are subject to change without prior notice
