Product Details
＋

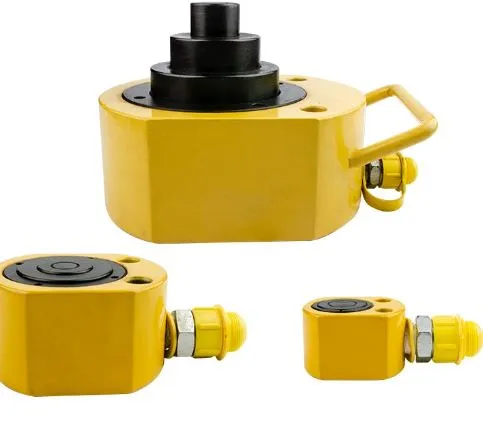

AIKO Hydraulic Cylinder Low | Model: HHYG-D
Features:
- Able to lift a large steel structure in very limited space.
- Only the low height HHYG cylinders are suitable for use in this confined space.
- Lightweight. low profile design for use in confined spaces.
- Baked enamel finish for increased corrosion resistance.
- Plunger wiper reduces contamination. extending cylinder life.
- It is easy to carry. there are two holes on the surface of the oil vat for stability.
- Match pump HHB-700. HHB-800. HHB-600A.
Specifications:

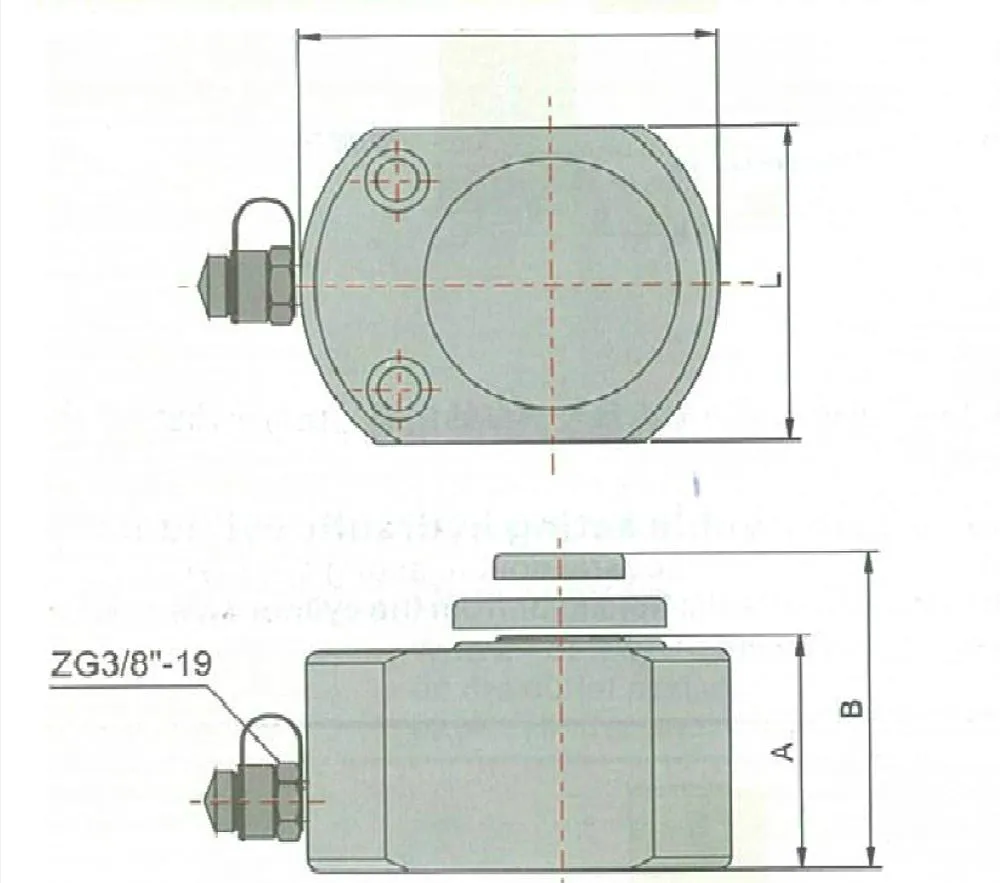

Model | Tonnage (T) | Stroke (mm) | Oil capacity (cm) | Matching pump | Closed height A (mm) | Extended Height B (mm) | Outside Dia. (mm) | G.W. (kg) |
HHYG-10D | 10 | 25 | 30 | HHB-700C | 49 | 74 | 83 x 60 | 1.6 |
HHYG-20D | 20 | 27 | 51 | 57 | 84 | 99 x 76 | 2.7 | |
HHYG-30D | 30 | 54 | 123 | 64 | 118 | 123 x 98 | 4.7 | |
HHYG-50D | 50 | 66 | 188 | 74 | 140 | 148 x 120 | 7.9 |
