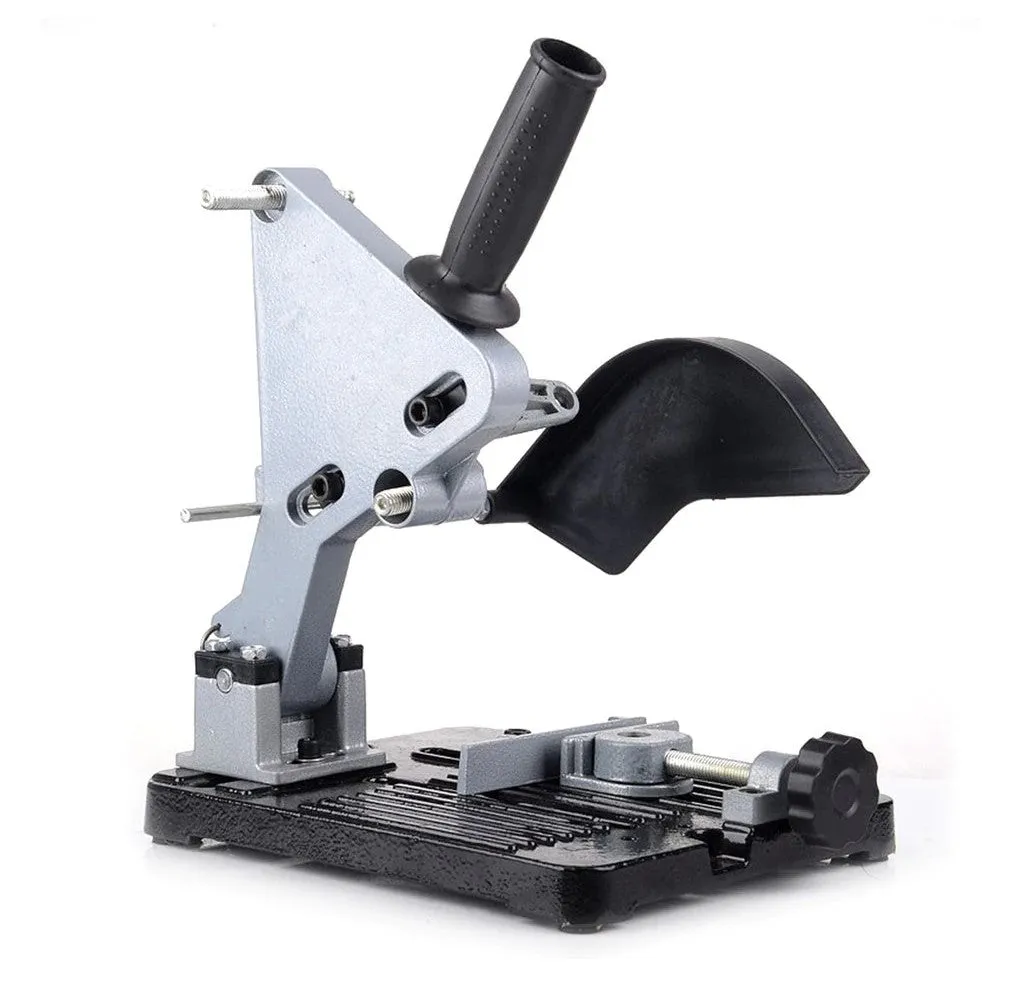

Angle Grinder Stand for 4 (TZ-6103/#HT115) | Model : DS-HT115

Product Details :

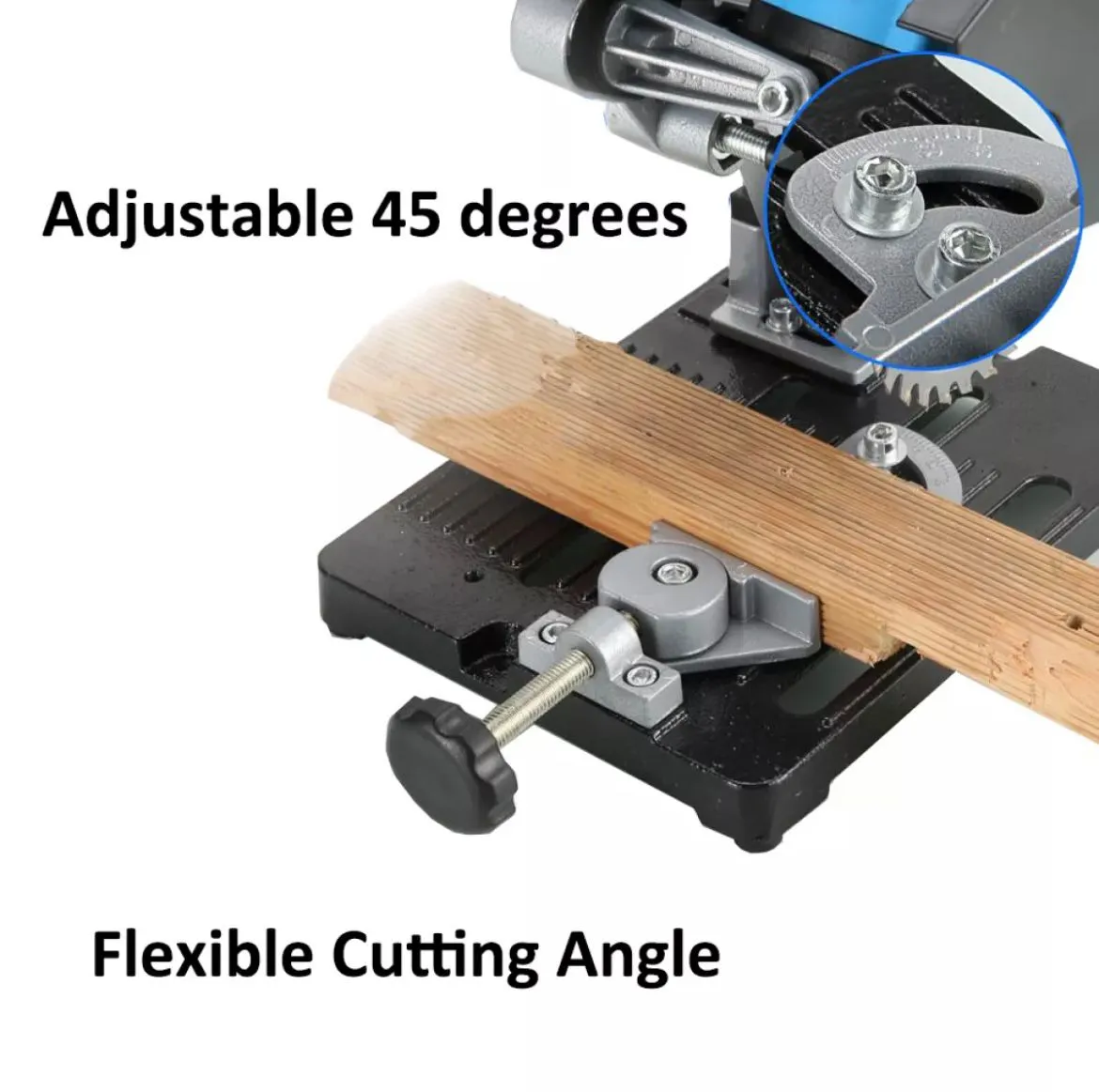

• Multi-angle adjustable cutting.

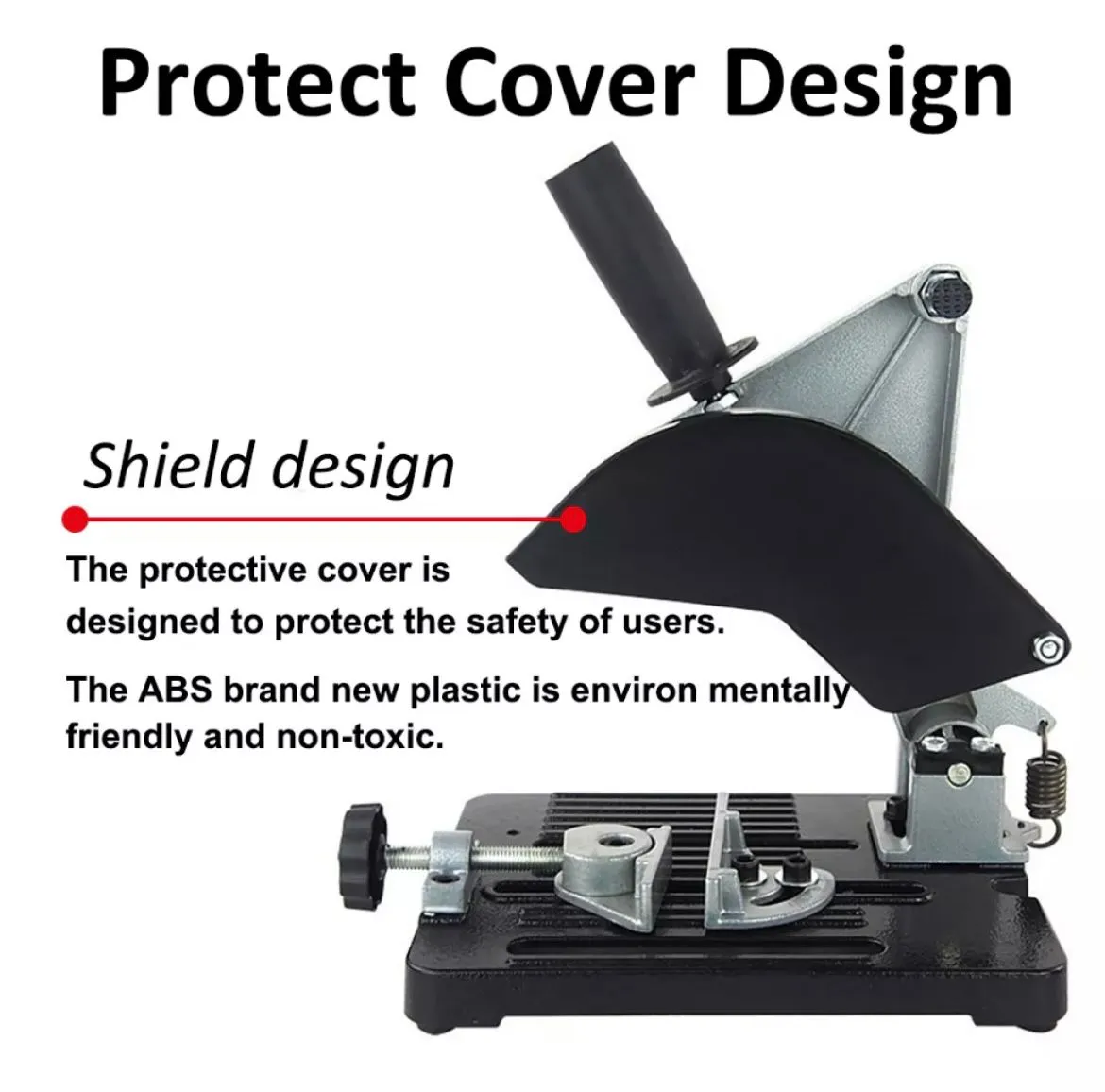

• Protective cover design is safe and reliable.
• A multi-purpose machine.

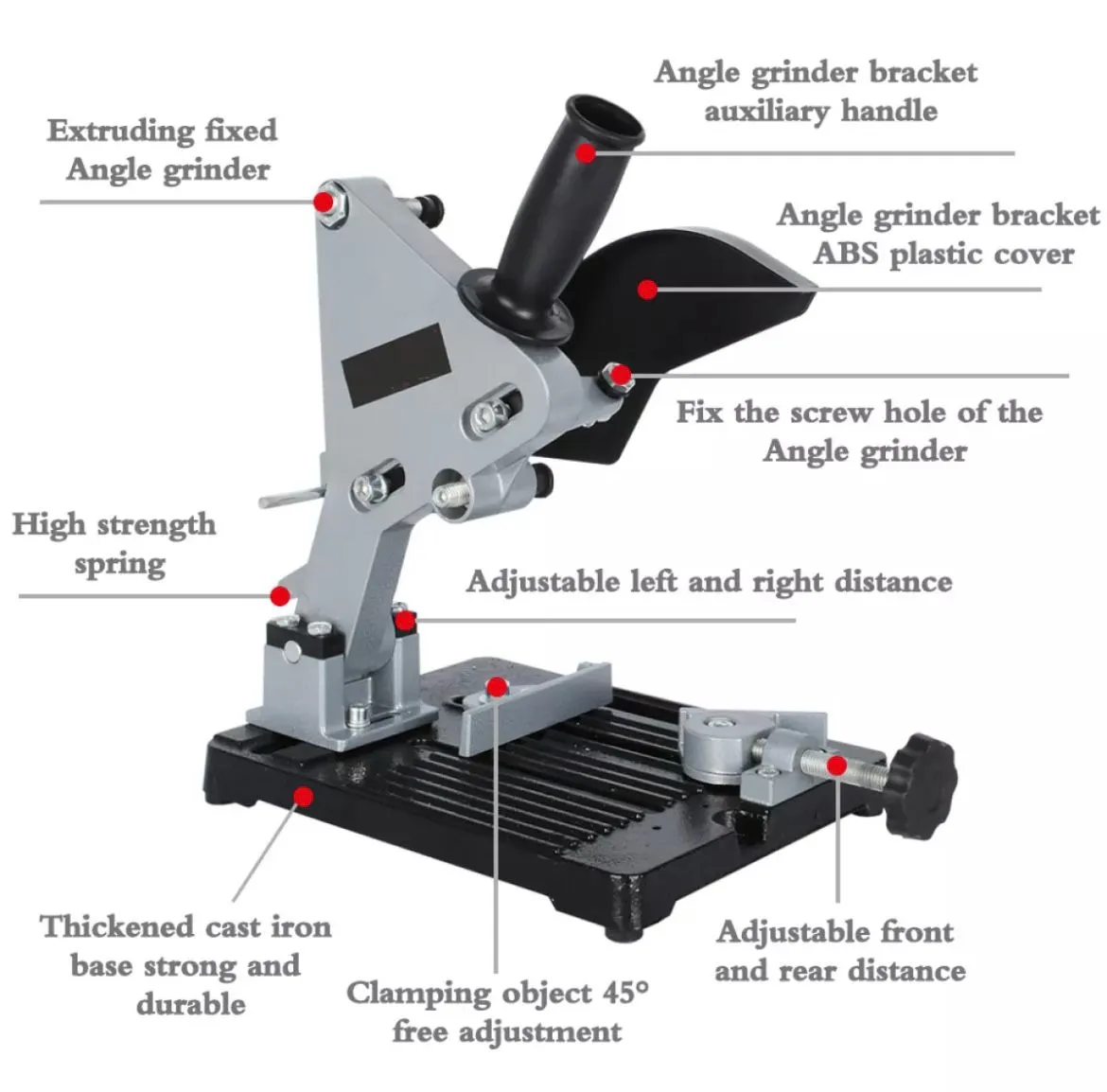

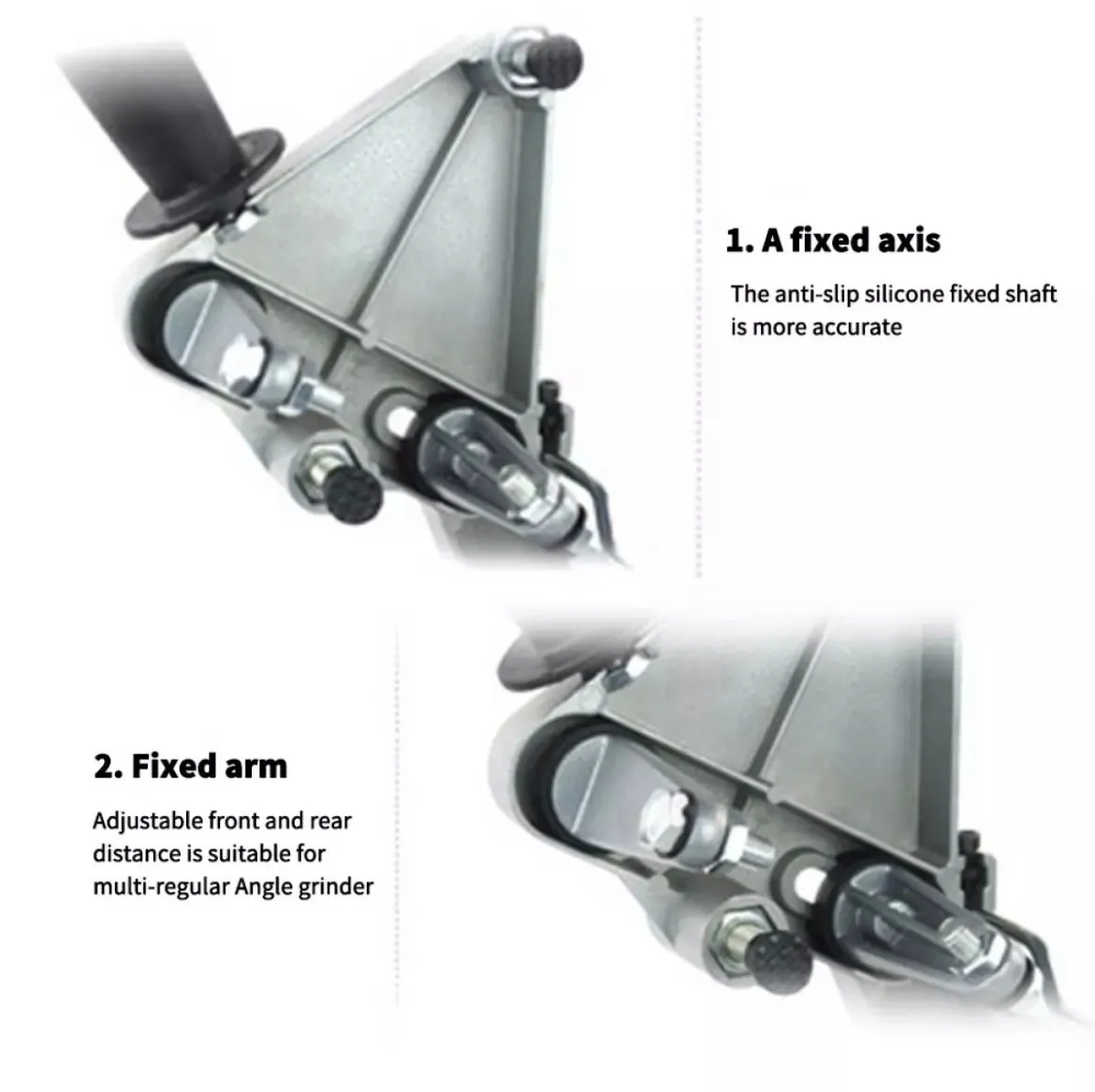

• Aluminum bracket with a plastic anti-skidding handle for better cutting control.
• Angle grinder stand can be used as a simple cutting machine by clamping an angle grinder.
• Suitable for angle grinder with disc diameter 100mm. 115mm or 125mm.

Specifications:

Application Machine: 100/115/125mm

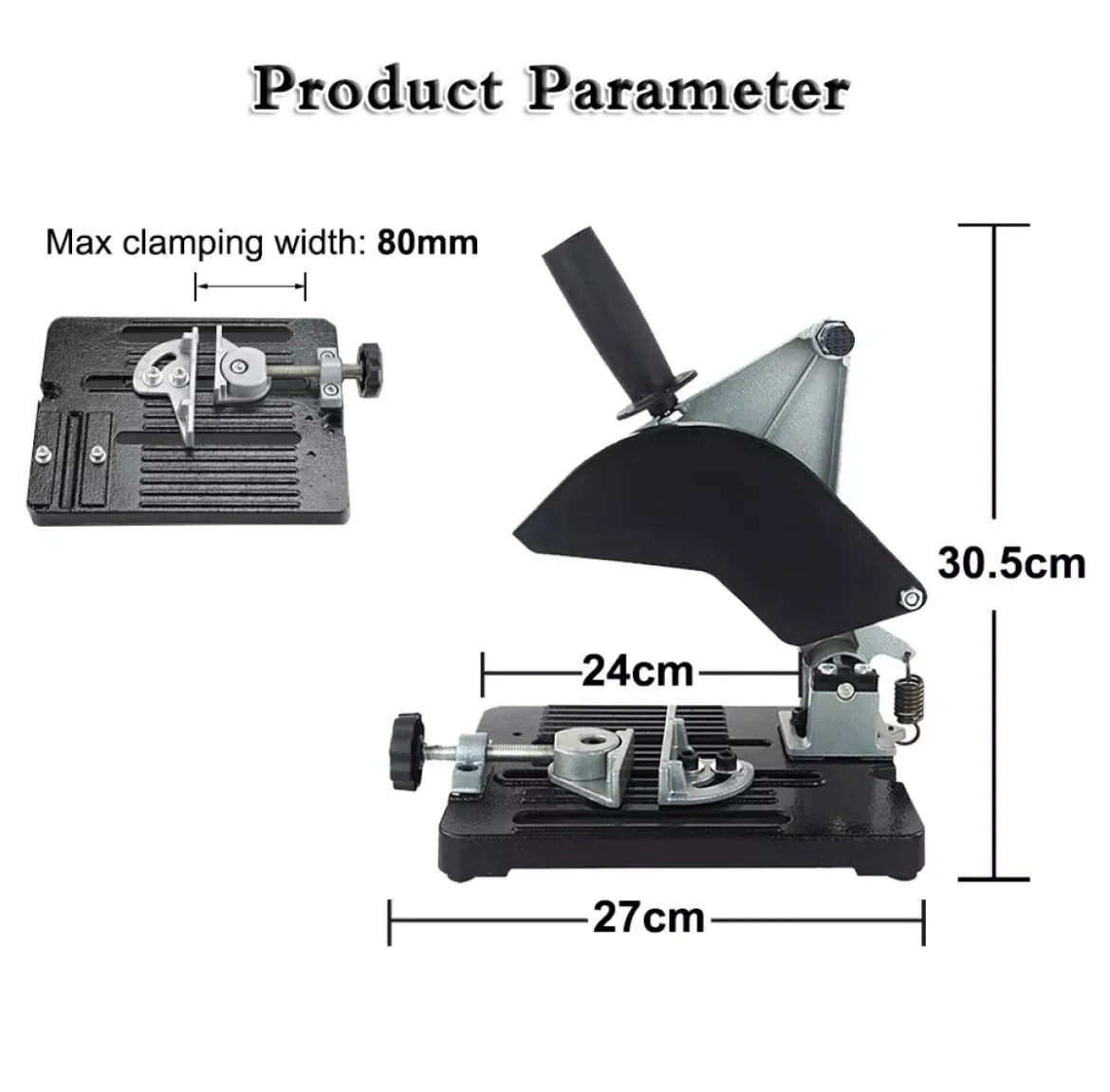

Width Clamp: 80mm

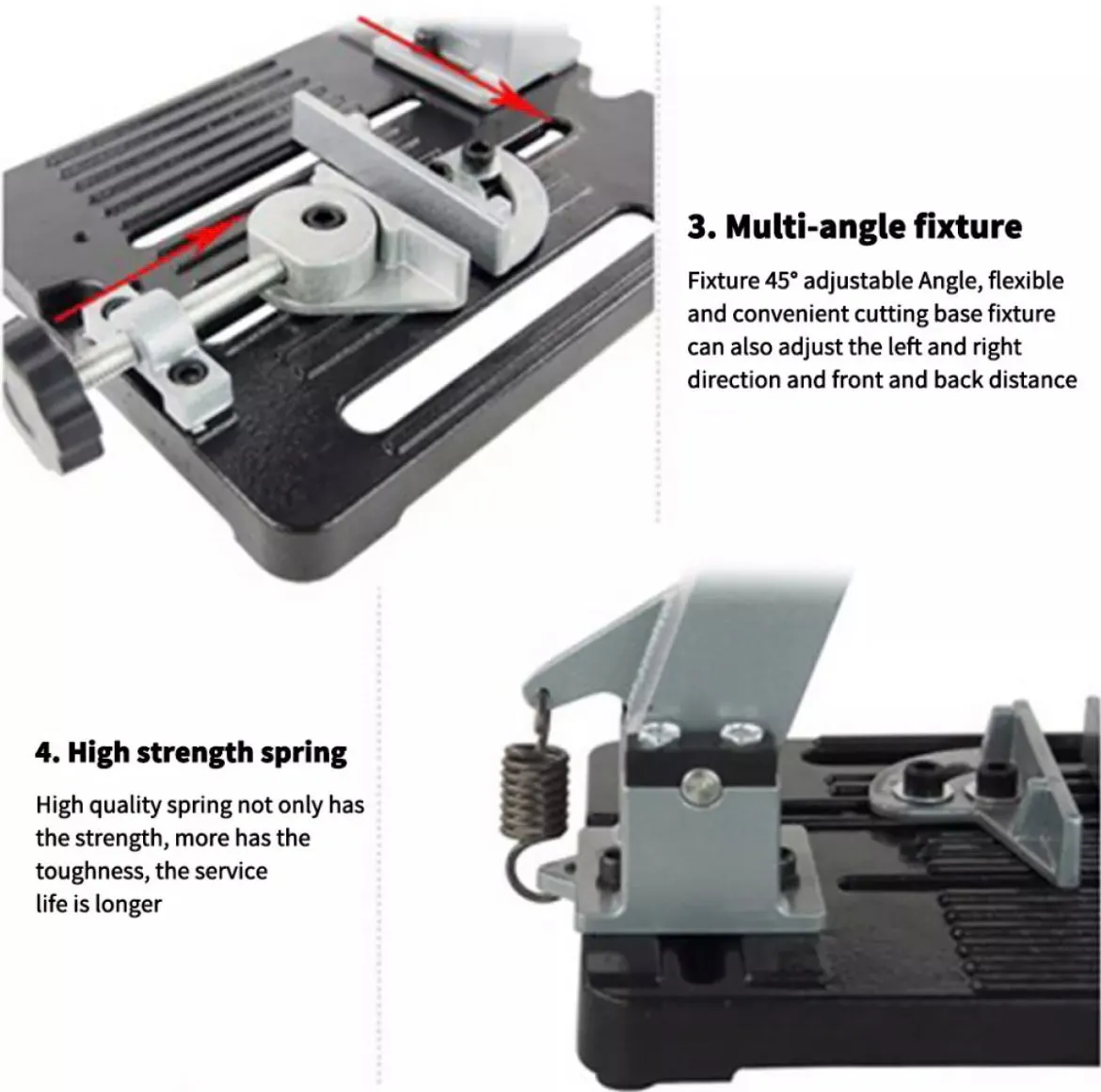

Angle Clamp: 45
Depth Cutting: 30mm
Item Weight: 3126g / 6.89lb
Package Weight: 3343g / 7.37lb

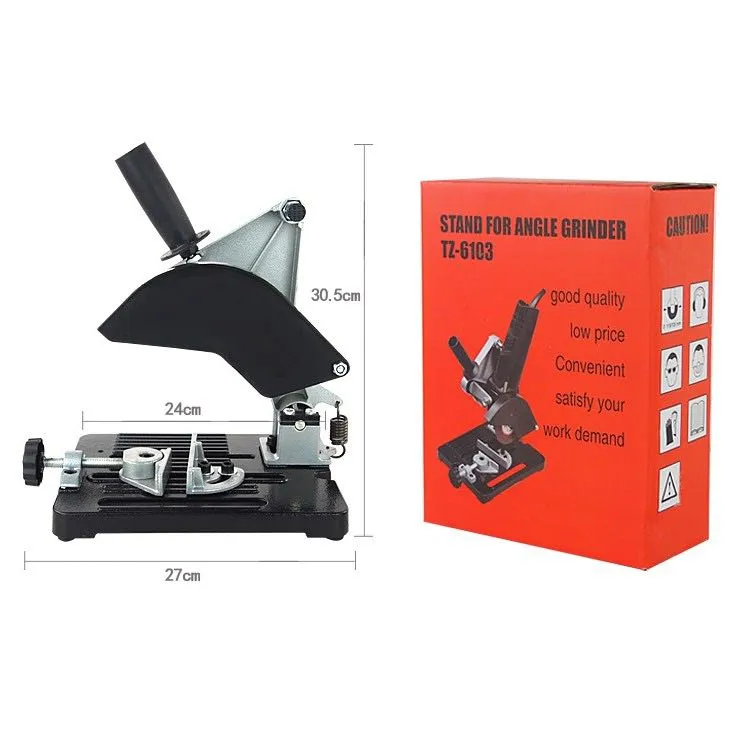

Package Size: 260 * 200 * 90mm

Note : Please allow 1-30mm differs due to manual measurement.
Due to the different display and different light. the picture may not reflect the actual color of the item. Thanks for your understanding.

Operation:
Clamp Work Piece:
Rotate the screw knob and loosen the clamp. place work piece in the clamp and then tighten the screw to hold the work piece securely.
Adjust the position and angle of work piece.
Loosen the screws to adjust the position and angle of the clamp. Tighten the screws after the position is adjusted. Please ensure that the work piece should be in the centre of cutting dics.

Cutting:
Switch on the angle grinder and press down handle to cut the work piece with the angle grinder.
