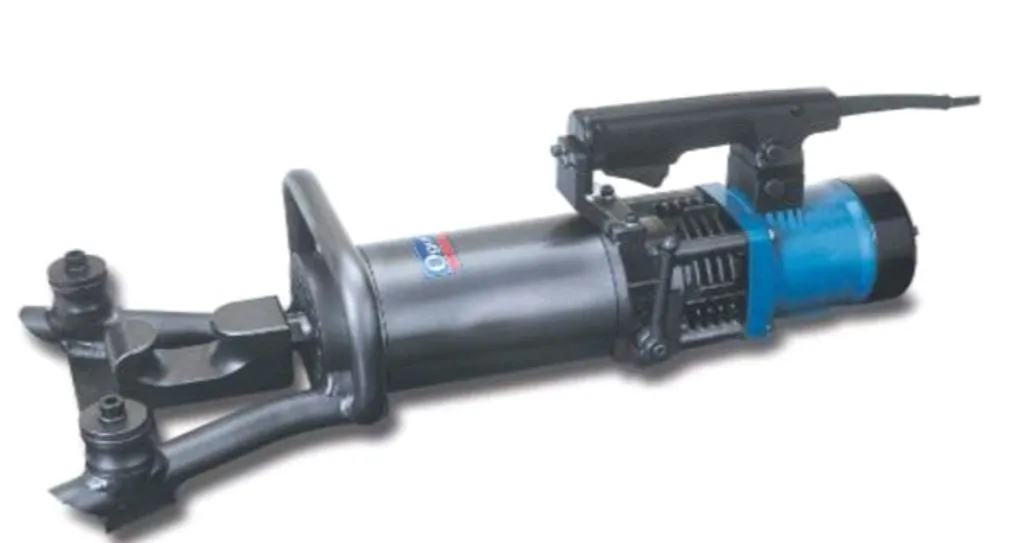

Ogura 110V D32 Hydraulic Rebar Bender | Model : OG-HBB-32HPW-115V

Features :

• stand-alone bender with unique built-in hydraulic pump for modifying rebar bending angle for D32 high tensile rebar at construction site.

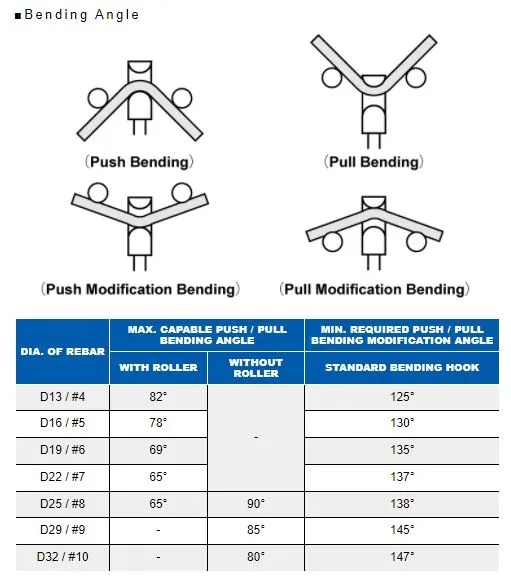

• Capable of both push bending and pull bending with free rotating bending hook.
• The powerful motor is double insulated and can easily handle the hardest of tasks.

Specifications :

• Motor : 115V (50Hz).
• Power : 1330W with double insulation
• Max Bending Capacity : Max. D32 / #10 (620N/mm²(63kgf/mm²)) = Grade60 / SD490
• Bending Speed :
• 90 degrees bend for D32 (#10) rebar
• push bend: approx. 16s

• pull bend: approx. 15s

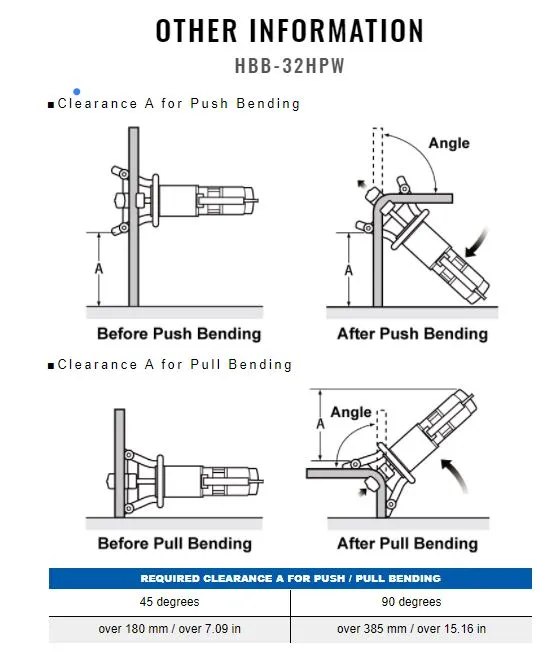

• Min Required Height from the ground when 90 degree bend
• push bend: approx. 495 mm
• pull bend: approx. 185 mm
• Dimensions : 670 x 302 x 219 mm
• Weight : 25.4 kg / 56 lbs

Standard Accessories :

• Wooden Box
• Hydraulic oil #46
• Hex Wrenches (3. 4. 5. 6. 8mm)
• Spanner (14 x 17mm & 24mm)
• Roller
