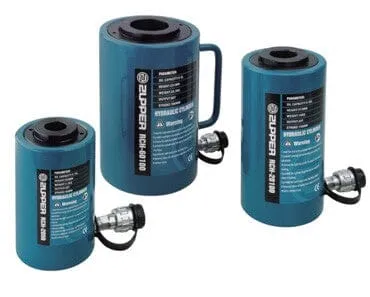

Zupper Single Action Hollow Plunger Steel Cylinder | Model : ZUPPER-RCH-

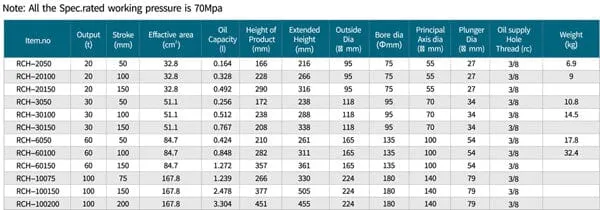

Specifications :
20T (50mm)
Model : RCH-2050
Output(t) : 20
Stroke(mm) : 50
Effective area(cm) : 32.8
Oil capacity(l) : 0.164
Height of product(mm) : 166
Extended height(mm) : 216
Outside diameter(mm) : 95
Bore diameter(mm) : 75
Principal axis diameter(mm) : 55
Plunger diameter(mm) : 27
Oil supply hole thread(rc) : 3/8
Weight(kg) : 6.9
20T (100mm)
Model : RCH-20100
Output(t) : 20
Stroke(mm) : 100
Effective area(cm) : 32.8
Oil capacity(l) : 0.328
Height of product(mm) : 228
Extended height(mm) : 266
Outside diameter(mm) : 95
Bore diameter(mm) : 75
Principal axis diameter(mm) : 55
Plunger diameter(mm) : 27
Oil supply hole thread(rc) : 3/8
Weight(kg) : 9
30T (50mm)
Model : RCH-3050
Output(t) : 30
Stroke(mm) : 50
Effective area(cm) : 51.1
Oil capacity(l) : 0.256
Height of product(mm) : 172
Extended height(mm) : 238
Outside diameter(mm) : 118
Bore diameter(mm) : 95
Principal axis diameter(mm) : 70
Plunger diameter(mm) : 34
Oil supply hole thread(rc) : 3/8
Weight(kg) : 10.8
30T (100mm)
Model : RCH-30100
Output(t) : 30
Stroke(mm) : 100
Effective area(cm) : 51.1
Oil capacity(l) : 0.512
Height of product(mm) : 238
Extended height(mm) : 288
Outside diameter(mm) : 118
Bore diameter(mm) : 95
Principal axis diameter(mm) : 70
Plunger diameter(mm) : 34
Oil supply hole thread(rc) : 3/8
Weight(kg) : 14.5
30T (150mm)
Model : RCH-30150
Output(t) : 30
Stroke(mm) : 150
Effective area(cm) : 51.1
Oil capacity(l) : 0.767
Height of product(mm) : 208
Extended height(mm) : 338
Outside diameter(mm) : 118
Bore diameter(mm) : 95
Principal axis diameter(mm) : 70
Plunger diameter(mm) : 34
Oil supply hole thread(rc) : 3/8
