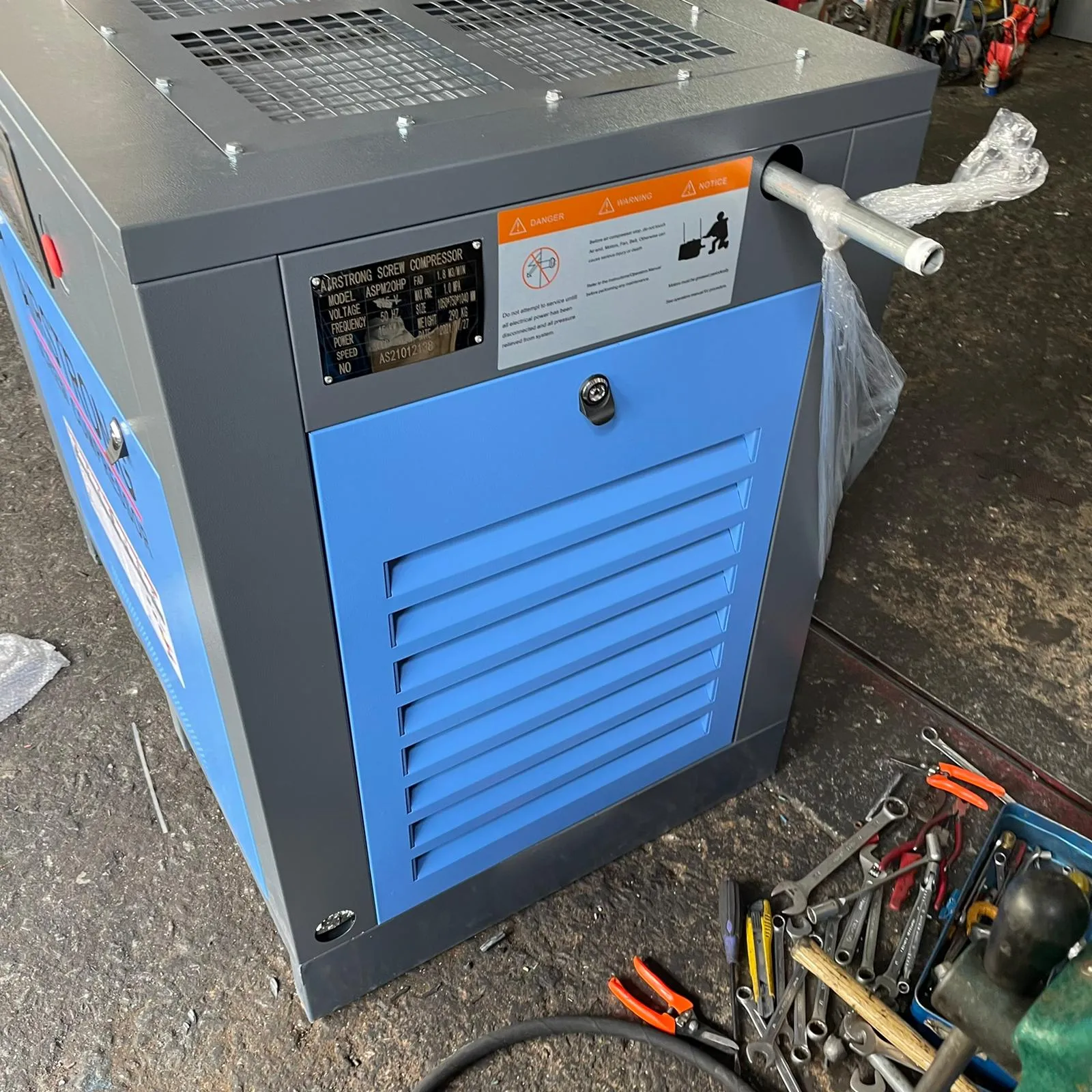

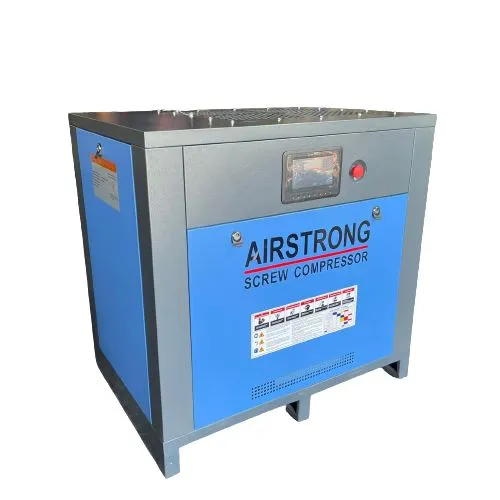

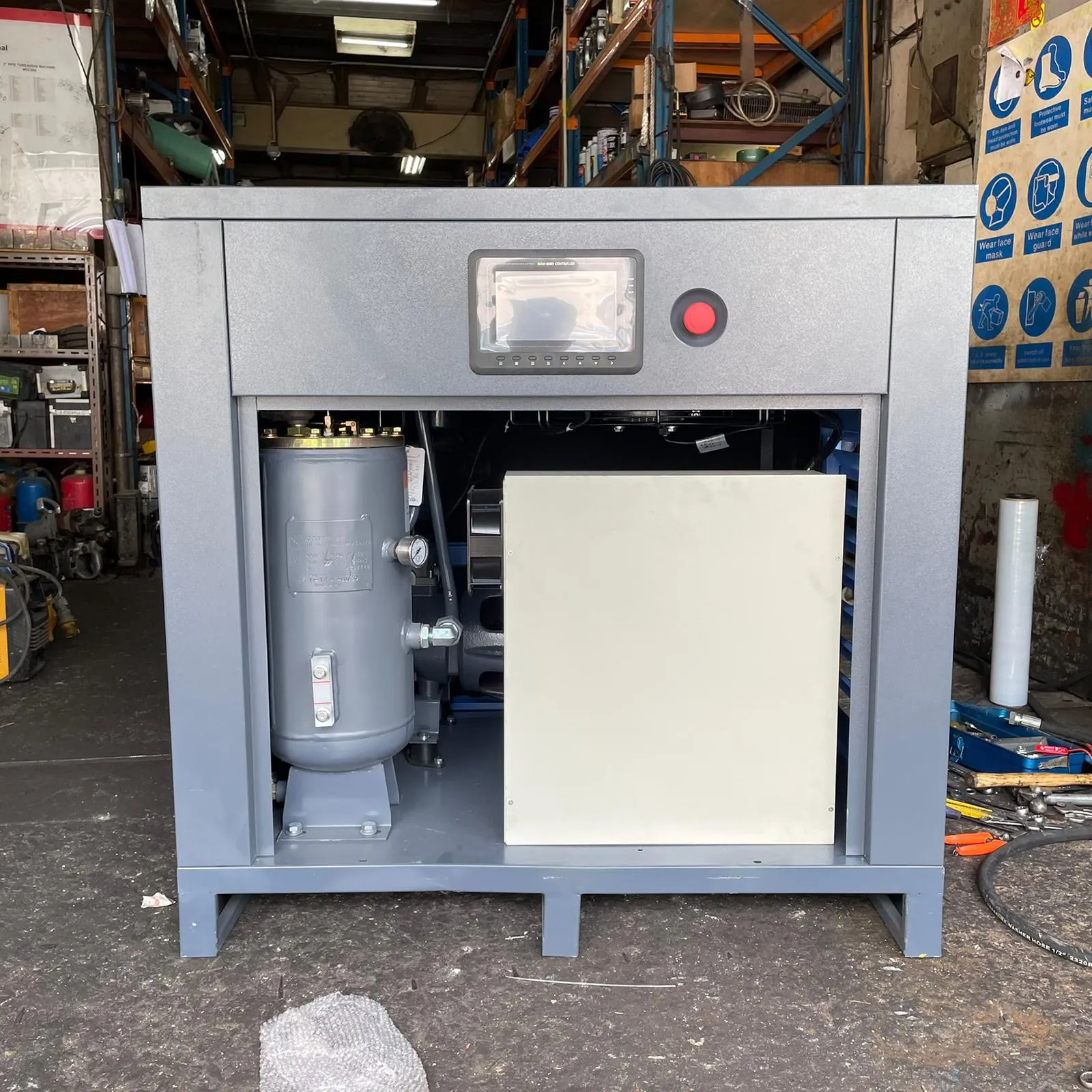

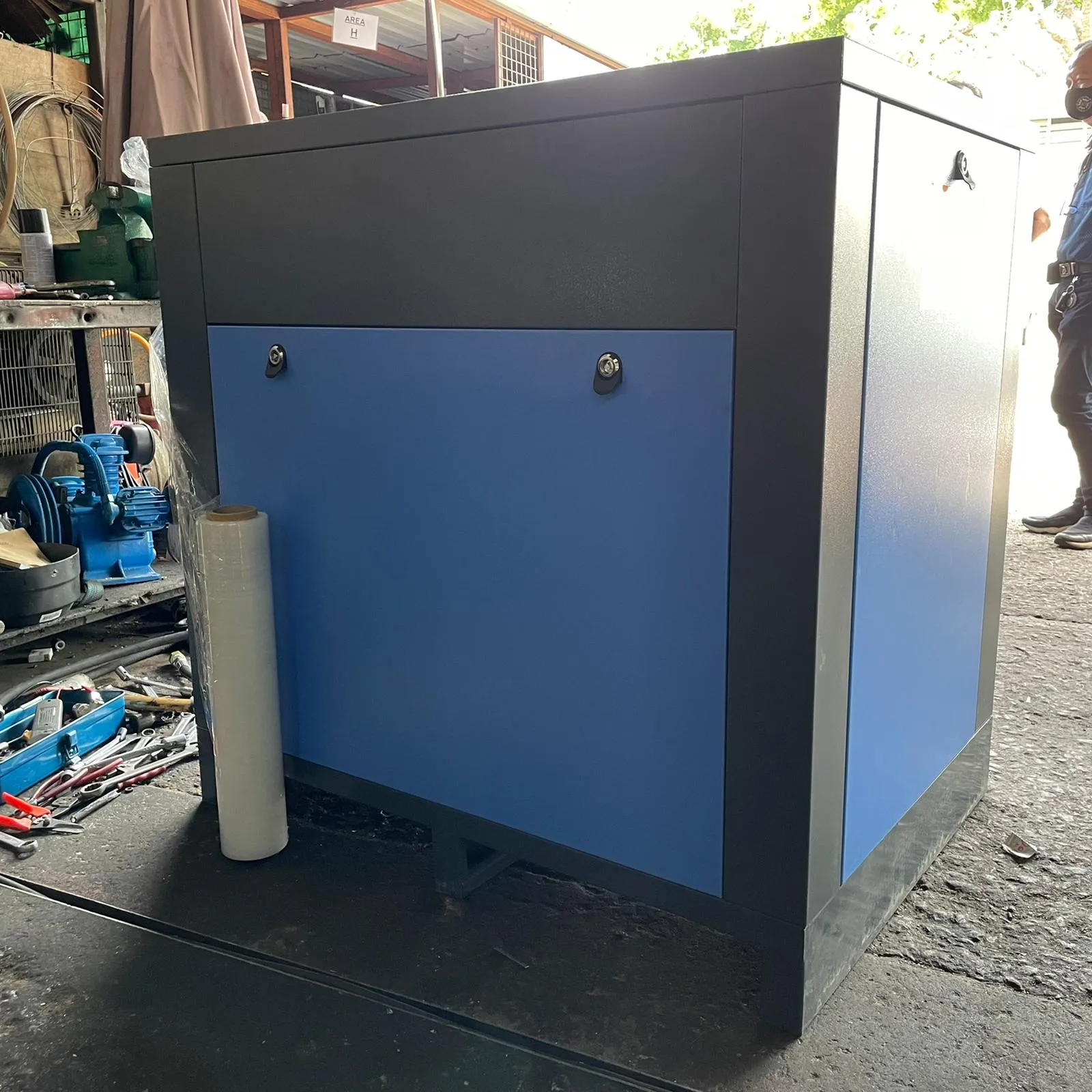

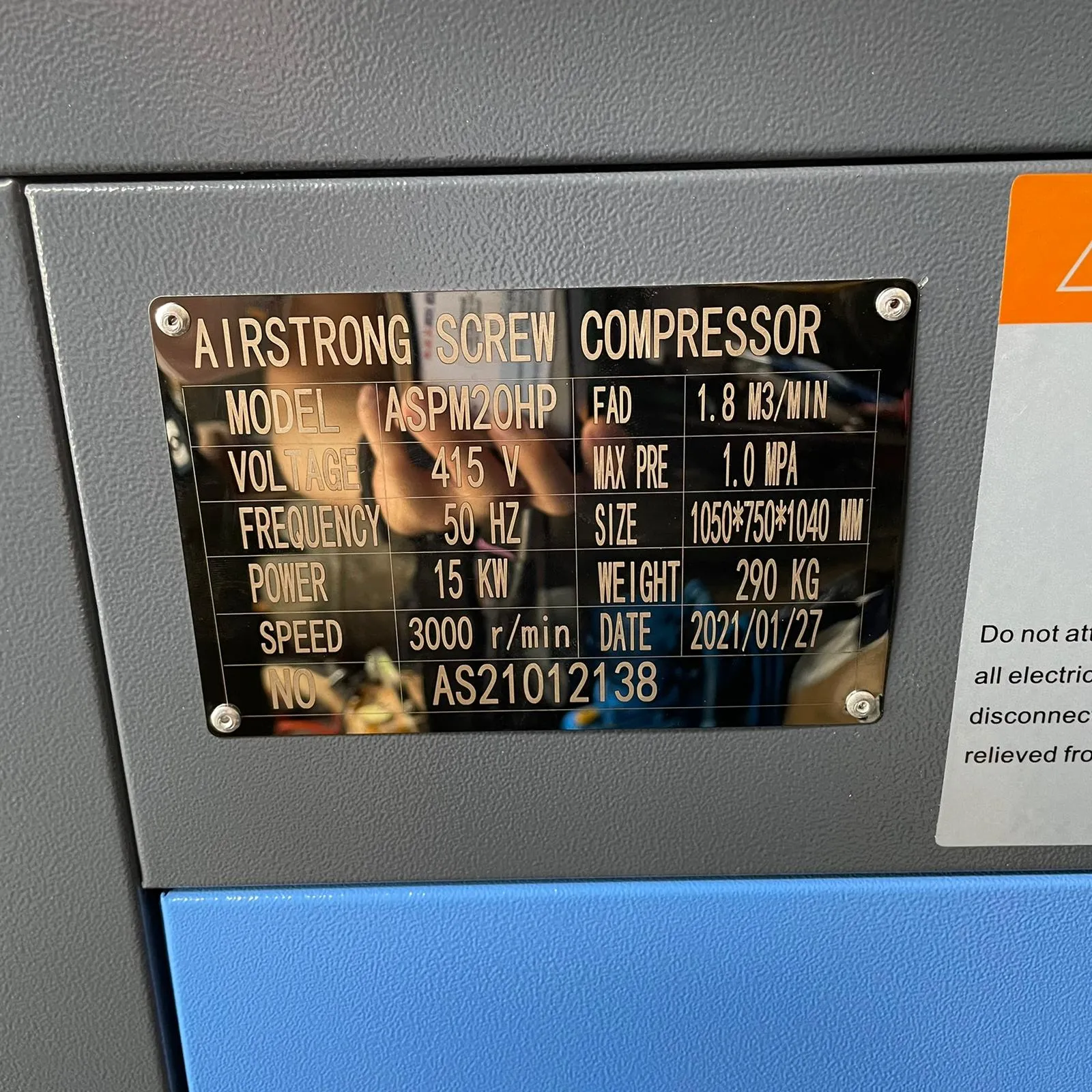

Airstrong ASPM20HP Rotary Inverter Screw Air Compressor with 415V. 20Hp. 10 Bar | Model : ASPM20HP

Email us or Call us at 6483 5888 to request for quote

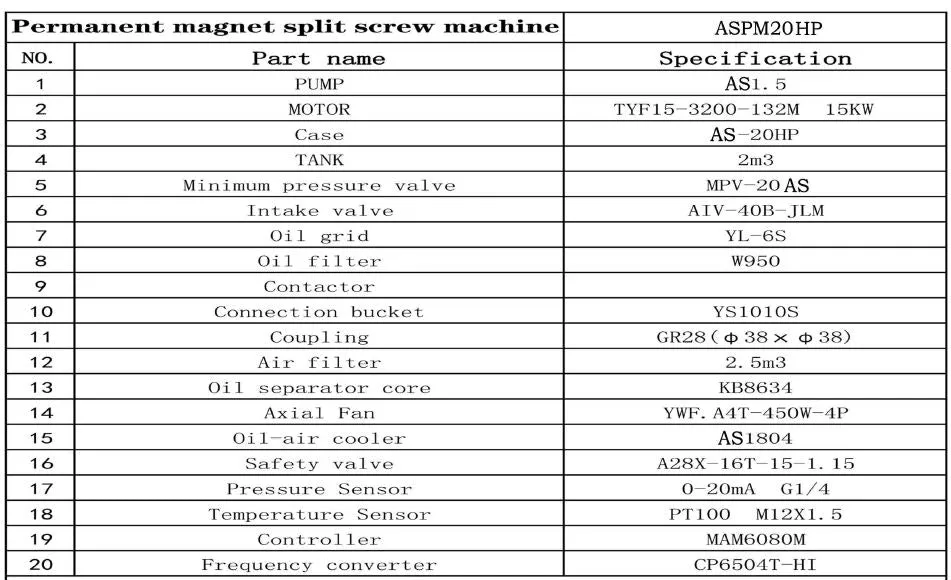

Specifications :

• Permanent Magnet Split Screw Machine
• Model :ASPM20HP
• Pump : AS1.5

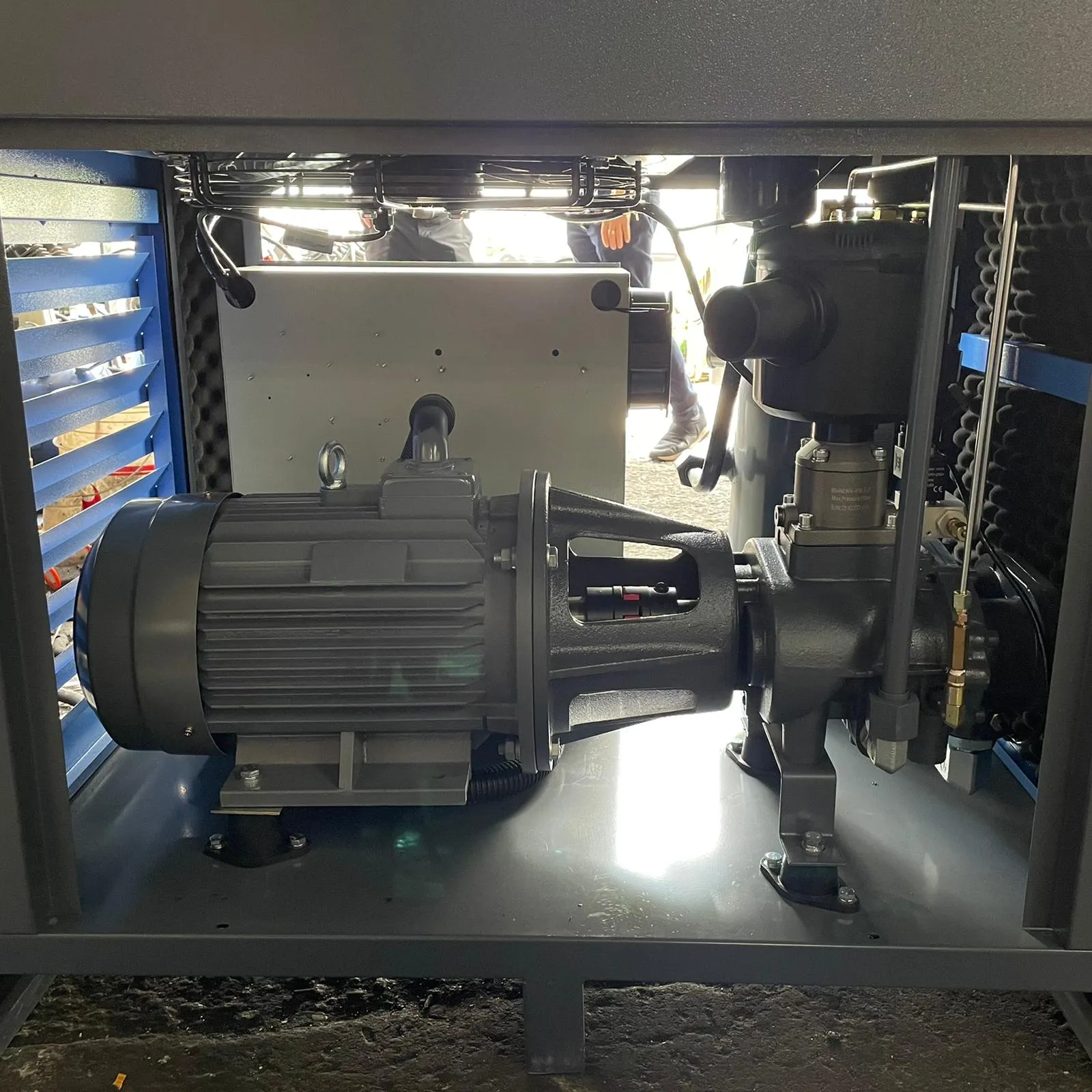

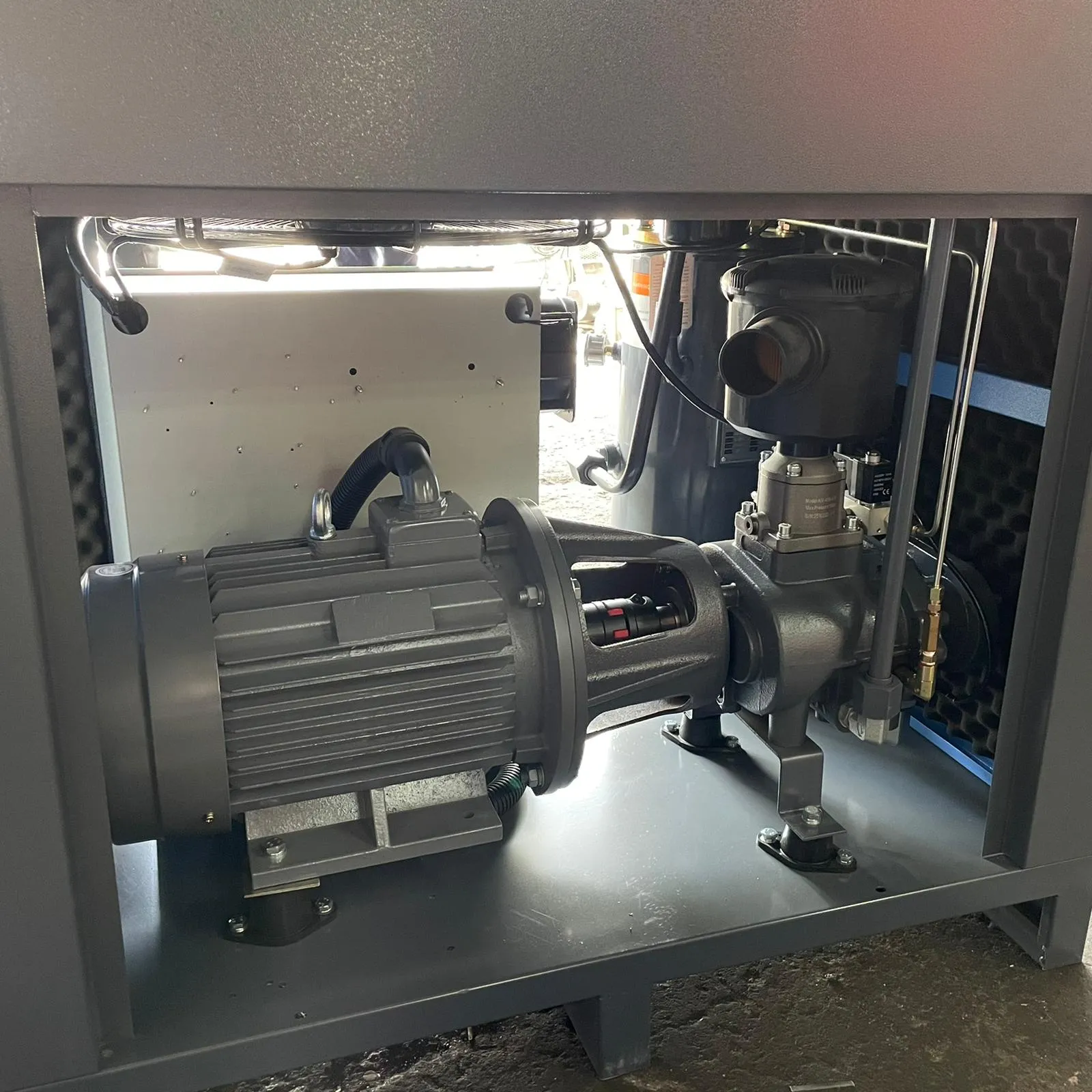

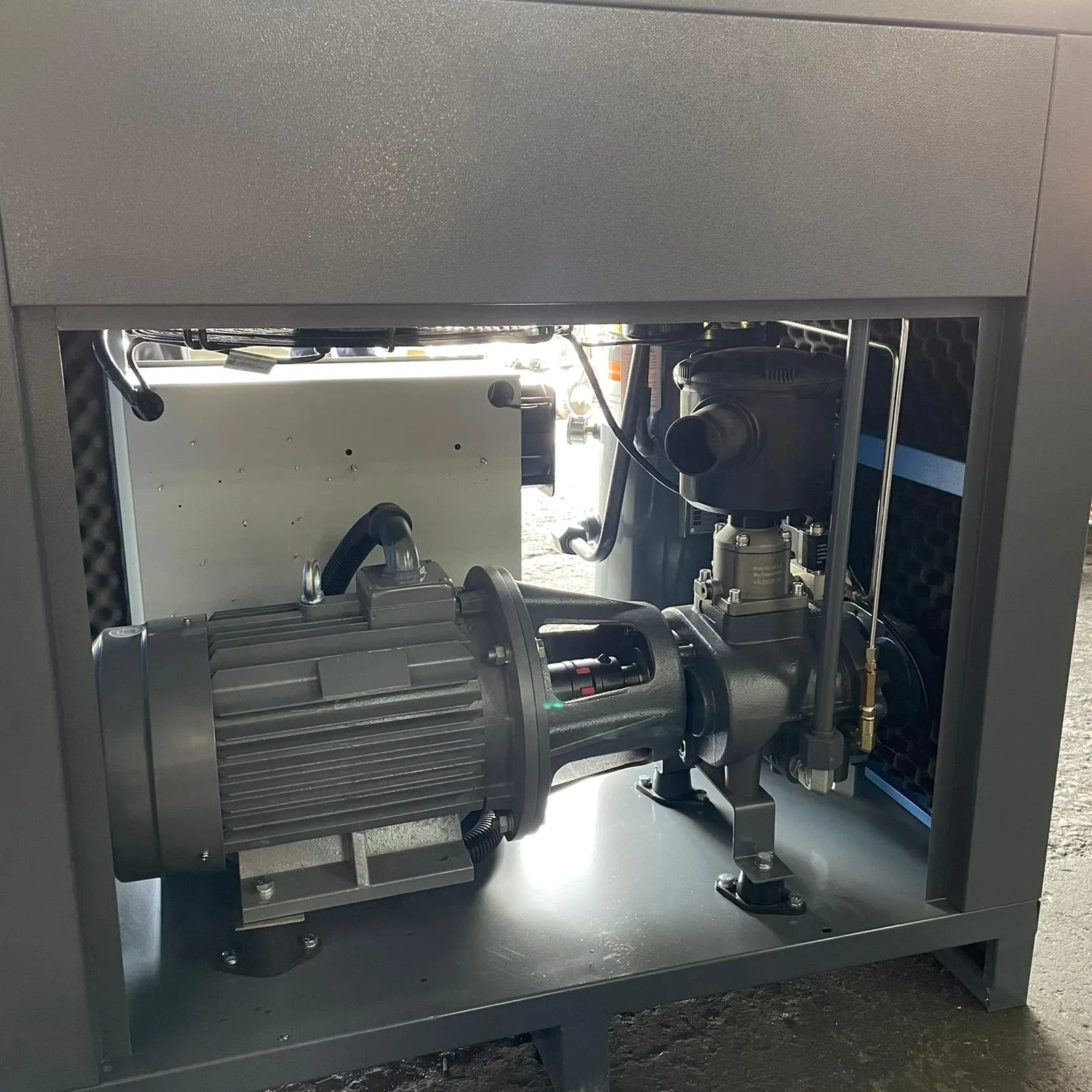

• Motor : TYF15 - 3200 - 132 M . 15 Kw
• Case : AS - 20 Hp
• Minimum Pressure Valve : MPV-20AS

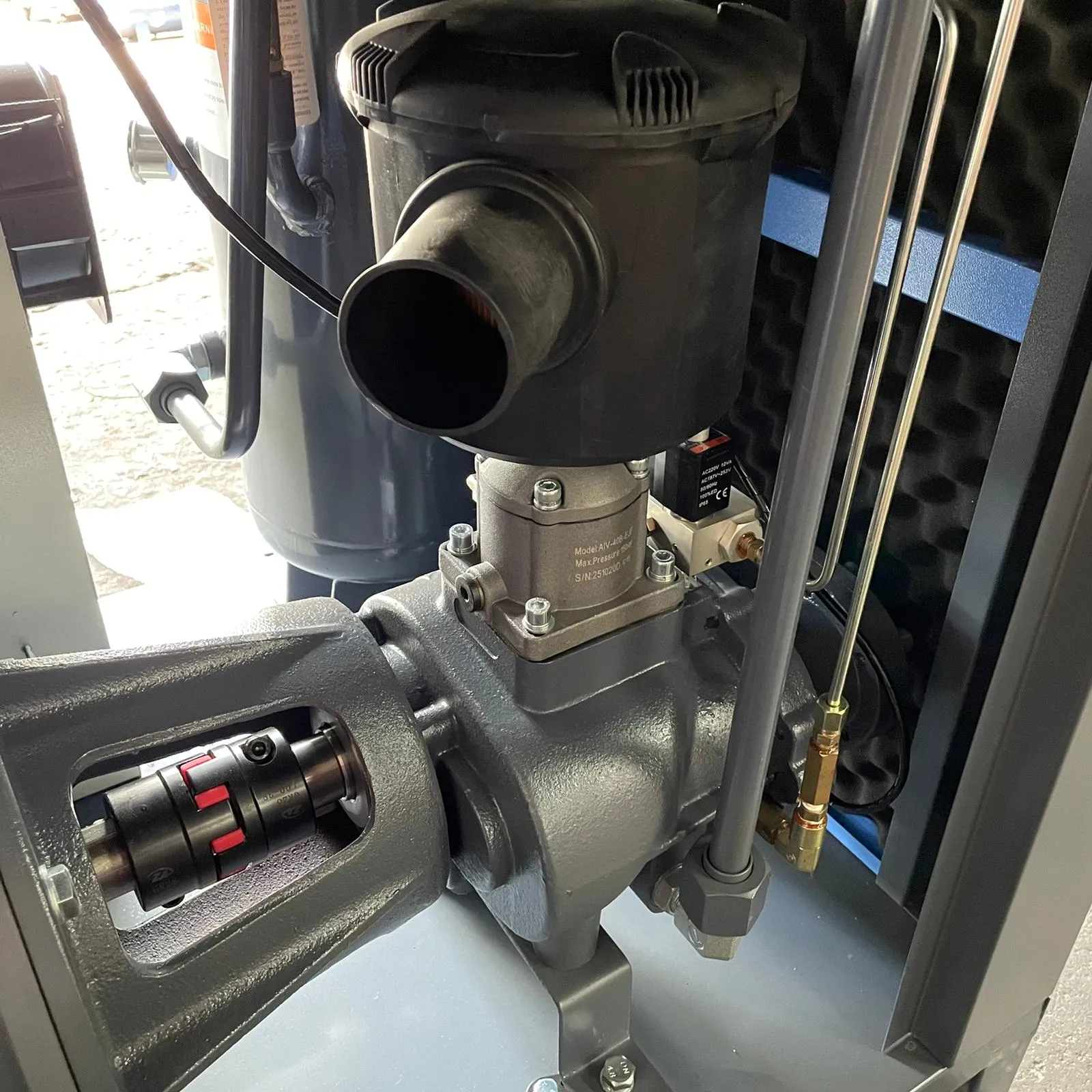

• Intake Valve : AIV-40B-JLM
• Oil Grid : YL-6S
• Oil Filter : W950
• Contractor
• Connection Bucket : YS1010S
• Coupling : GR28 (38 X38)
• Air Filter : 2.5 m3

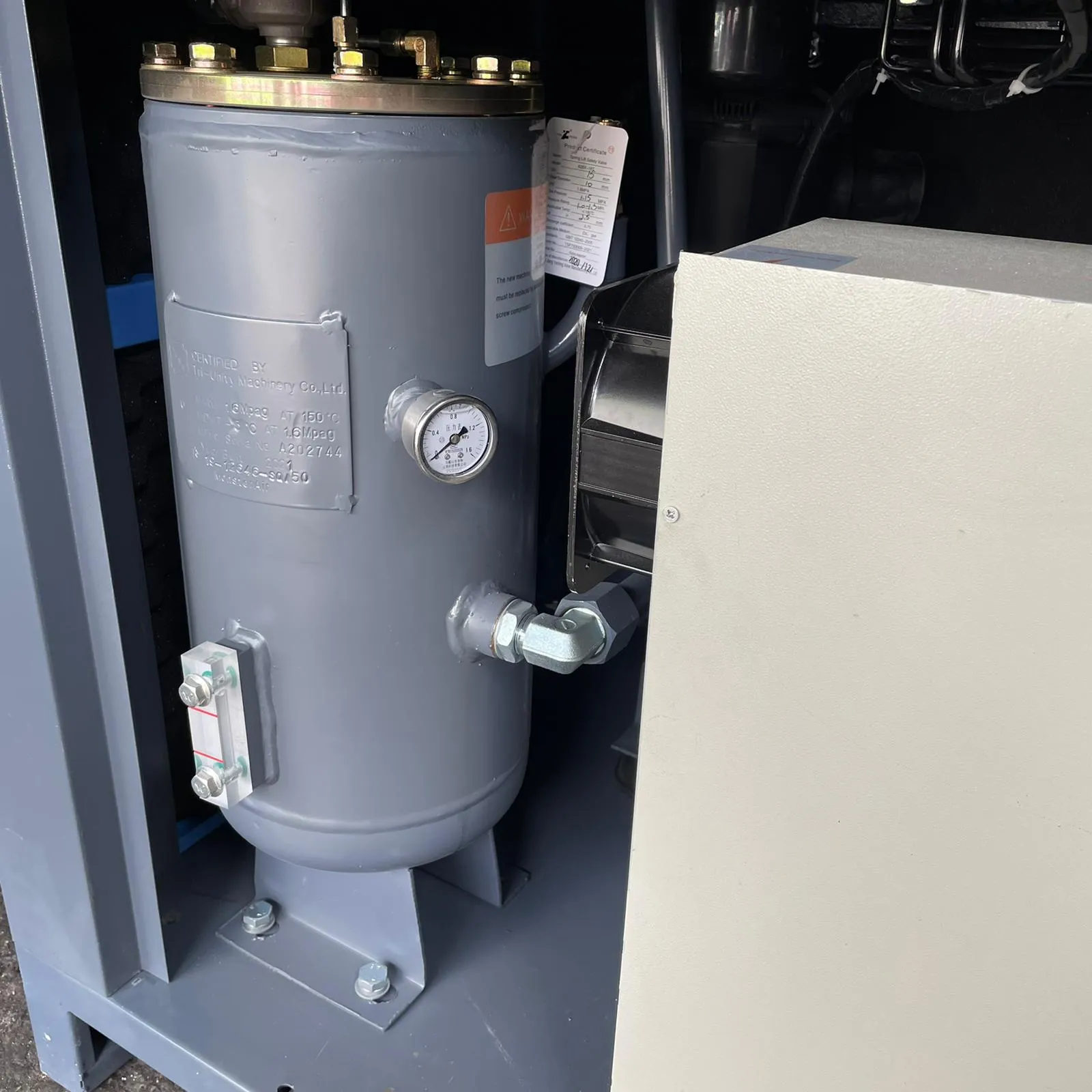

• Oil Separator core : KB8634
• Axial Fan : YWF. A4T-450W-4P
• Oil - Air Cooler : AS1804
• Safety Valve : A28X - 16T - 15 - 1.15
• Pressure Sensor : 0-20 mA . G1/4
• Temperature Sensor : PT100 . M12X1.5
• Controller : MAM6080M
• Frequency Converter : CP6504T-HT

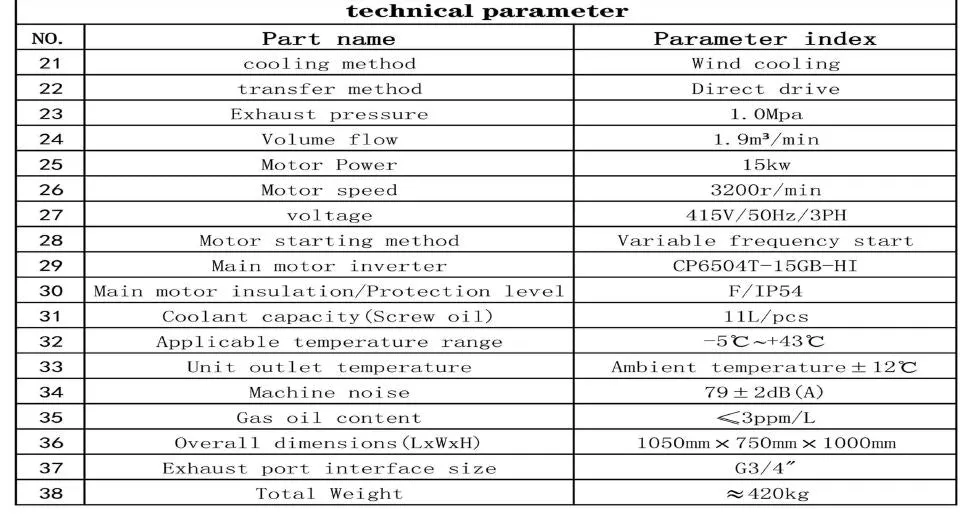

• Technical Parameter
• Part Name : Parameter Index
• Cooling Method : Wind Cooling
• Transfer Method : Direct Drive
• Exhaust Pressure : 1.0 Mpn
• Volume Flow : 1.9 m3/min
• Motor Power : 15 kw
• Motor Speed : 3200r/min
• Voltage : 415 V / 50 Hz / 3 PH
• Motor Starting Method : Variable Frequency Start
• Main Motor Inverter : CP6504T - 15GB - HI
• Main Motor insulation/Protection Level : F / IP54
• Coolant Capacity : 11L/pcs (Screw Oil)
• Applicable Temperature Range : -5C ~ 43C
• Unit Outlet Temperature : Ambient Temperature
• Machine Noise : 79 2dB (A)
• Gas Oil Content : <3ppm / L
• Overall Dimensions : 1050 x 750 x 1000 mm
• Exhaust Port Interface Size : G3/4
• Total Weight : ~~ 420 kg
