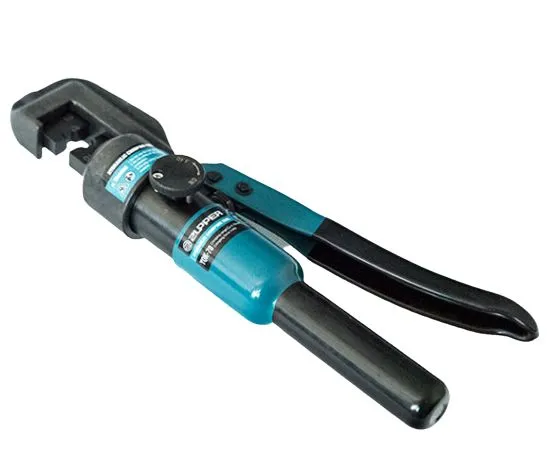

Zupper Hydraulic Crimping Tool | Model : ZUPPER-YQK-70

Features :

• Hydraulic Crimping tool is a professional tool for crimping copper and aluminum lugs with different types. a wide range of crimping dies from 4 mm2 to 1000 mm2 to suit for different size demand . The main crimping shape is hexagonal. special shape design is provided

Specifications :

• Model : YQK-70
• Crimping Range : Cu 4-70 mm2
• Crimping Force : 45 kn
• Crimping Type : Hexagon Crimping
• Stroke : 11 mm
• Length : approx.310 mm
• Weight : approx. 1.80 kg
• Weight : 1.1 kg
• Accessories :

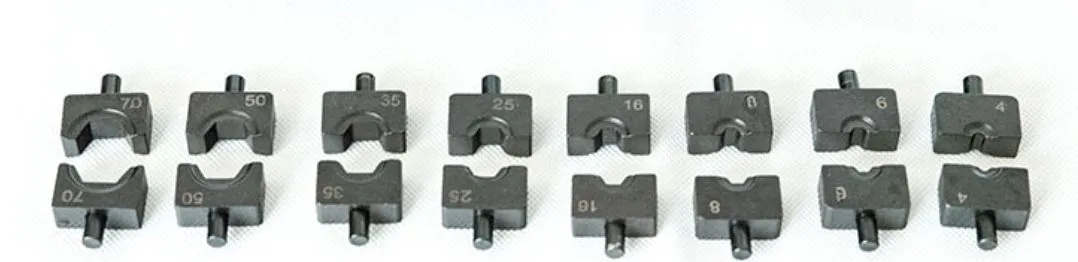

• Crimping Dies : 4.6.8.10.16.25.35.50.70mm2
• Sealing O-Ring : One Set
